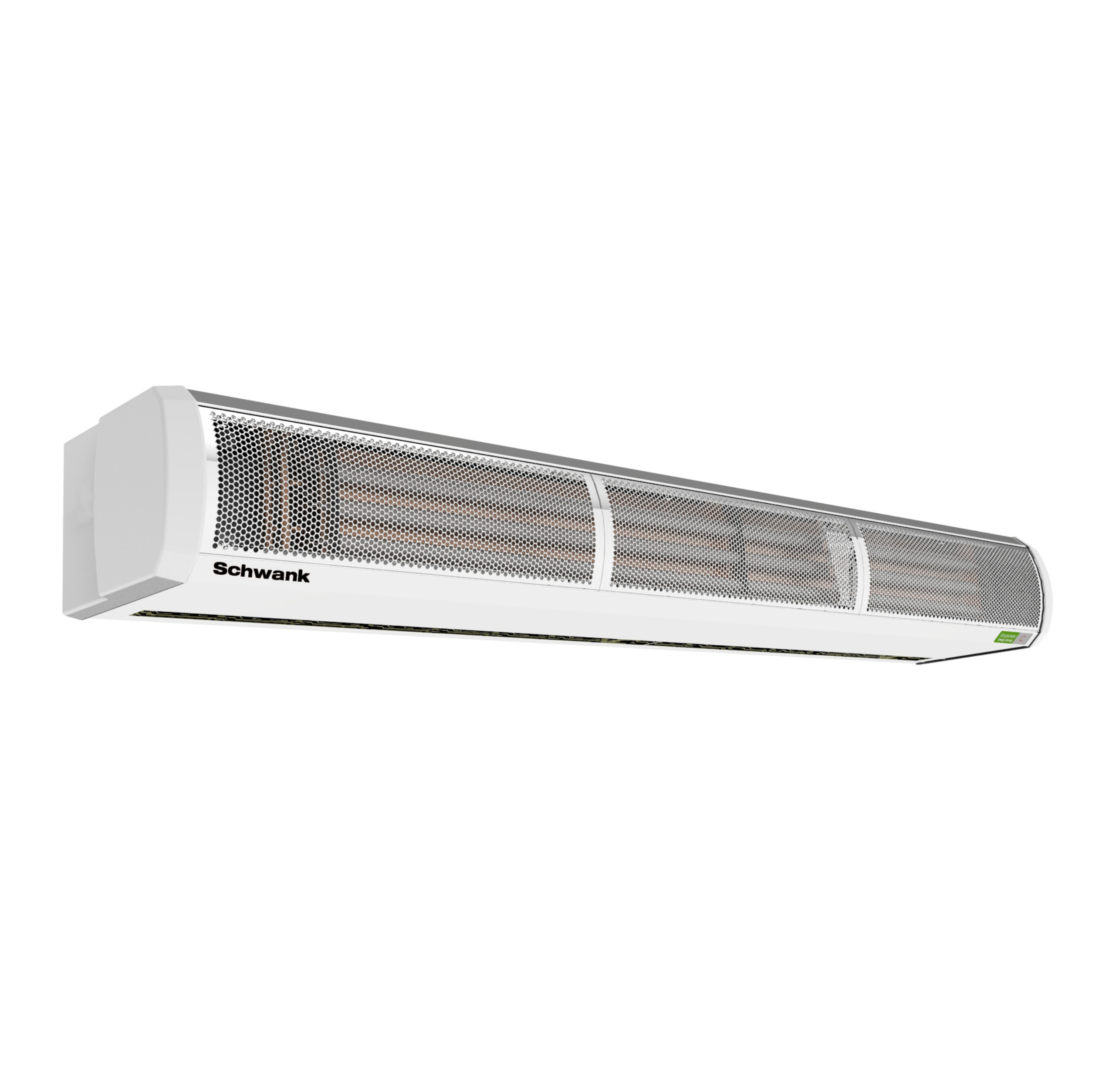

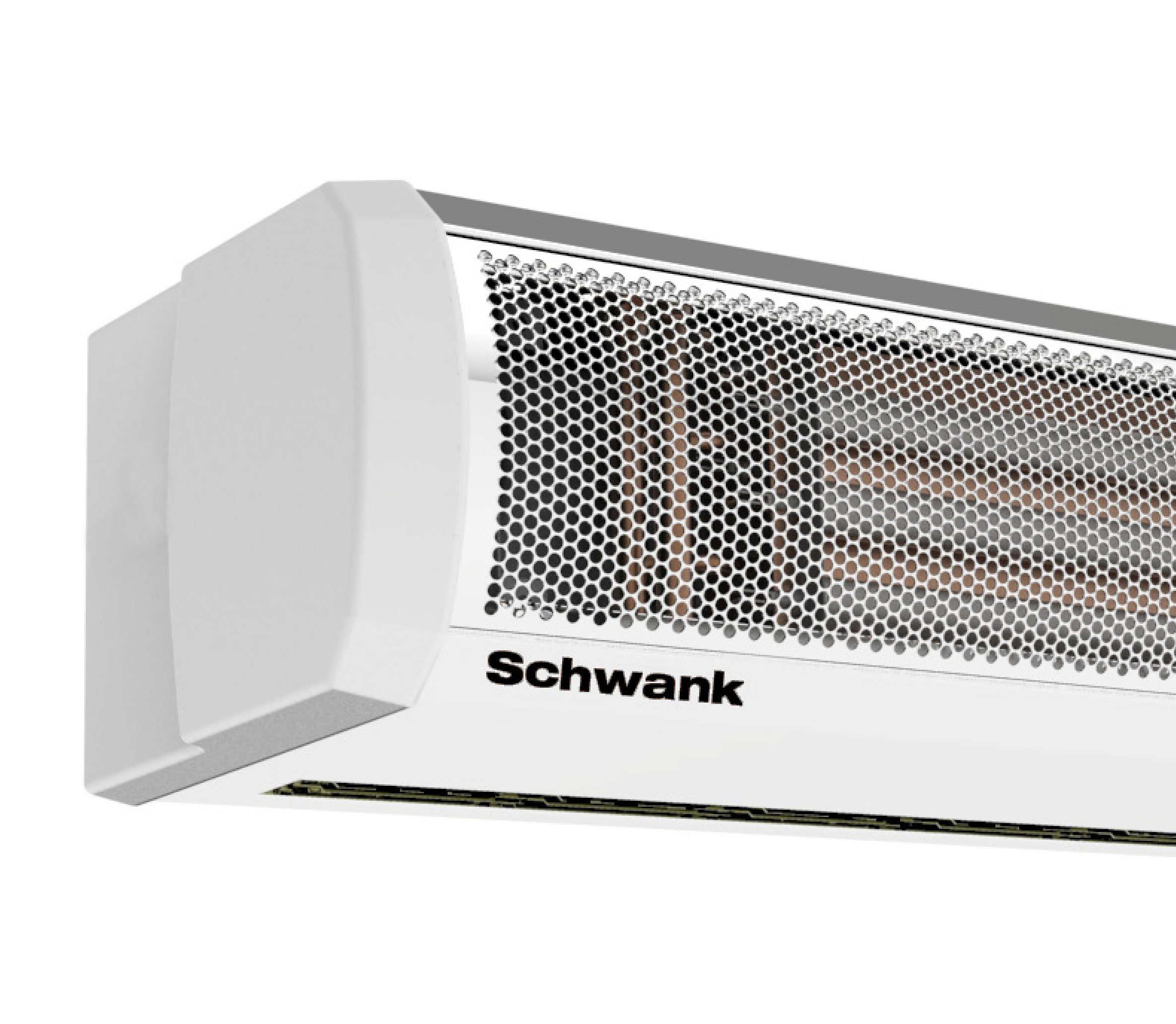

AC-HE93-48 - SchwankAir 2593EH Surface Mount, Electric Heated, 92.5'' Length, 480V, Three Phase
| Model | UPC | Type | Length | Width | Height | Volts |
| 2593EH | AC-HE93-48 | Electric | 92.5" | 12.1" | 18.4" | 480 |
| Phase | Hz | Amps | Kw | btu/h | m3/h | cfm | dB | Max Height | lbs |
| 3 | 60 | 28.9 | 12 / 24 | 50k/81.9k | 2945 | 1735 | 60 / 58 / 54 |
11' 6" | 185 |

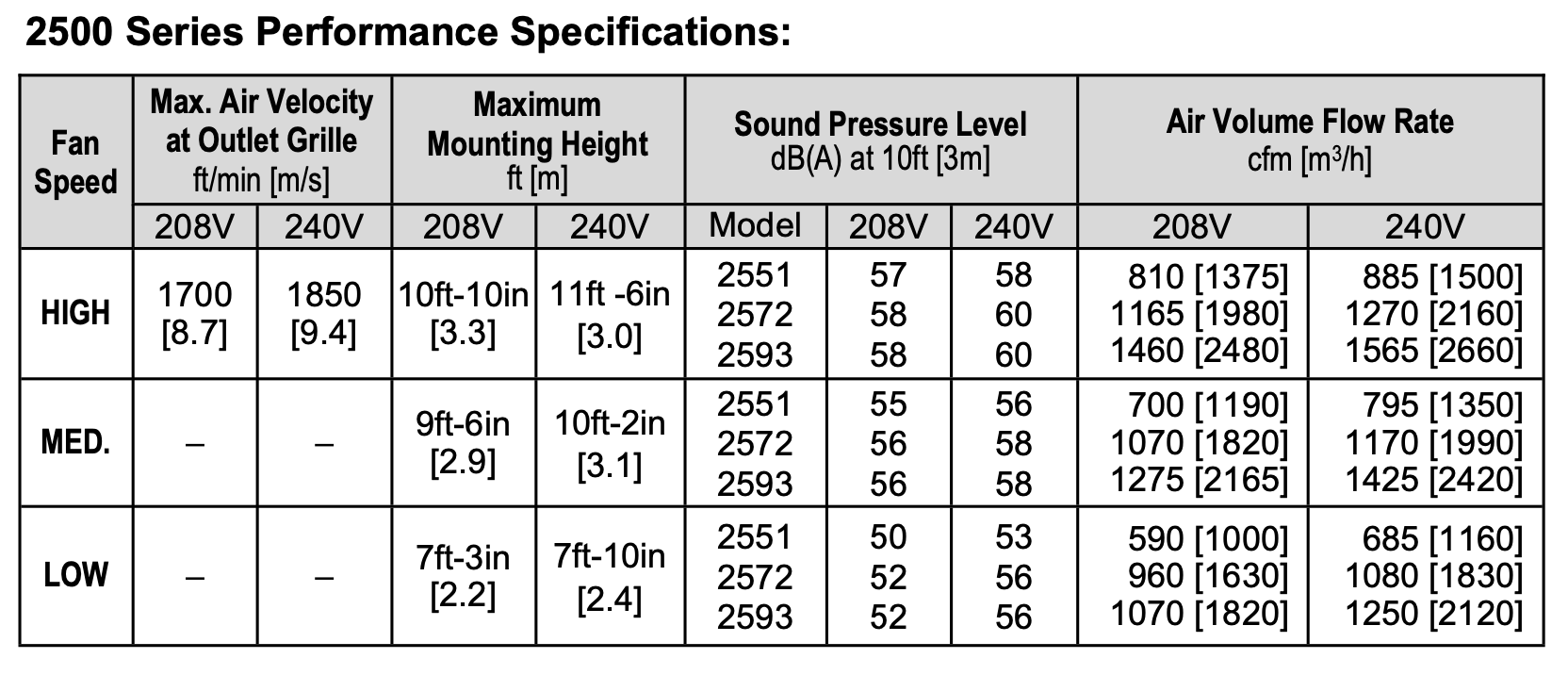

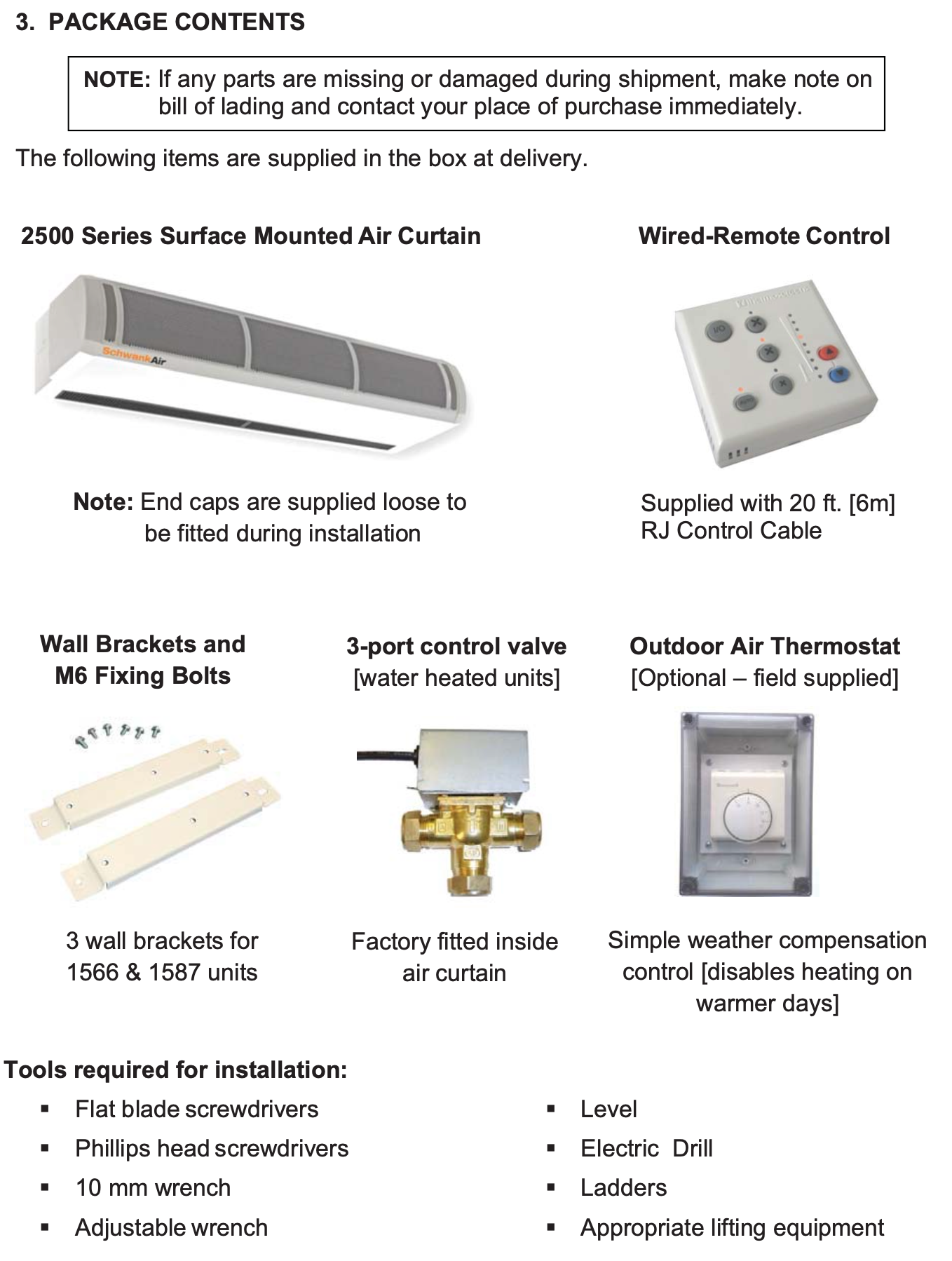

Key Features: Intelligent control with easy integration into your BMS (Building Automation System). SchwankAir wired controller and door switch is included. Wall brackets and ceiling mounting points supplied for surface mount units, or choose an optional recessed air curtain model. Suited for doors up to 11.5′ high (see details in chart below, or refer to the manual). Available in 208V, 240V, 480V, and 600V models. Length options include 45″, 66″, 87″. Available in ambient, electric heated, and hydronic/water (see all 2500 Series Models in chart below).
Supporting Documents
All Models (2500 Series)
| Model | UPC | Type | Length | Volts | Phase |
| 2547R | AC-HA47-23-R | Ambient | 46.7" | 240 | 1 |
| 2547EHR | AC-HE47-20-R | Electric | 46.7" | 208 | 3 |
| 2547EHR | AC-HE47-48-R | Electric | 46.7" | 480 | 3 |
| 2547EHR | AC-HE47-60-R | Electric | 46.7" | 600 | 3 |
| 2547WHR | AC-HW47-23-R | Hydronic | 46.7" | 240 | 1 |
| 2551 | AC-HA51-23 | Ambient | 51.2" | 240 | 1 |
| 2551EH | AC-HE51-20 | Electric | 51.2" | 208 | 3 |
| 2551EH | AC-HE51-48 | Electric | 51.2" | 480 | 3 |
| 2551EH | AC-HE51-60 | Electric | 51.2" | 600 | 3 |
| 2551WH | AC-HW51-23 | Hydronic | 51.2" | 240 | 1 |
| 2567R | AC-HA67-23-R | Ambient | 67.3" | 240 | 1 |
| 2567EHR | AC-HE67-20-R | Electric | 67.3" | 208 | 3 |
| 2567EHR | AC-HE67-48-R | Electric | 67.3" | 480 | 3 |
| 2567EHR | AC-HE67-60-R | Electric | 67.3" | 600 | 3 |
| 2567WHR | AC-HW67-23-R | Hydronic | 67.3" | 240 | 1 |
| 2572 | AC-HA72-23 | Ambient | 71.9" | 240 | 1 |
| 2572EH | AC-HE72-20 | Electric | 71.9" | 208 | 3 |
| 2572EH | AC-HE72-48 | Electric | 71.9" | 480 | 3 |
| 2572EH | AC-HE72-60 | Electric | 71.9" | 600 | 3 |
| 2572WH | AC-HW72-23 | Hydronic | 71.9" | 240 | 1 |
| 2588R | AC-HA88-23-R | Ambient | 88" | 240 | 1 |
| 2588EHR | AC-HE88-20-R | Electric | 88" | 208 | 3 |
| 2588EHR | AC-HE88-48-R | Electric | 88" | 480 | 3 |
| 2588EHR | AC-HE88-60-R | Electric | 88" | 600 | 3 |
| 2588WHR | AC-HW88-23-R | Hydronic | 88" | 240 | 1 |
| 2593 | AC-HA93-23 | Ambient | 92.5" | 240 | 1 |
| 2593EH | AC-HE93-20 | Electric | 92.5" | 208 | 3 |
| 2593EH | AC-HE93-48 | Electric | 92.5" | 480 | 3 |
| 2593EH | AC-HE93-60 | Electric | 92.5" | 600 | 3 |
| 2593WH | AC-HW93-23 | Hydronic | 92.5" | 240 | 1 |
