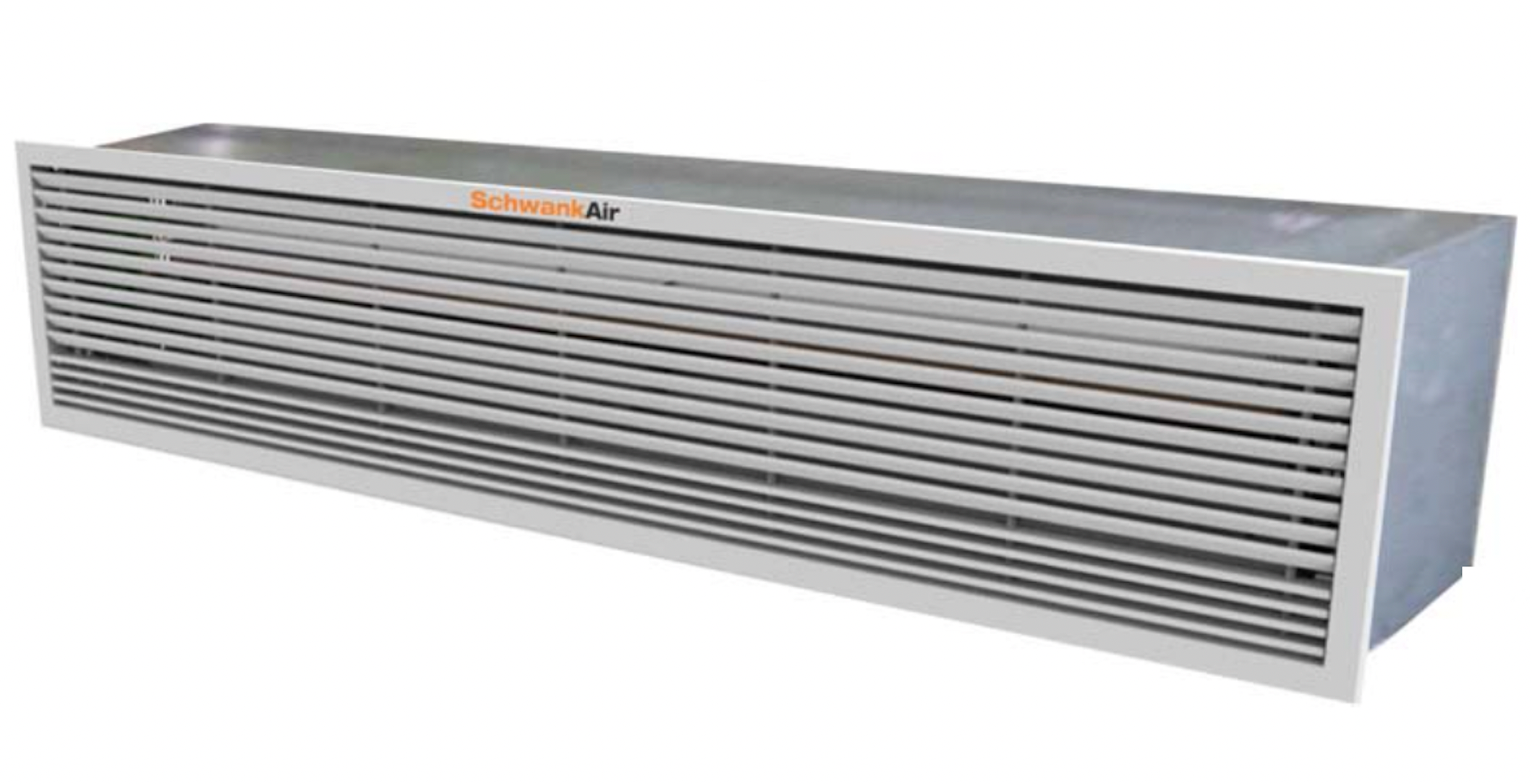

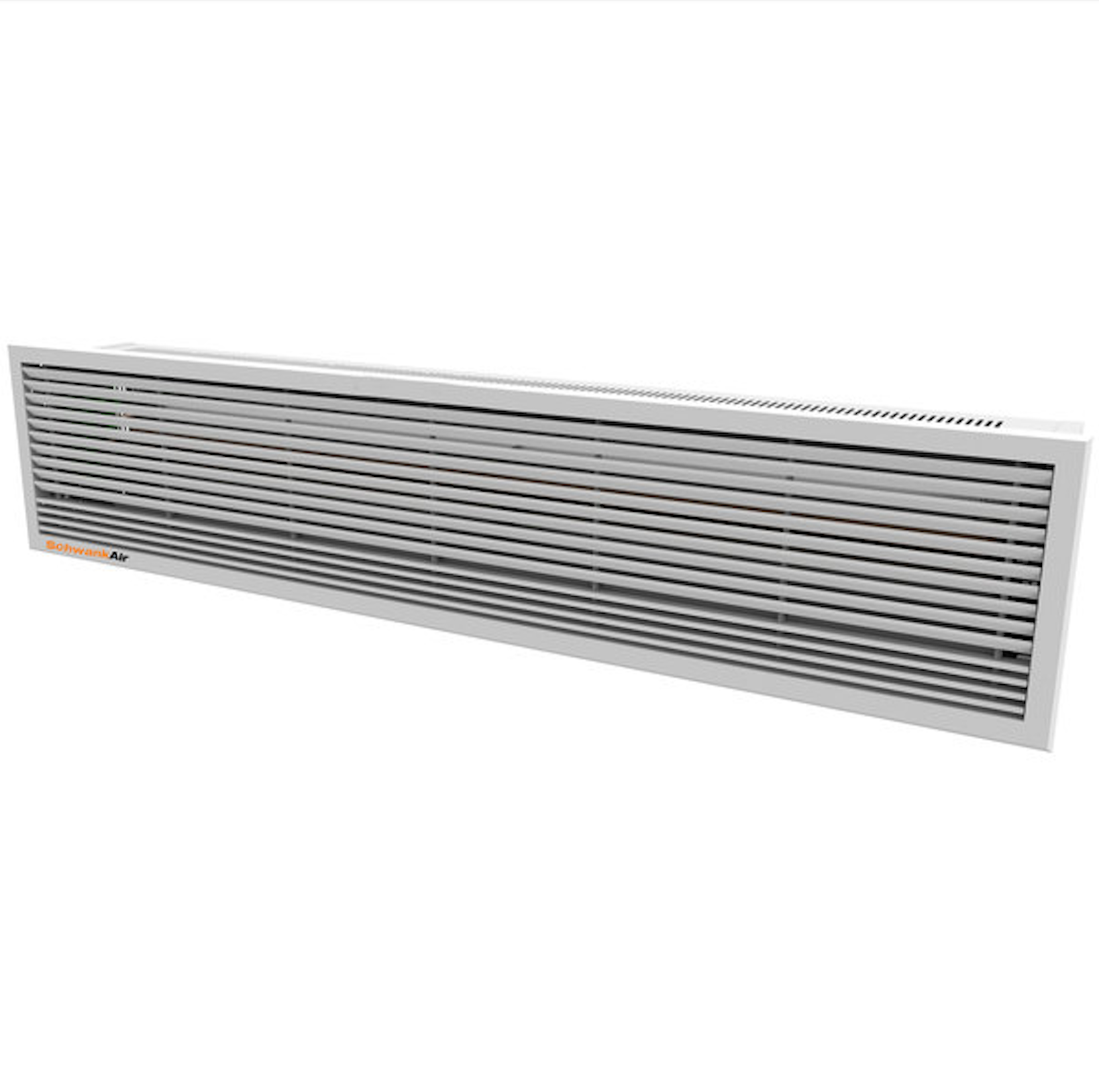

AC-CE63-48-R - SchwankAir 2063EHR Recessed Mount, Electric Heated, 63'' Length, 480V, Three Phase

$7,324.00 CAD

Model	UPC	Type	Length	Width	Height	Volts
2063EHR	AC-CE63-48-R	Electric	63"	8"	11"	480

Phase	Hz	Amps	Kw	btu/h	m3/h	cfm	dB	Max Height	lbs
3	60	14.5	6 / 12	20.5k/50k	1800	1060	55	9'	60

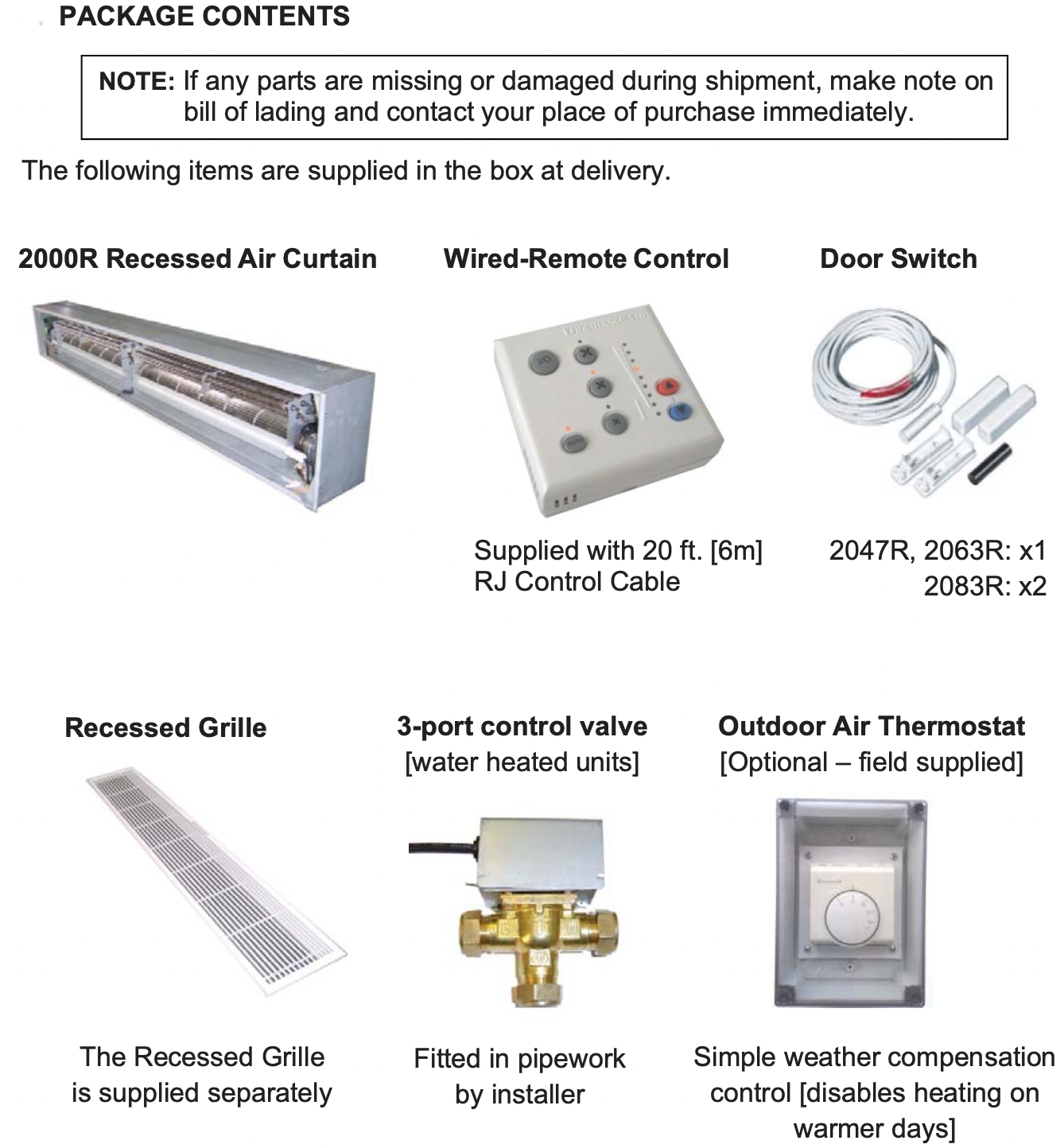

Key Features: Intelligent control with easy integration with BMS. Wired controller and door switch are included. Easy to install, with wall brackets and ceiling mounting points supplied for surface mount units, or choose an optional recessed air curtain model. Available in 208V, 240V, 480V, and 600V; ambient, electric heated, and hydronic; and length options include 45″, 66″, 87″ (see all 2000 Series Models in chart below).

Supporting Documents

Brochure

Manual (Recessed Mount Models)

Submittal (Recessed Mount Models)

All Models (2000 Series)

Model	UPC	Type	Length (")	Volts	Phase
2045	AC-CA45-23	Ambient	45	240	1
2045EH	AC-CE45-20	Electric	45	208	3
2045EH	AC-CE45-48	Electric	45	480	3
2045EH	AC-CE45-60	Electric	45	600	3
2045WH	AC-CW45-23	Hydronic	45	240	1
2047R	AC-CA47-23-R	Ambient	47	240	1
2047EHR	AC-CE47-20-R	Electric	47	208	3
2047EHR	AC-CE47-48-R	Electric	47	480	3
2047EHR	AC-CE47-60-R	Electric	47	600	3
2047WHR	AC-CW47-23-R	Hydronic	47	240	1
2063R	AC-CA63-23-R	Ambient	63	240	1
2063EHR	AC-CE63-20-R	Electric	63	208	3
2063EHR	AC-CE63-48-R	Electric	63	480	3
2063EHR	AC-CE63-60-R	Electric	63	600	3
2063WHR	AC-CW63-23-R	Hydronic	63	240	1
2066	AC-CA66-23	Ambient	66	240	1
2066EH	AC-CE66-20	Electric	66	208	3
2066EH	AC-CE66-48	Electric	66	480	3
2066EH	AC-CE66-60	Electric	66	600	3
2066WH	AC-CW66-23	Hydronic	66	240	1
2083R	AC-CA83-23-R	Ambient	83	240	1
2083EHR	AC-CE83-20-R	Electric	83	208	3
2083EHR	AC-CE83-48-R	Electric	83	480	3
2083EHR	AC-CE83-60-R	Electric	83	600	3
2083WHR	AC-CW83-23-R	Hydronic	83	240	1
2087	AC-CA87-23	Ambient	87	240	1
2087EH	AC-CE87-20	Electric	87	208	3
2087EH	AC-CE87-48	Electric	87	480	3
2087EH	AC-CE87-60	Electric	87	600	3
2087WH	AC-CW87-23	Hydronic	87	240	1
