IDC12-1036AA - 36", Ambient Air, 120V, Single Phase, Industrial Direct Drive 12 Series

SKU: IDC12-1036AA
Precio de oferta$2,105.00 USD

Discount Price Shown in Cart (25% OFF)

IDC12-1036AA - 36", Ambient, 120V, Single Phase

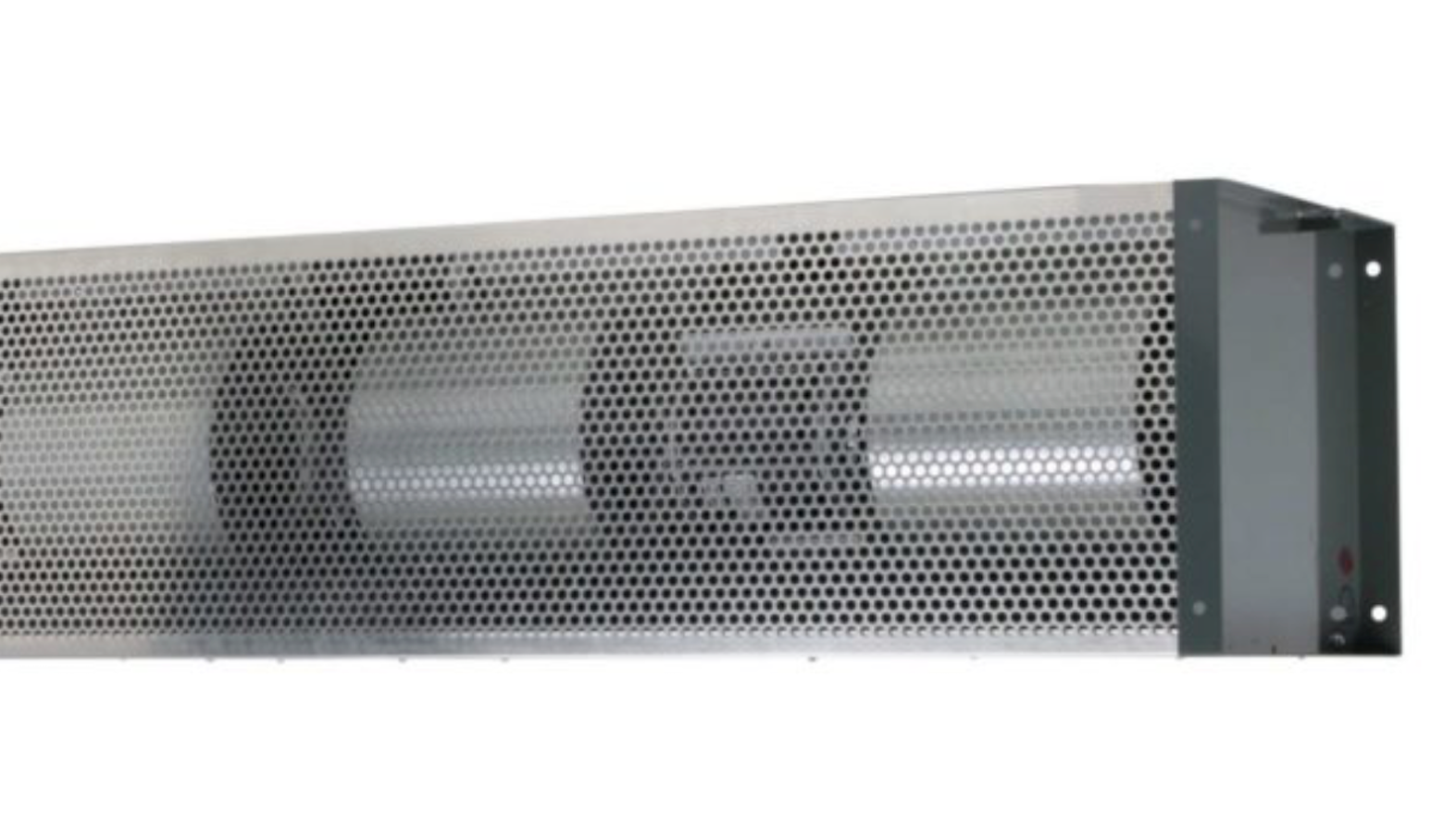

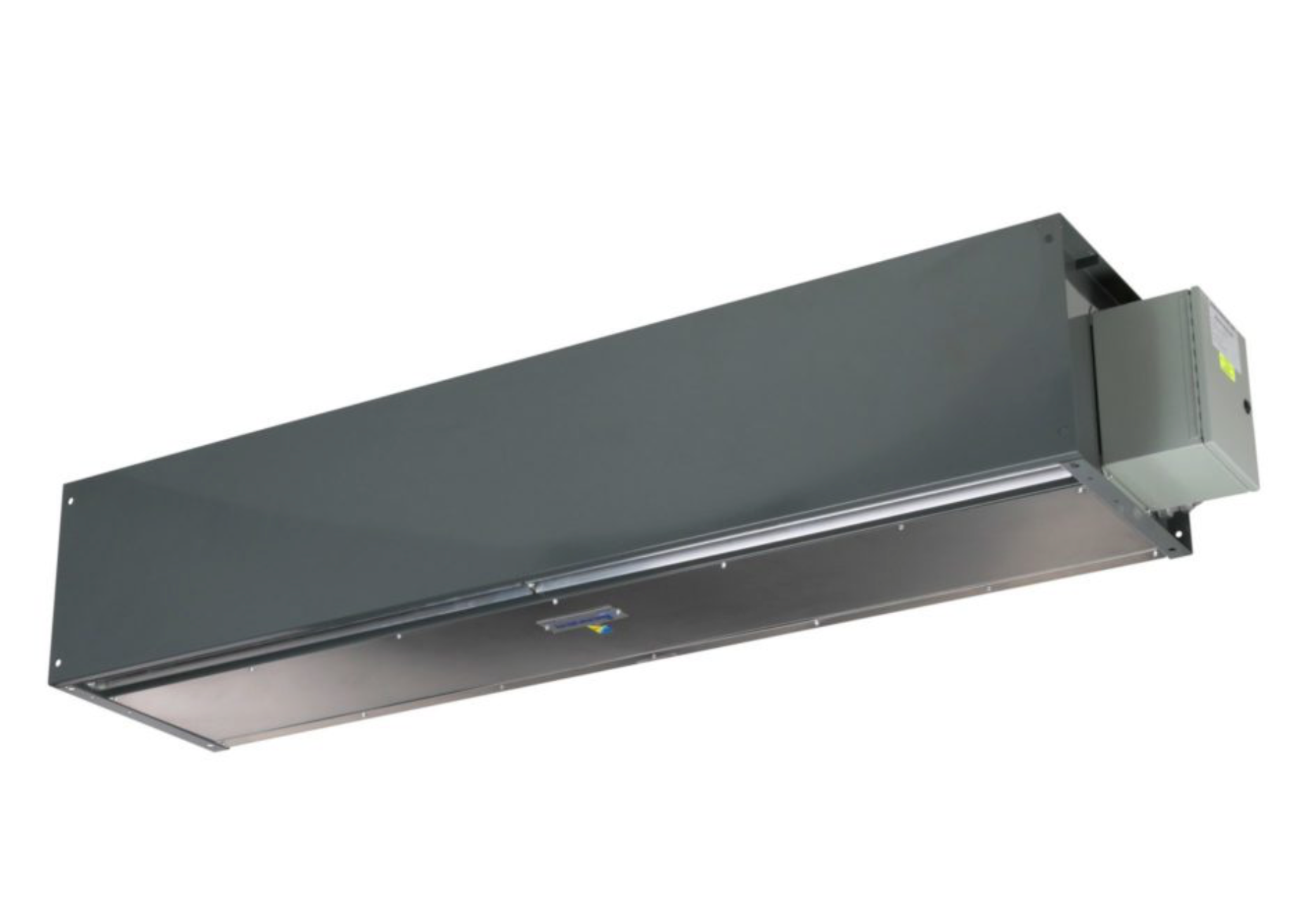

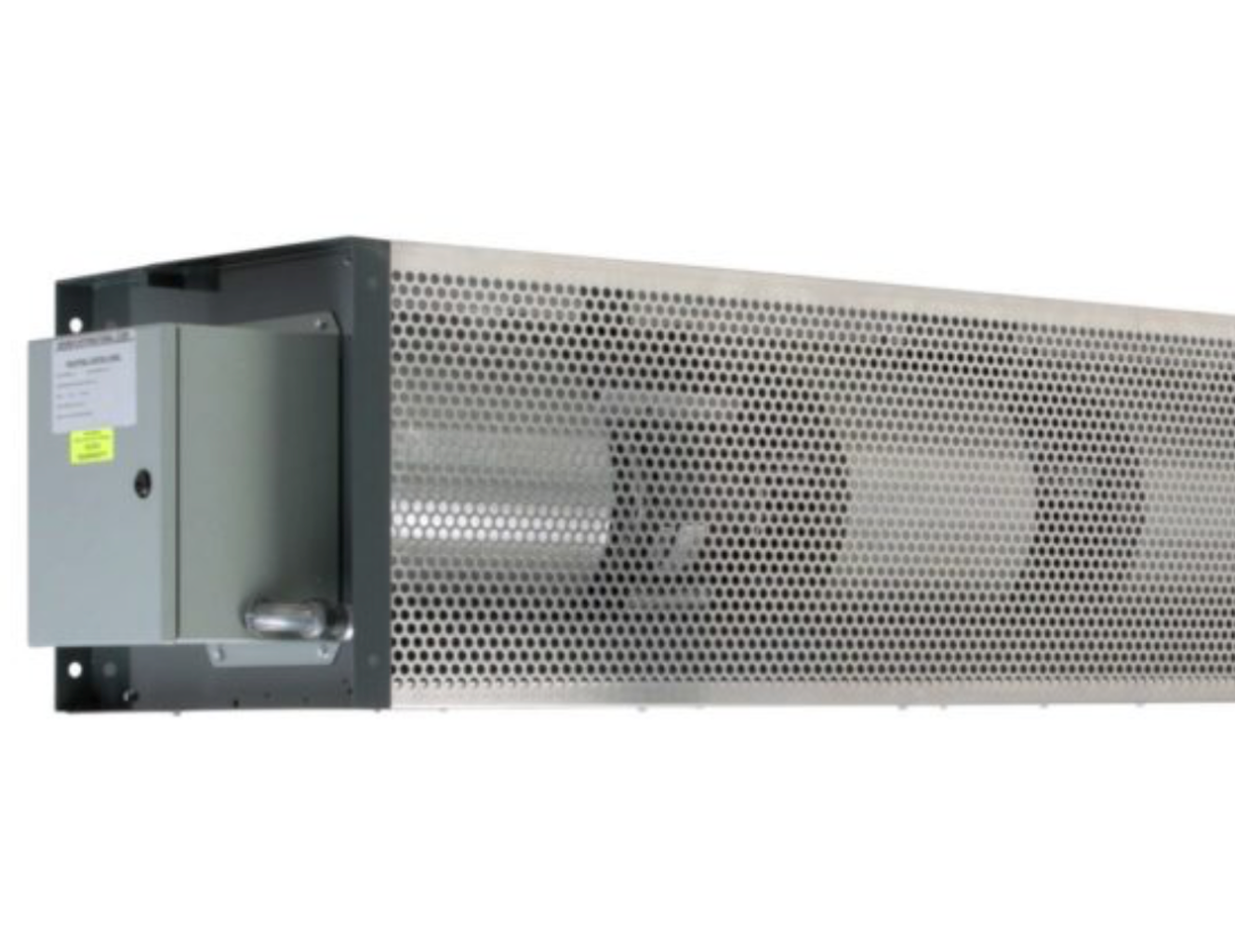

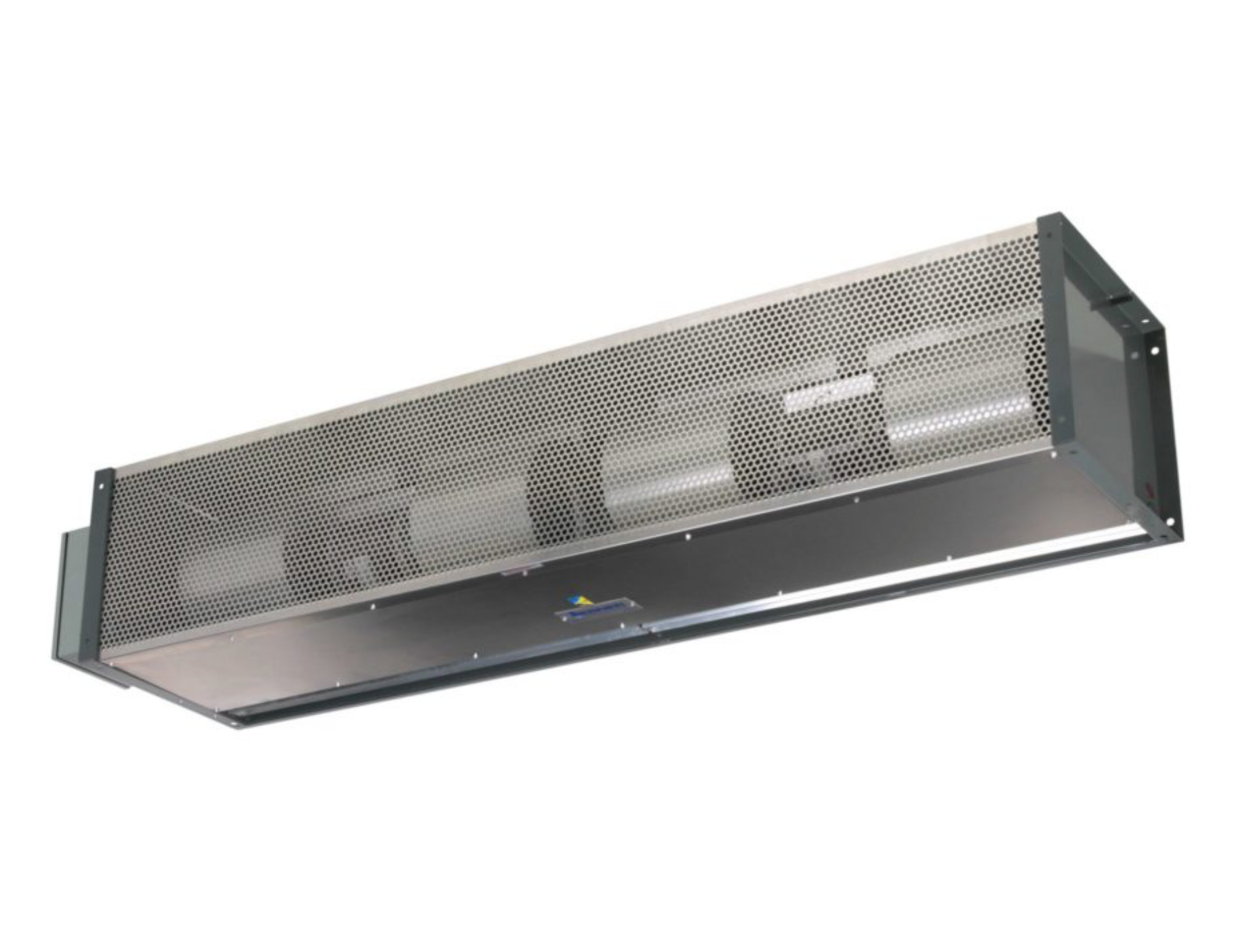

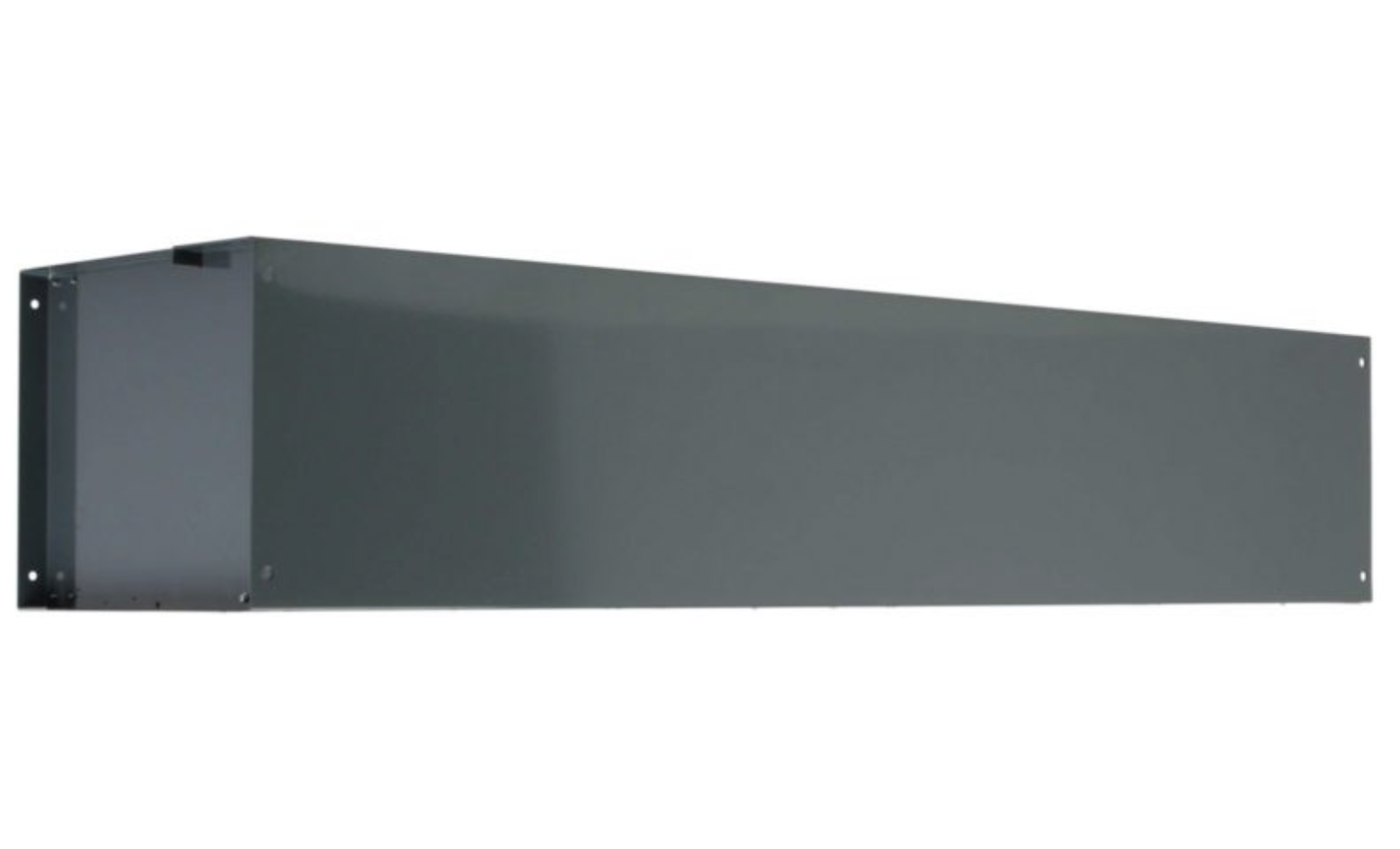

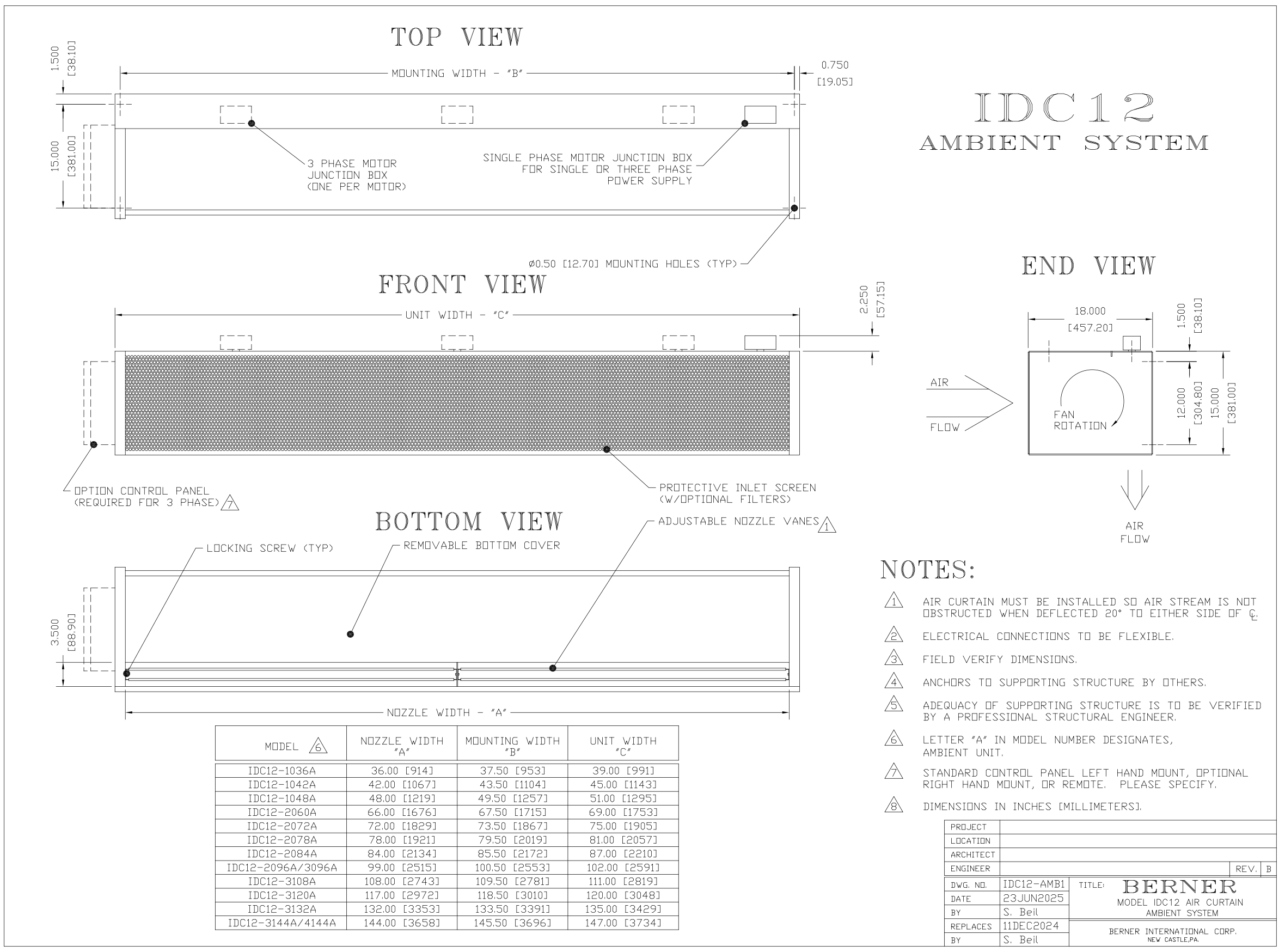

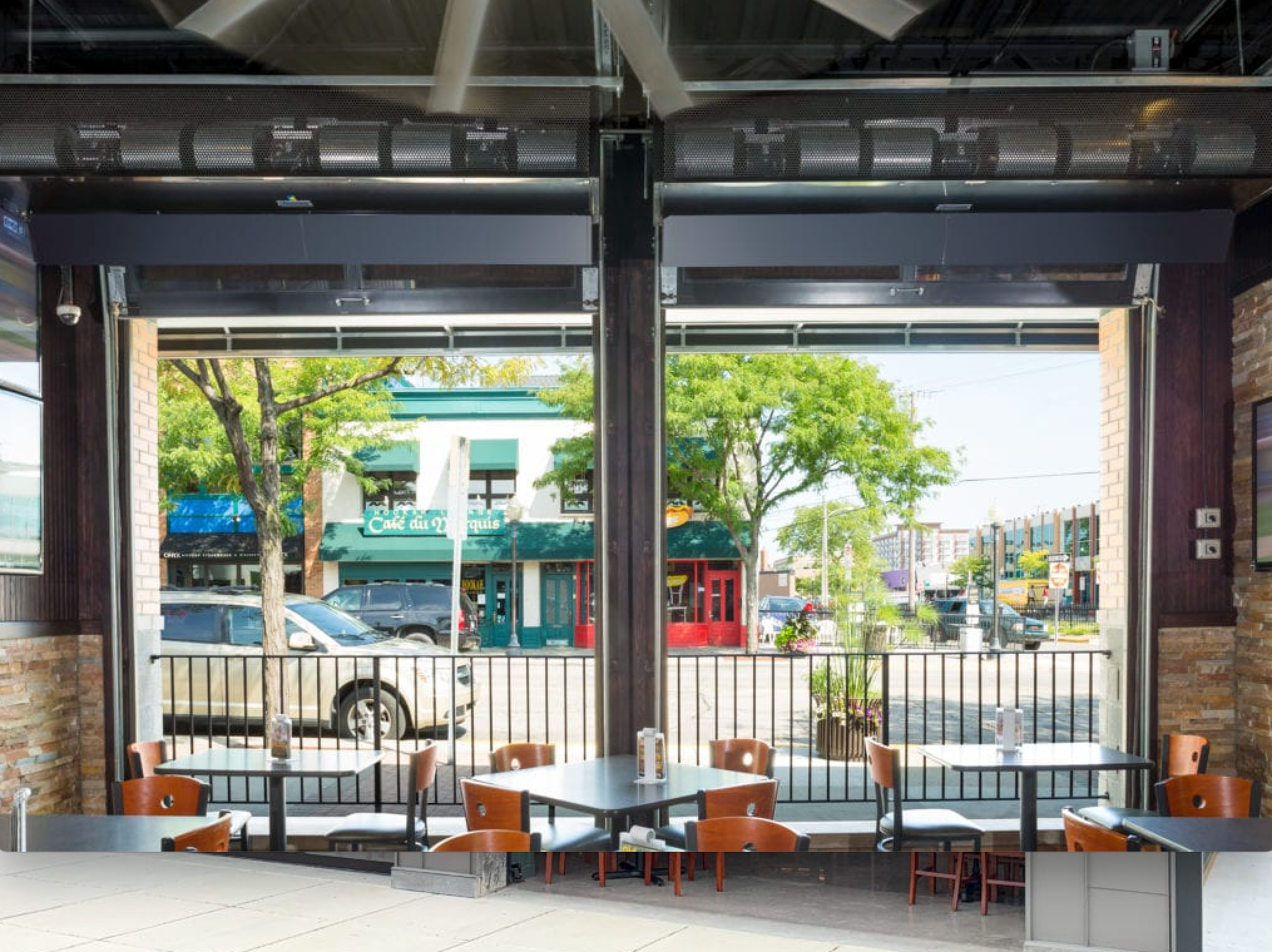

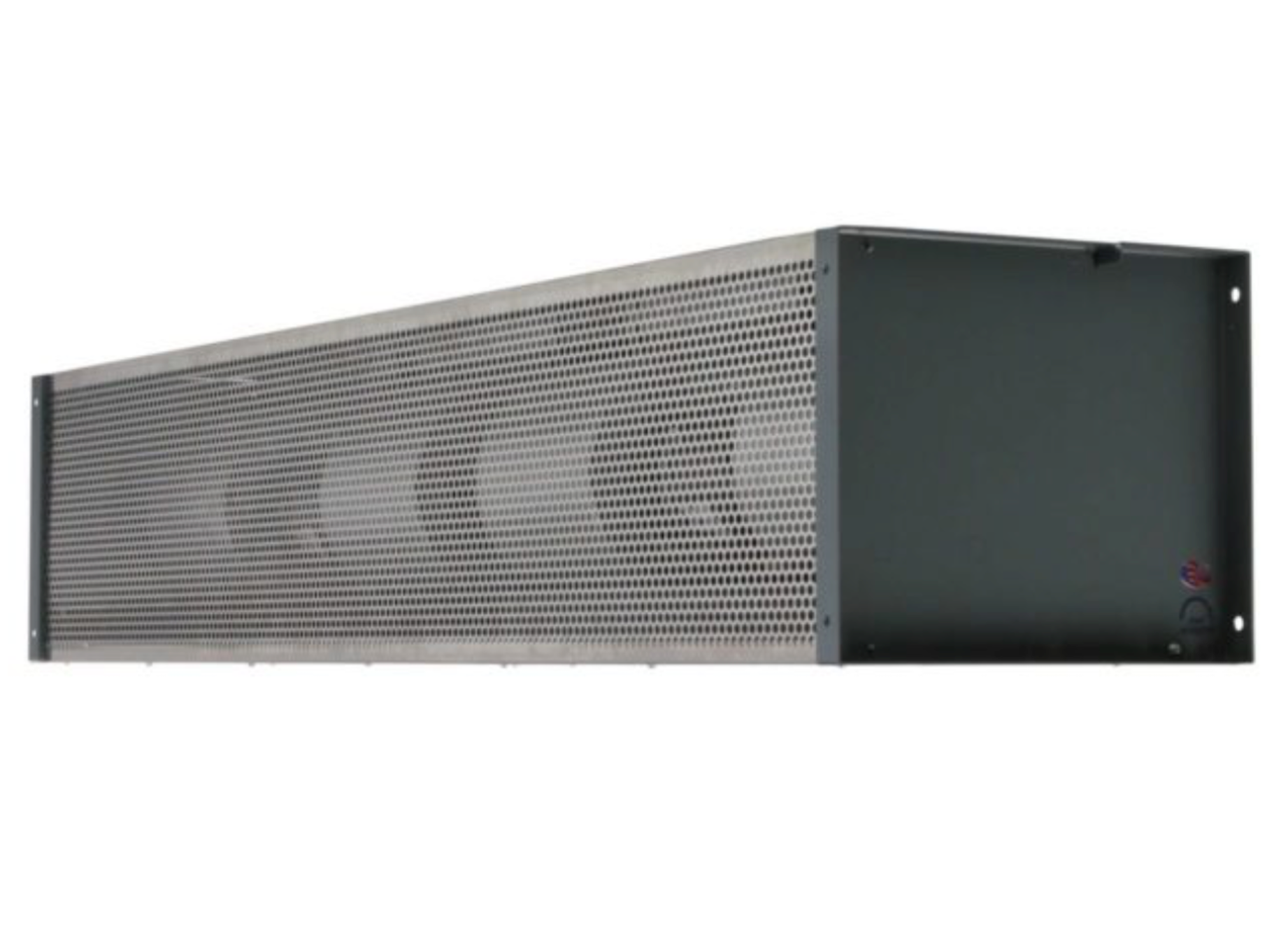

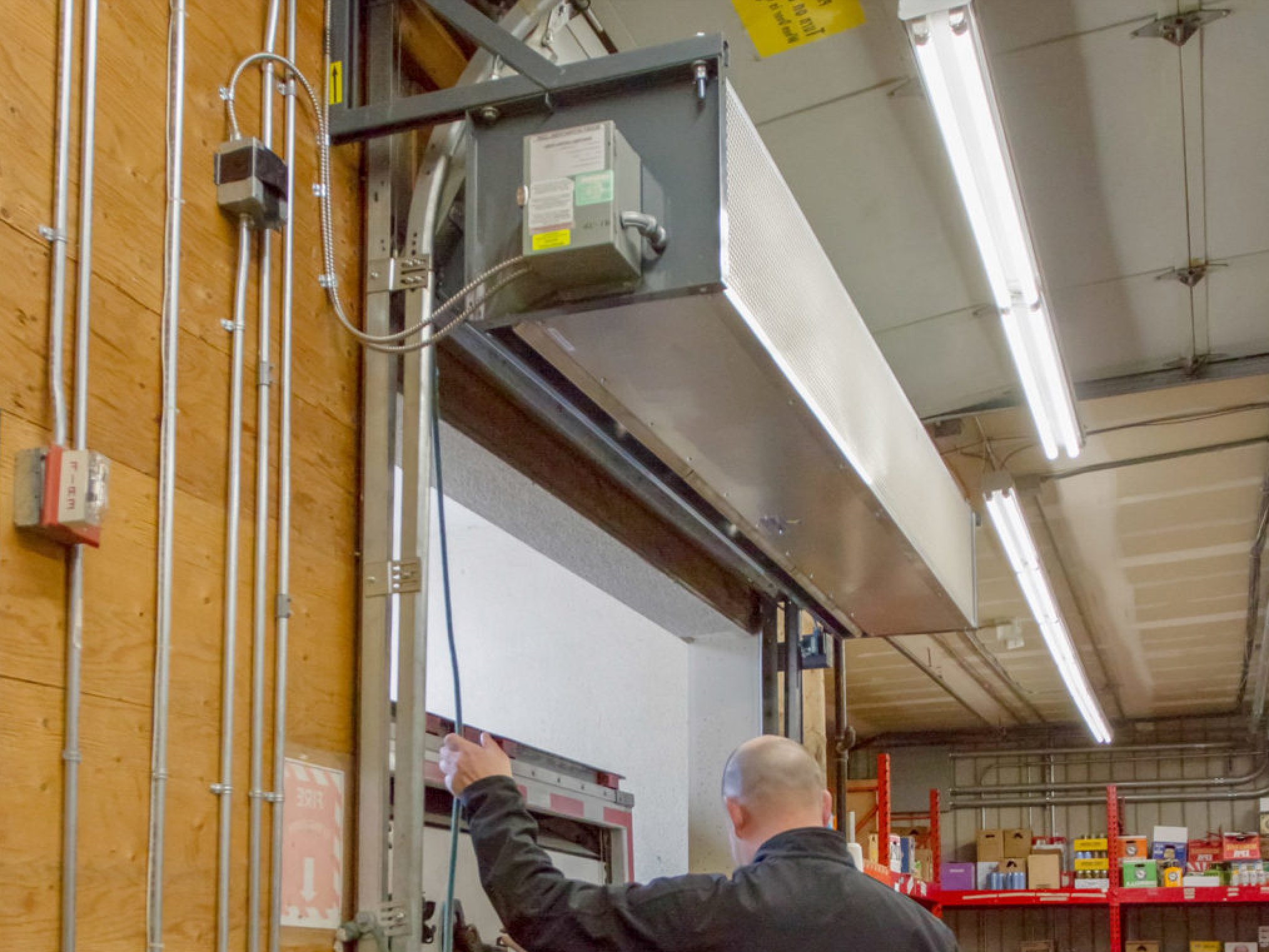

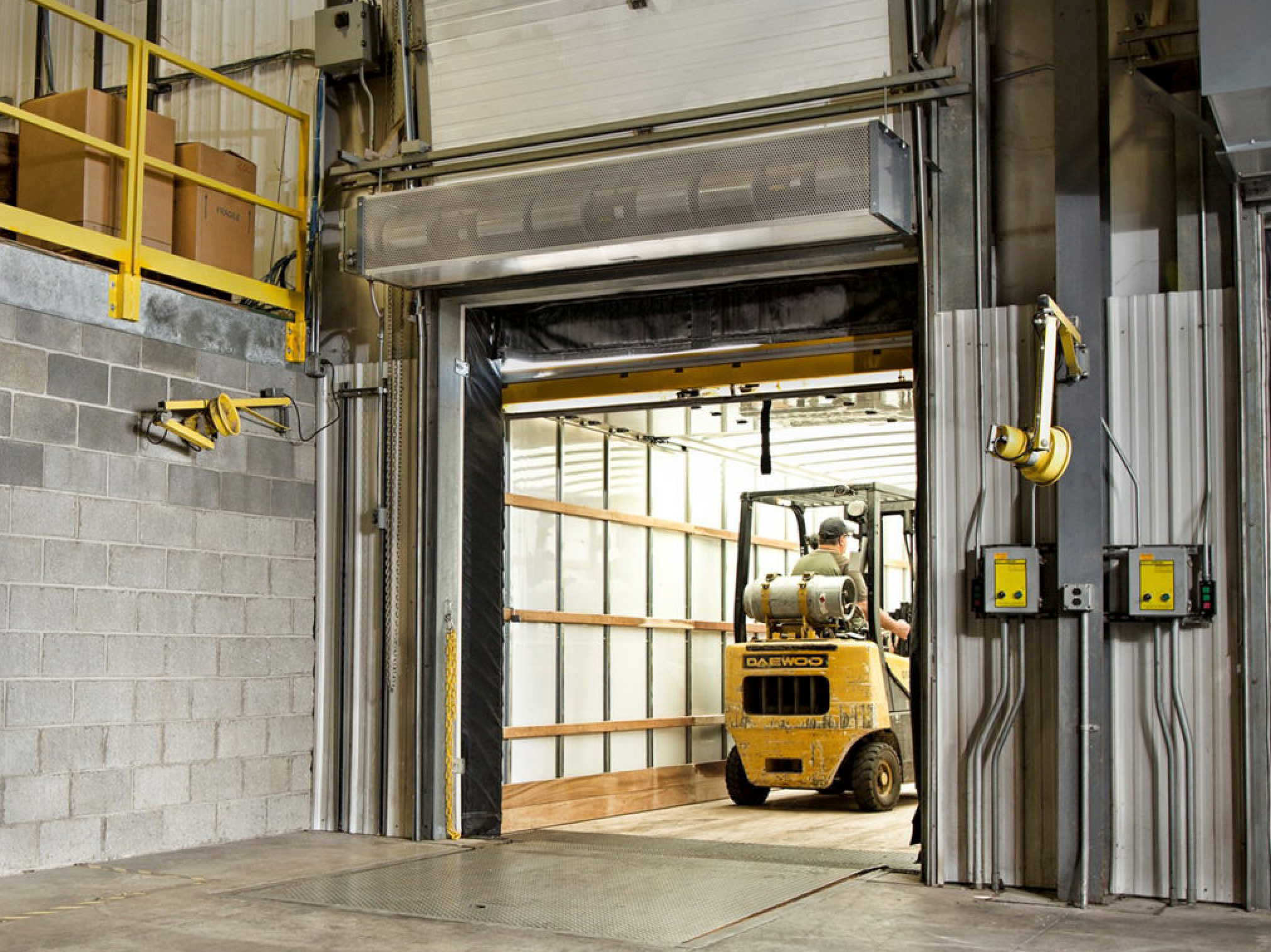

For wall and top mounting at heights up to 12′ (environmental separation) and 10′ (insect control). The Berner Industrial Direct Drive 12 Ambient Air Curtain is AMCA certified, measures 15″ high by 18″ deep, with all-welded construction, a gray powder-coated exterior, and mill aluminum inlet panel. Used to save energy and keep temperatures stable, and flying insects out when the doors are open. Recommended for shipping and receiving doors, garage doors, cold storage doors, baggage doors, etc. Simple to install, operate, and maintain. Made in U.S.A.

SUPPORTING DOCUMENTS

SINGLE PHASE AMBIENT* CONFIGURATIONS

  • 36" --- 120V, 208V, 240V
  • 42" --- 120V, 208V, 240V
  • 48" --- 120V, 208V, 240V
  • 60" --- 120V, 208V, 240V
  • 72" --- 120V, 208V, 240V
  • 78" --- 120V, 208V, 240V
  • 84" --- 120V, 208V, 240V
  • 96" --- 120V, 208V, 240V (2 Motors)
  • 96" --- 120V, 208V, 240V (3 Motors)
  • 108" --- 120V, 208V, 240V
  • 120" --- 120V, 208V, 240V
  • 132" --- 120V, 208V, 240V
  • 144" --- 120V, 208V, 240V

THREE PHASE AMBIENT* CONFIGURATIONS

  • 36" --- 208V, 240V, 480V, 600V
  • 42" --- 208V, 240V, 480V, 600V
  • 48" --- 208V, 240V, 480V, 600V
  • 60" --- 208V, 240V, 480V, 600V
  • 72" --- 208V, 240V, 480V, 600V
  • 78" --- 208V, 240V, 480V, 600V
  • 84" --- 208V, 240V, 480V, 600V
  • 96" --- 208V, 240V, 480V, 600V (2 Motors)
  • 96" --- 208V, 240V, 480V, 600V (3 Motors)
  • 108" --- 208V, 240V, 480V, 600V
  • 120" --- 208V, 240V, 480V, 600V
  • 132" --- 208V, 240V, 480V, 600V
  • 144" --- 208V, 240V, 480V, 600V

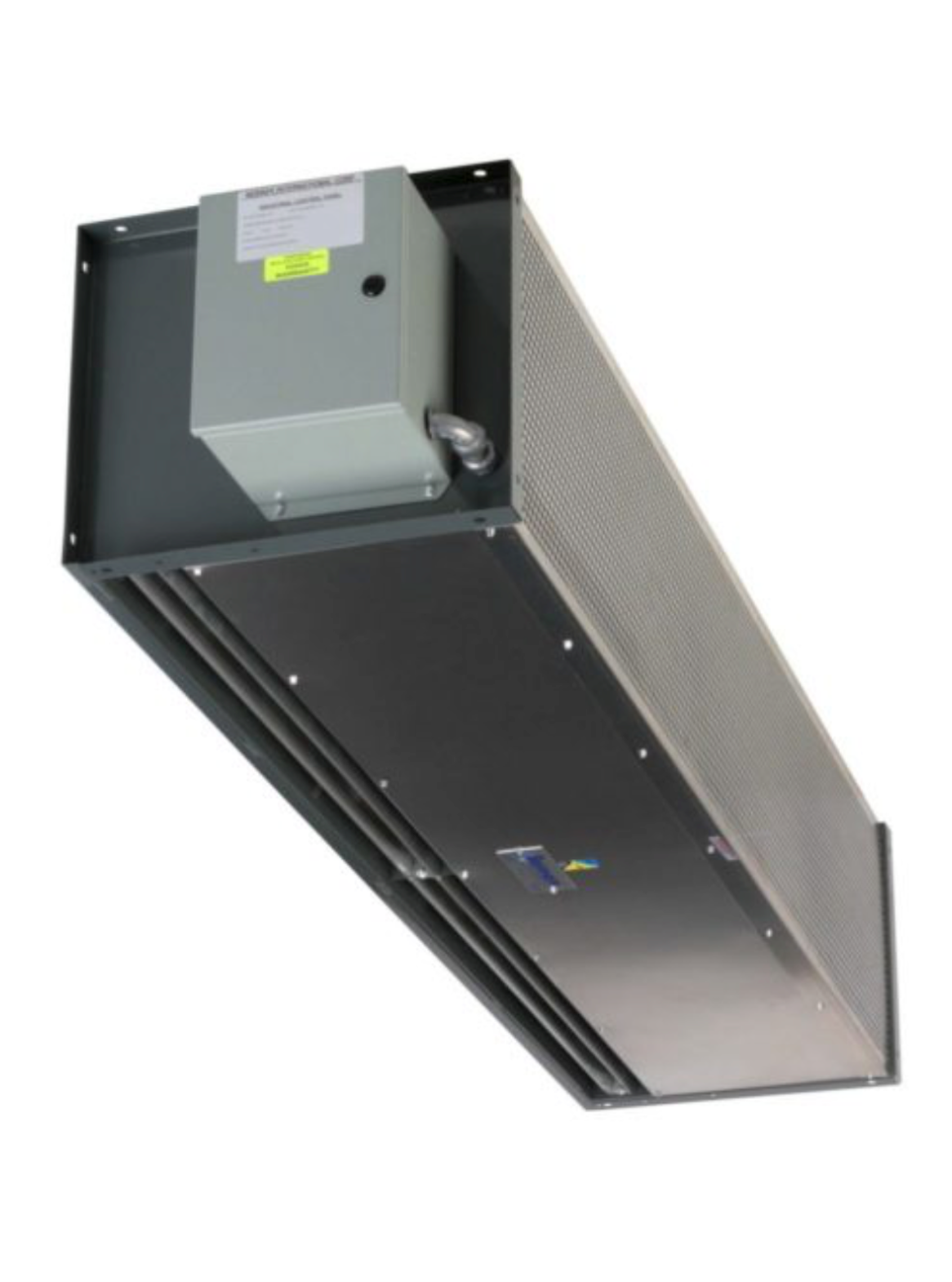

*Berner also manufactures the IDC12 Series with Electric Heat, Steam/Hot Water Heat, and Indirect Gas Heat Models, however these are currently not listed herein for sale. Please contact us if you're looking for more information, or visit www.Berner.com.

Accessories

This model requires a separate Activation Switch. All air curtains using control panels require an Activation Switch with the panel.

Control Panels

  • Single phase control panel is required when a time delay is used, when a 24 volt control is used, and/or when motor quantities exceed: (2) 1/2 hp @ 120V or (3) 1/2 hp @ 208–240V
  • Three phase control panel and activation switch are required for all three phase power supplies
  • Location of panel is factory installed on left hand end plate; optional right hand end plate or remote mounted

Electrical Accessories

  • Door Switches: roller, plunger, whisker arm, magnetic reed, heavy duty magnetic reed style
  • Hand/Off/Automatic switches
  • Disconnect Switch(es) – toggle disconnects based on number of power supplies required
  • Remote Thermostat & Locking Cover
  • Indirect Gas Heater Transformer – remote mounted

Mechanical Accessories

  • Wall support brackets
  • Extension brackets
  • Floor mounting brackets
  • Vertical tandem mounting bracket
  • ½” Washable filters
  • Nozzle extensions

Berner IntelliswitchTM (Optional)

  • The Intelliswitch (digital controller) allows the user to program the air curtain to run for a set time in between door cycles, to operate on a schedule, and for air curtains with heat to run until the thermostat set point is satisfied
  • Several pre-set programs to choose from or create a program tailored to the application
  • Control panel is required when an Intelliswitch is used

Berner AIR and Intelliswitch Package

  • Includes BACnet-IP Support
  • Program, operate & monitor Industrial Air Curtains via Berner’s mobile app
  • Access reporting on energy & cost savings, door operations, and more

Digital Controller

  • Takes the place of Control Packages
  • Simplified pre-set programs
  • Single speed motor operation
  • LED clock display
  • Low voltage circuit for unit activation
  • Serial network connection available
  • External thermostat provision
  • Commercial grade components with operating range: 0° – 70°C or 32° – 158°F
  • RoHS compliant
  • Temperature probe (heated units only)

Berner AIRTM Smart Controller & Berner App, includes BACnet

  • Requires IntelliswitchTM
  • Program, operate & monitor via smartphone / tablet
  • BACnet-IP support
  • Remote troubleshooting
  • Secure: best practices for cyber security protocols followed
