CLC08-1072EX - 72" White, Electric Heated, 208V, Three Phase, Berner Commercial Low Profile 8
CLC08 72" White, Electric Heated, 208V, Three Phase
The Commercial 8 Series High Performance Air Curtain is designed for doorways of up to 8ft in height for environmental control or 7ft for insect control (requires a minimum of 9.5” clearance above the door). Ideal for service doors, ghost kitchens, conveyor systems, shipping doorways, main entrances, and other high traffic areas. This air curtain is UL certified and is made in the USA with a limited 2 year warranty. Features heated air for additional comfort on cold days, an aluminum housing in white, and is designed for indoor mounting only.
Comes with plunger/roller switch (9503SD025-PR-A) and door switch mounting bracket (66ADS000DMB).
AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, THREE PHASE):
COIL FEATURES:
- Galvanized steel casing
- 5/8″ copper tube X .035″ wall
- Aluminum fins
- Leak tested at 450 PSI
SUPPORTING DOCUMENTS:
- Installation & Maintenance Manual (CLC08)
- Data Sheet (CLC08)
- Replacement Parts List/Diagram (CLC08)
ELECTRIC HEAT:

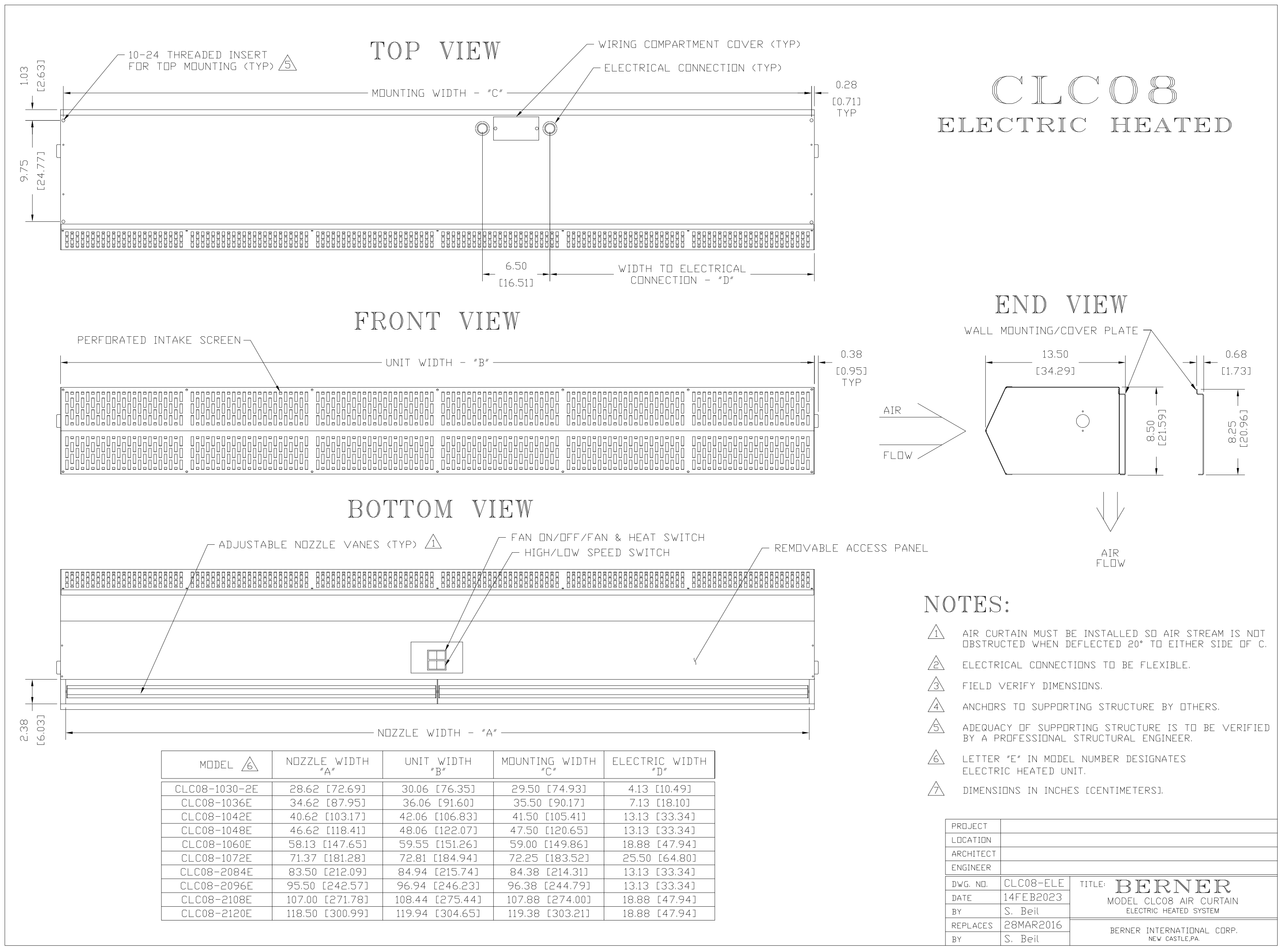

- 8 1/2” high x 13 1/2” deep
- 1/5 hp two speed motor(s)
- Factory installed fan speed/heat switch
- White or black powder coated exterior (Optional: Custom Color or Stainless)
- Wall & Top Mounting
- Open helical element with point suspension
- Thermal overload protection
- Galvanized steel frame
- Alternate KW available
BASIC CONTROL PACKAGE:
Recommended for openings where the door stays open for an extended period or does not have a lot of traffic.
- Air curtain turns on when door is opened and shuts off when door is closed
- Consists of a door switch (roller, plunger, or magnetic reed style) and line voltage, 24 volt control, or 120 volt control
DELUXE CONTROL PACKAGE:
Recommended for high traffic openings.
- Air curtain turns on when door is opened, when the door closes, the unit remains on until set delay time expires
- Consists of a door switch (roller, plunger, or magnetic reed style), a time delay, and line voltage or 24 volt control
Berner offers an Automation Control Package version of the Basic and Deluxe Control Packages, these allow the air curtain to interact with Building Automation Systems (BAS) or Automatic Door Controllers to turn on or off.
ELECTRICAL ACCESSORIES:
- Two speed selector switches, remote mounted
- Hand/Off/Automatic switches, remote mounted
- Disconnect Switch(es) – toggle disconnects based on number of power supplies required
- Remote Thermostat & Locking Cover
- Remote Temperature Sensor
MECHANICAL ACCESSORIES:
- Adjustable depth Z wall bracket
- Tandem wall mounting bracket
- Tandem mount performance kit
- Transom wall brackets
- Tamper Resistant Correctional Facility Package
