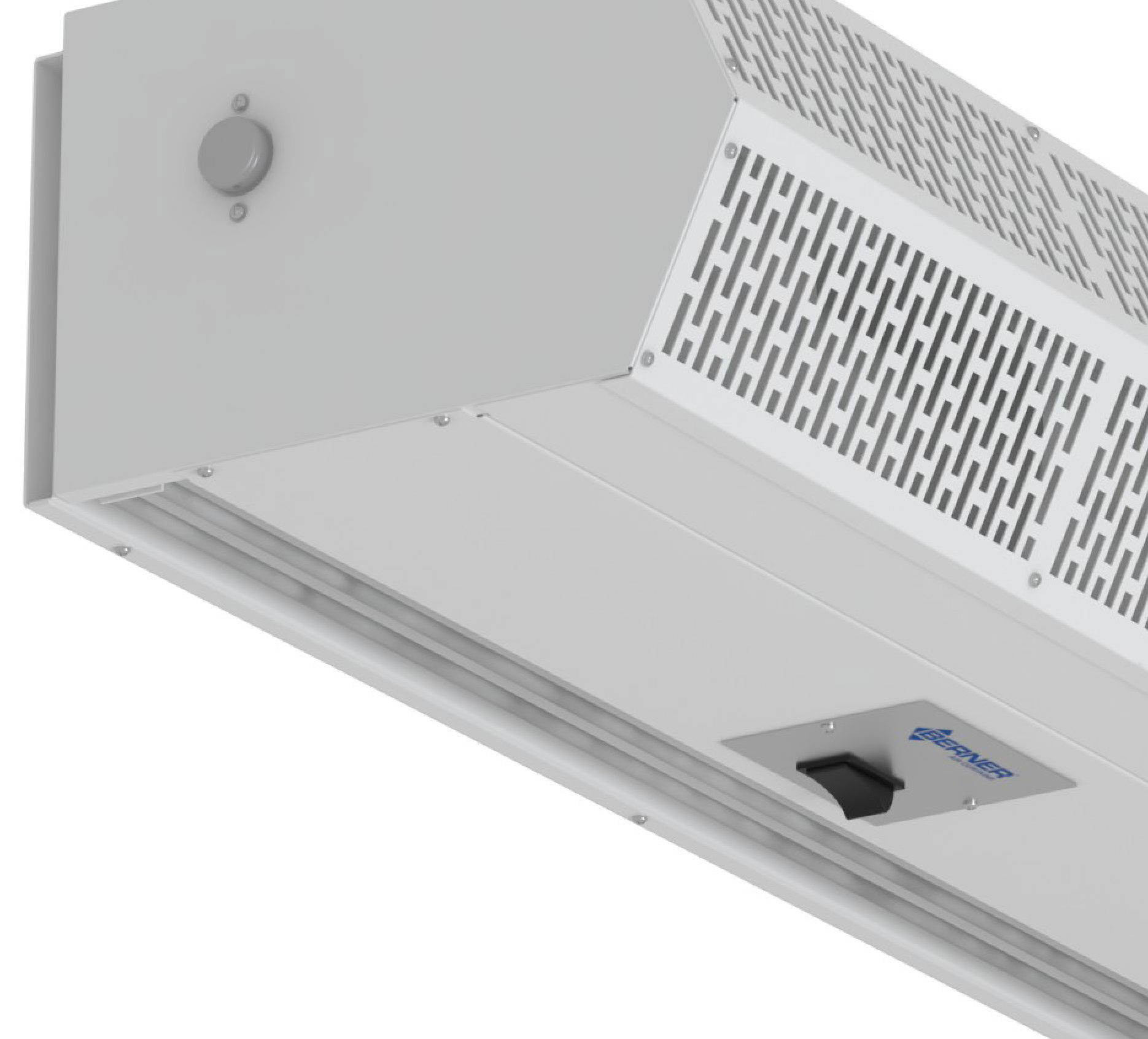

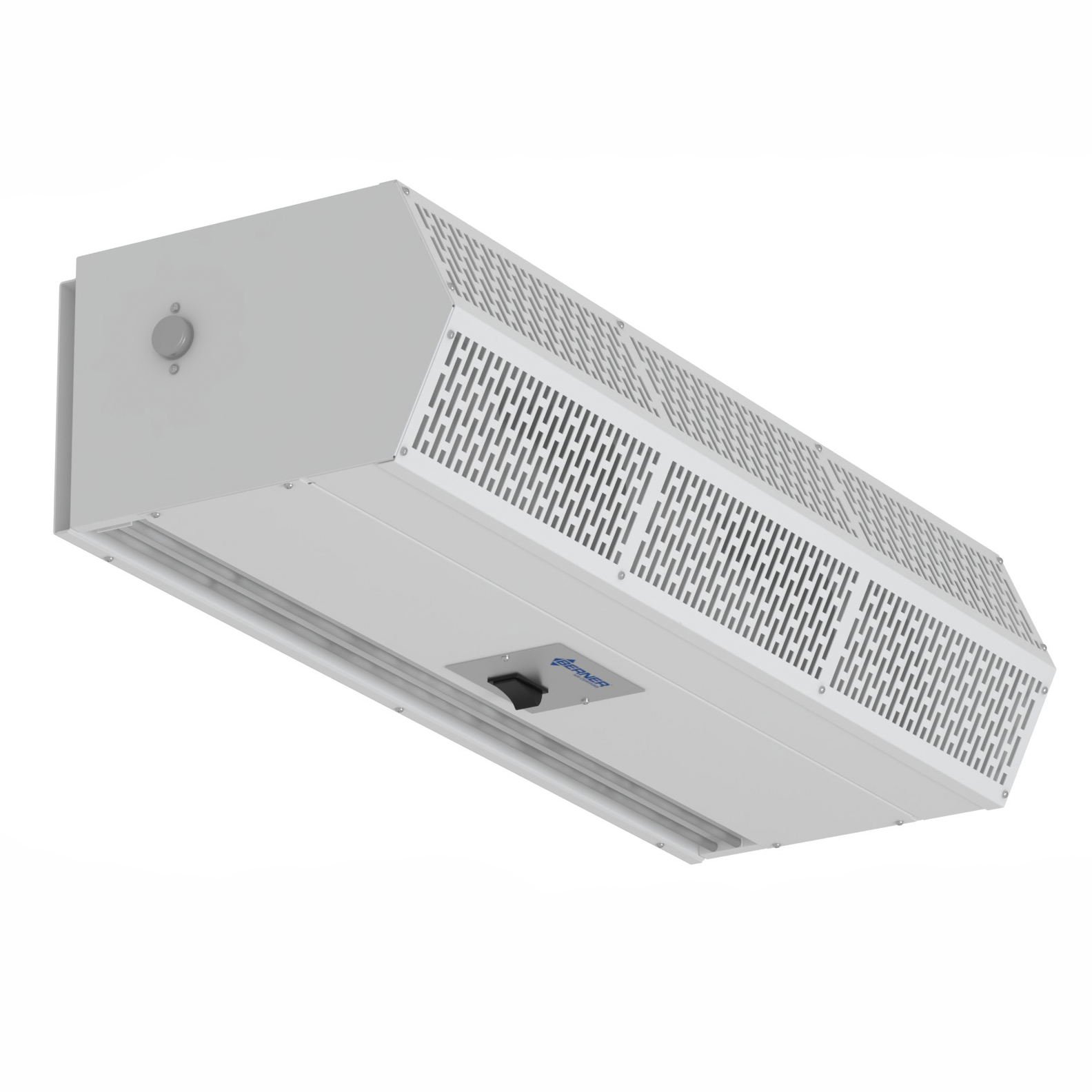

CLC08-1036EY - 36" White, Electric Heated, 240V, Three Phase, Berner Commercial Low Profile 8

CLC08 36" White, Electric Heated, 240V, Three Phase

The Commercial 8 Series High Performance Air Curtain is designed for doorways of up to 8ft in height for environmental control or 7ft for insect control (requires a minimum of 9.5” clearance above the door). Ideal for service doors, ghost kitchens, conveyor systems, shipping doorways, main entrances, and other high traffic areas. This air curtain is UL certified and is made in the USA with a limited 2 year warranty. Features heated air for additional comfort on cold days, an aluminum housing in white, and is designed for indoor mounting only.

AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, THREE PHASE)

• 36" --- 208V, 240V
• 42" --- 208V, 240V
• 48" --- 208V, 240V
• 72" --- 208V, 240V

SUPPORTING DOCUMENTS

• Installation & Maintenance Manual (CLC08)

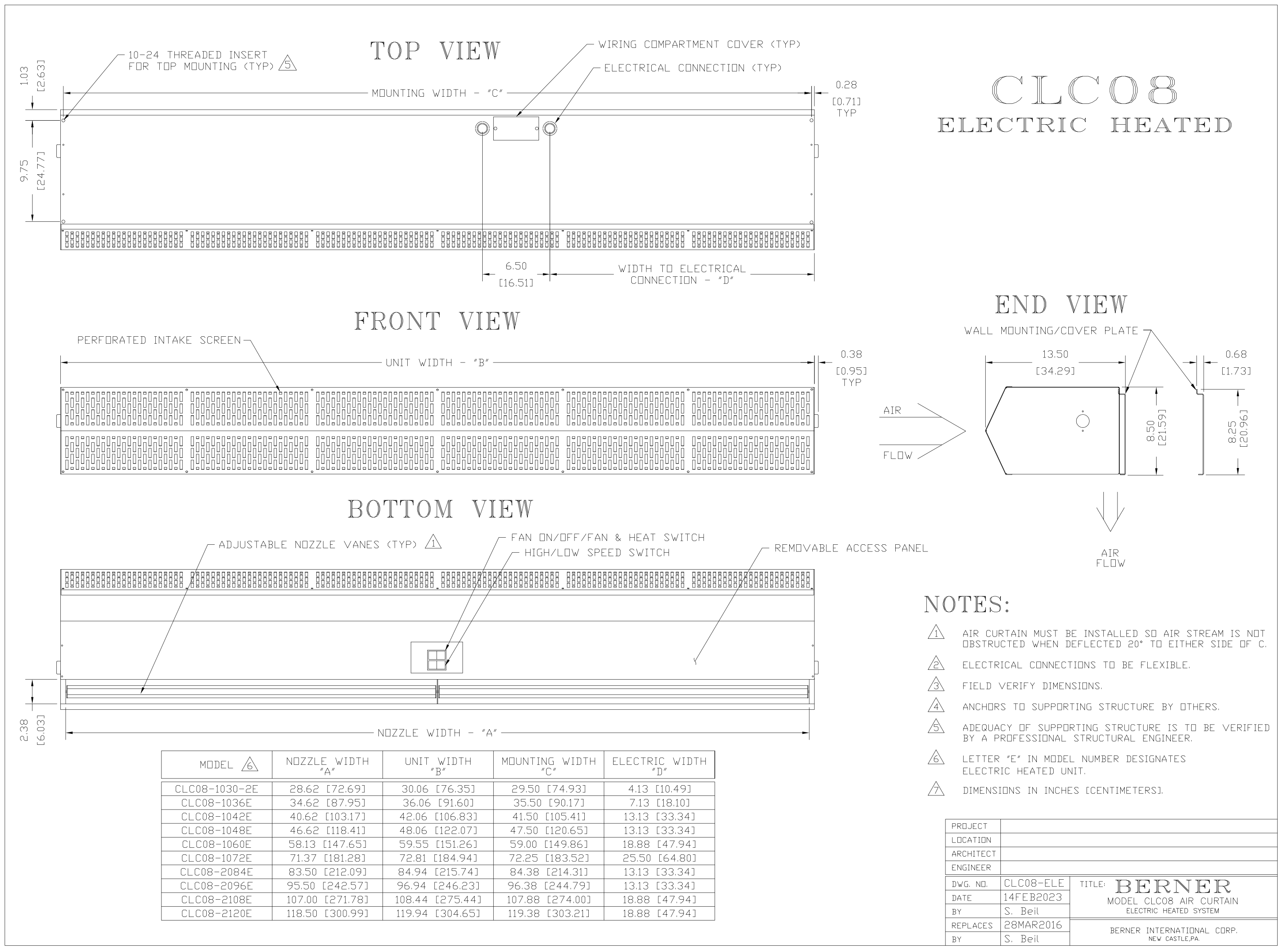

• Data Sheet (CLC08)
• Replacement Parts List/Diagram (CLC08)

ELECTRIC HEAT

• 8 1/2” high x 13 1/2” deep
• 1/5 hp two speed motor(s)
• Factory installed fan speed/heat switch
• White or black powder coated exterior (Optional: Custom Color or Stainless)
• Wall & Top Mounting
• Open helical element with point suspension
  • Thermal overload protection
  • Galvanized steel frame
• Alternate KW available

WHAT YOU NEED TO OPERATE IT

• Control package (required)
  On electric heated models the control package (door switch, time delay and low-voltage controls) is factory-built into the unit, so it is confirmed with you after you order – together with the heater kW for your job site. No extra step at checkout.

ADD-ONS

• Berner 80EZX036C washable aluminum filter sized for this unit
• Berner 9502DS2T-P remote thermostat
