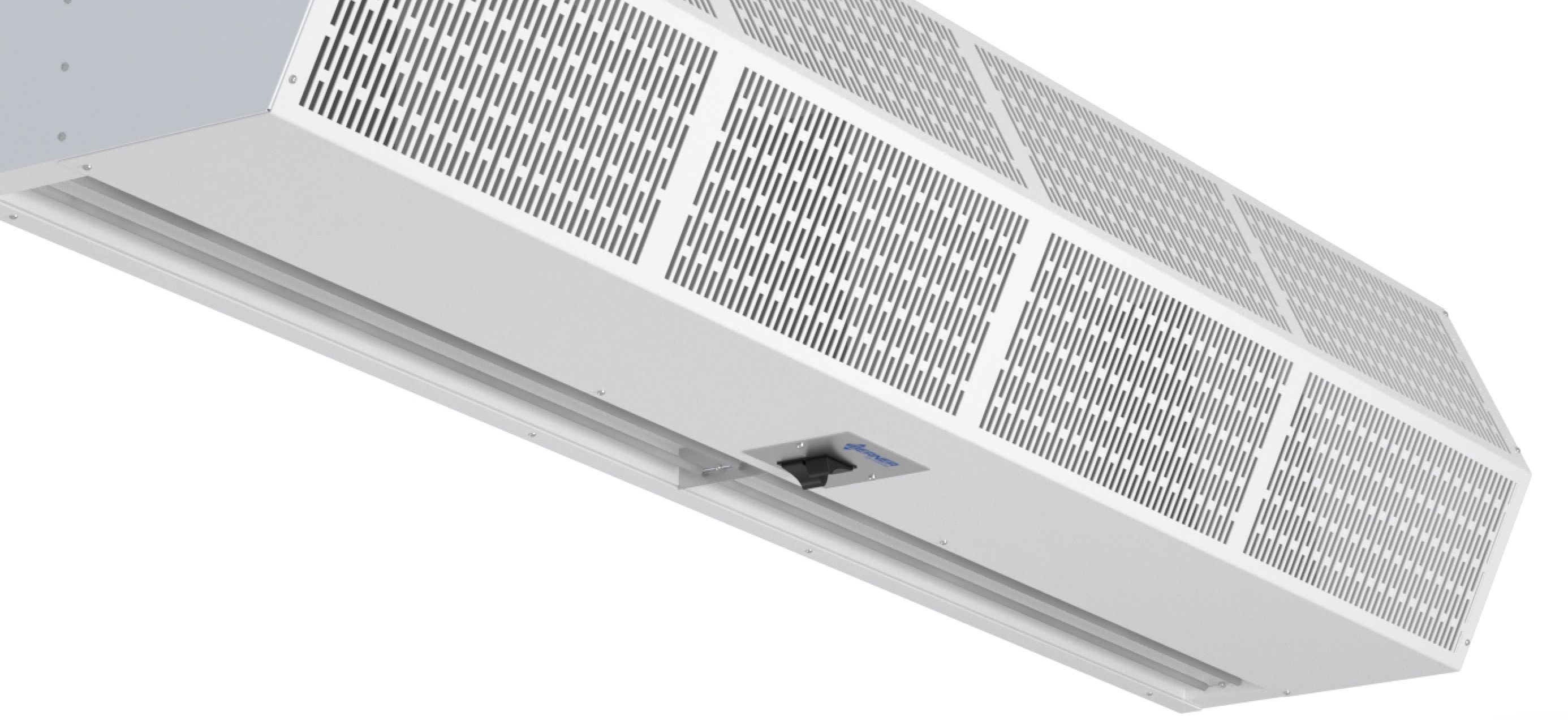

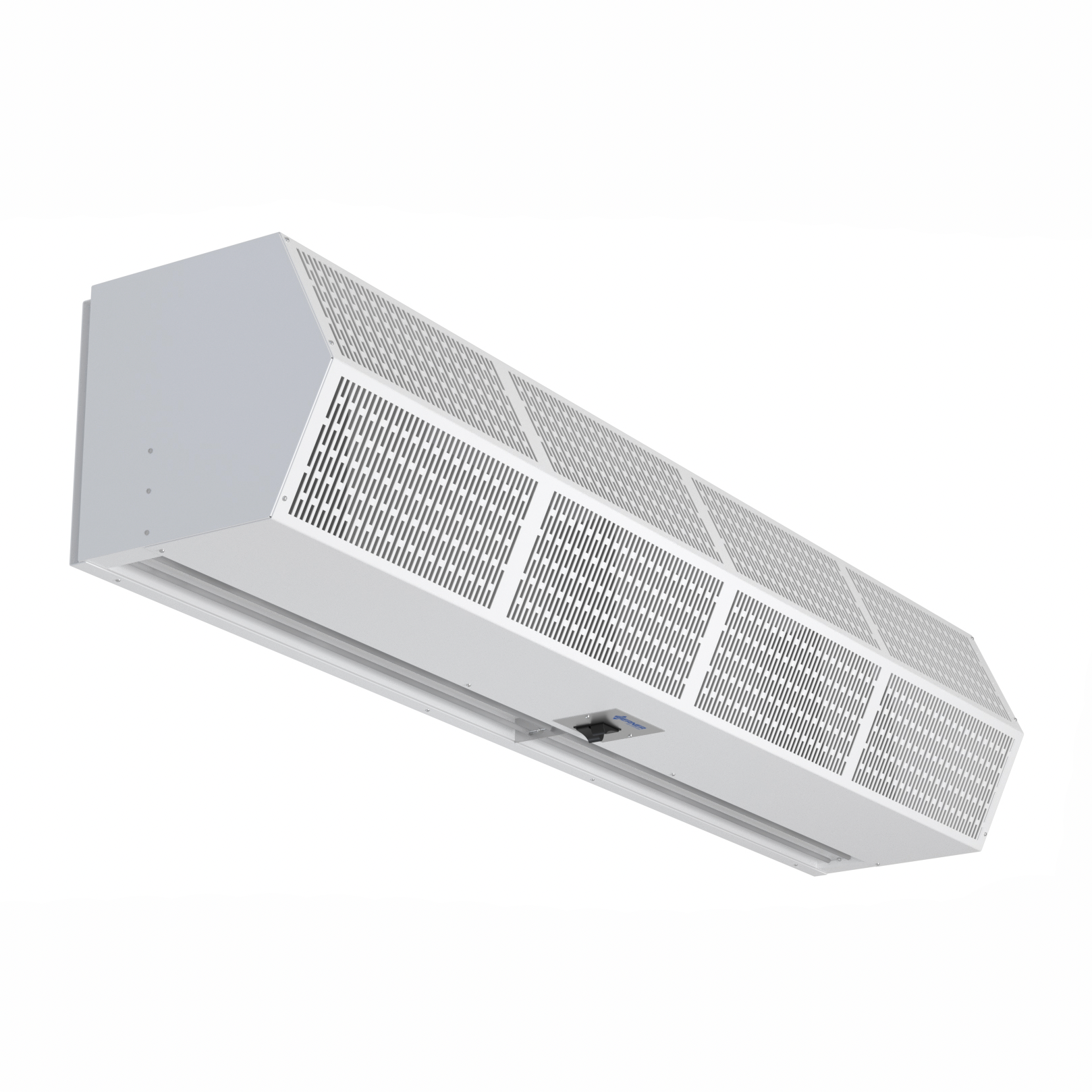

CHD10-2072AJ-S01 - 72" White, Ambient Air, 240V, Single Phase, Berner Commercial High Performance 10 Series

Series CHD10 (formerly CHC10) - 72" White, Ambient Air, 240V, Single Phase

The Commercial Series High Performance Air Curtain is designed for doorways of up to 10ft in height for environmental control or 8ft for insect control. Ideal for service doors, ghost kitchens, conveyor systems, shipping doorways, as an alternative to vestibules, main entrances, and other high traffic areas. This air curtain is UL certified, AMCA certified performance, complies with ASHRAE 90.1 requirements, and is made in the USA with a limited 2 year warranty. It creates a steady stream of air over your doorway,  keeping outside air separate from your AC or heated air.

• AMCA certified ambient & electric heated models
• Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules
• Ideal for service entries and main entrances
• Custom colors or stainless steel (Grade 304 or better) available.
• Simple to install, operate, and maintain
• Made in U.S.A.

AVAILABLE CONFIGURATIONS

• 36" --- 120V, 208V, 240V
• 42"  --- 120V, 208V, 240V
• 48" --- 120V, 208V, 240V
• 72" --- 120V, 208V, 240V

SUPPORTING DOCUMENTS

• Installation & Maintenance Manual (CHD10)
• Data Sheet (CHD10)
• Replacement Parts List/Diagram (CHD10)

AMBIENT AIR

• 14″ high x 15″ deep
• ½ hp three-speed motor(s)
• Factory installed fan speed switch
• White or black aluminum exterior cover (optional: custom color, RAL colors 1000 to 9023 only, or stainless)
• Wall and top mounting
• Optional: Filter (washable)

WHAT YOU NEED TO OPERATE IT

• Door switch (required, choose one)
  Berner 9503SD025-PR-A Plunger/Roller Door Switch for simple on/off with the door – one per door, two for double doors.
• Or, for busy entrances
  Berner 91STR120-DA-M-24 Deluxe Control Package – 24V transformer, time delay and magnetic reed door switch, so the curtain keeps running briefly after the door closes. For double doors, add a 9503MRS1F2-NC-K magnetic reed switch.

ADD-ONS

• Berner 80LWB072C washable aluminum filter sized for this unit
