CHD10-1048EX - 48" White, Electric Heated, 208V, Three Phase, Berner Commercial High Performance 10 Series
CHD10 48" White, Electric Heated, 208V, Three Phase
The Commercial Series High Performance Air Curtain is designed for doorways of up to 10ft in height for environmental control or 8ft for insect control. Ideal for service doors, ghost kitchens, conveyor systems, shipping doorways, as an alternative to vestibules, main entrances, and other high traffic areas. This air curtain is UL certified, AMCA certified performance, complies with ASHRAE 90.1 requirements, and is made in the USA with a limited 2 year warranty. It creates a steady stream of air over your doorway, keeping outside air separate from your AC or heated air.
- AMCA certified ambient & electric heated models
- Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules
- Ideal for service entries and main entrances
- Custom colors or stainless steel (Grade 304 or better) available
- Simple to install, operate, and maintain
- Made in U.S.A.
AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, THREE PHASE)
SUPPORTING DOCUMENTS
- Installation & Maintenance Manual (CHD10)

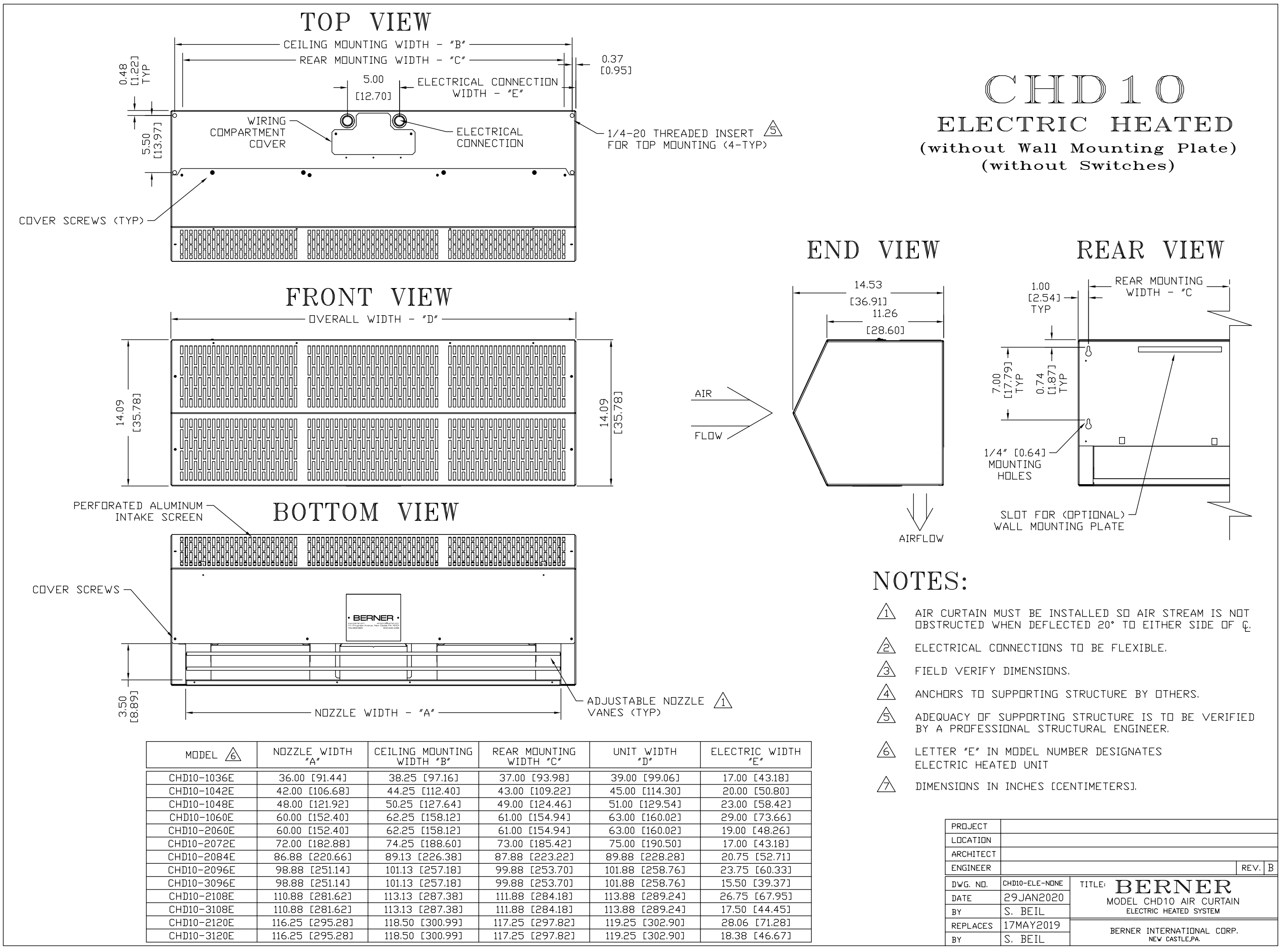

- Data Sheet (CHD10)
- Replacement Parts List/Diagram (CHD10)
ELECTRIC HEAT
- 14″ high x 15″ deep
- ½ hp three-speed motor(s), with factory installed fan speed switch
- White or black aluminum exterior cover (optional: custom color, RAL colors 1000 to 9023 only, or stainless)
- Wall and top mounting
- Optional: Filter (washable)
WHAT YOU NEED TO OPERATE IT
-
Control package (required)
On electric heated models the control package (door switch, time delay and low-voltage controls) is factory-built into the unit, so it is confirmed with you after you order – together with the heater kW for your job site. No extra step at checkout.
ADD-ONS
- Berner 80LWB048C washable aluminum filter sized for this unit
- Berner 9502DS2T-P remote thermostat
Choose options
