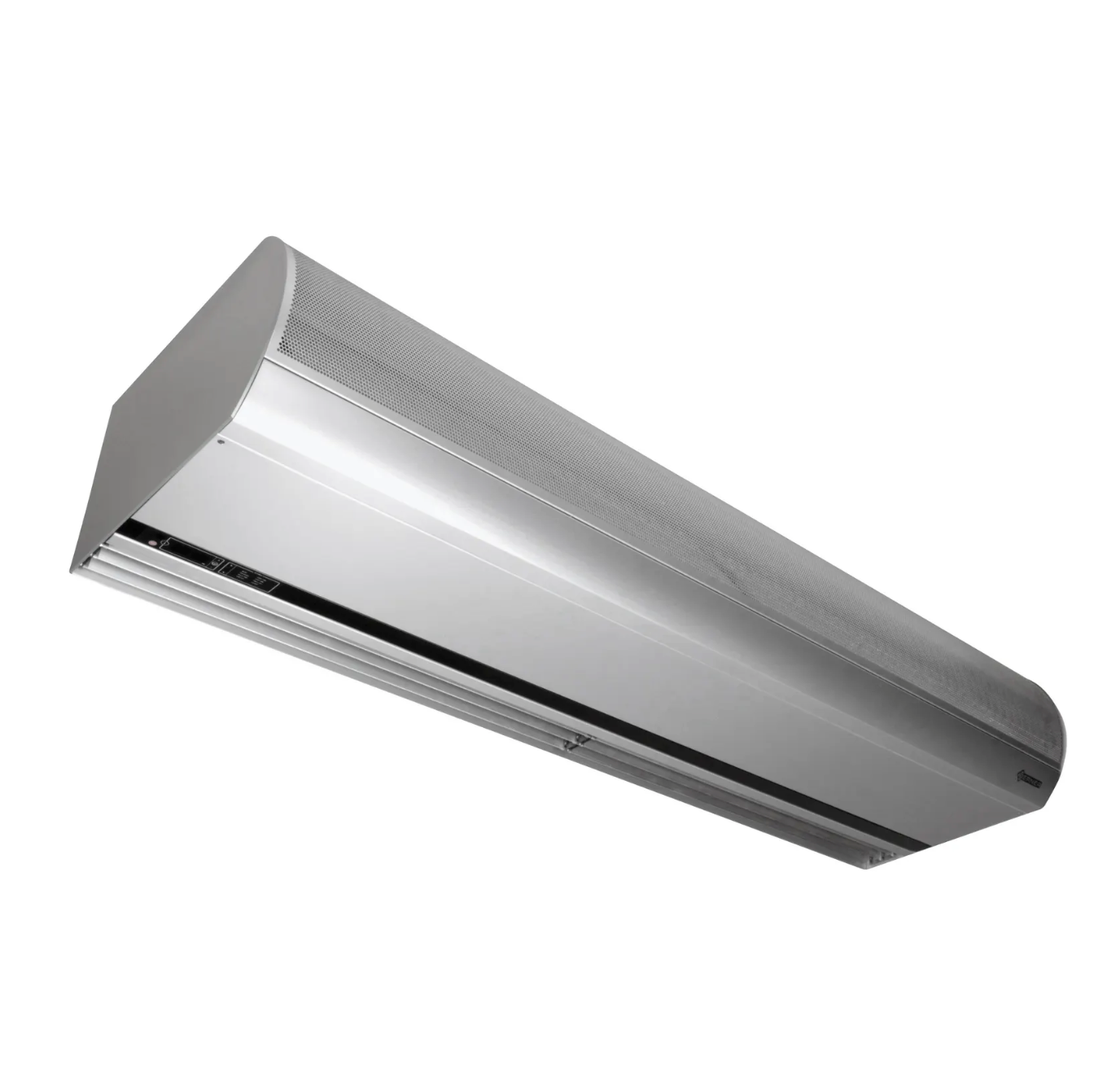

AI10-F-1048EJ - 48", Electric Heated, 240V, Single Phase, Aluminum, Berner Architectural Icon 10 Series
AI10 48" Electric Heated, 240V, Single Phase

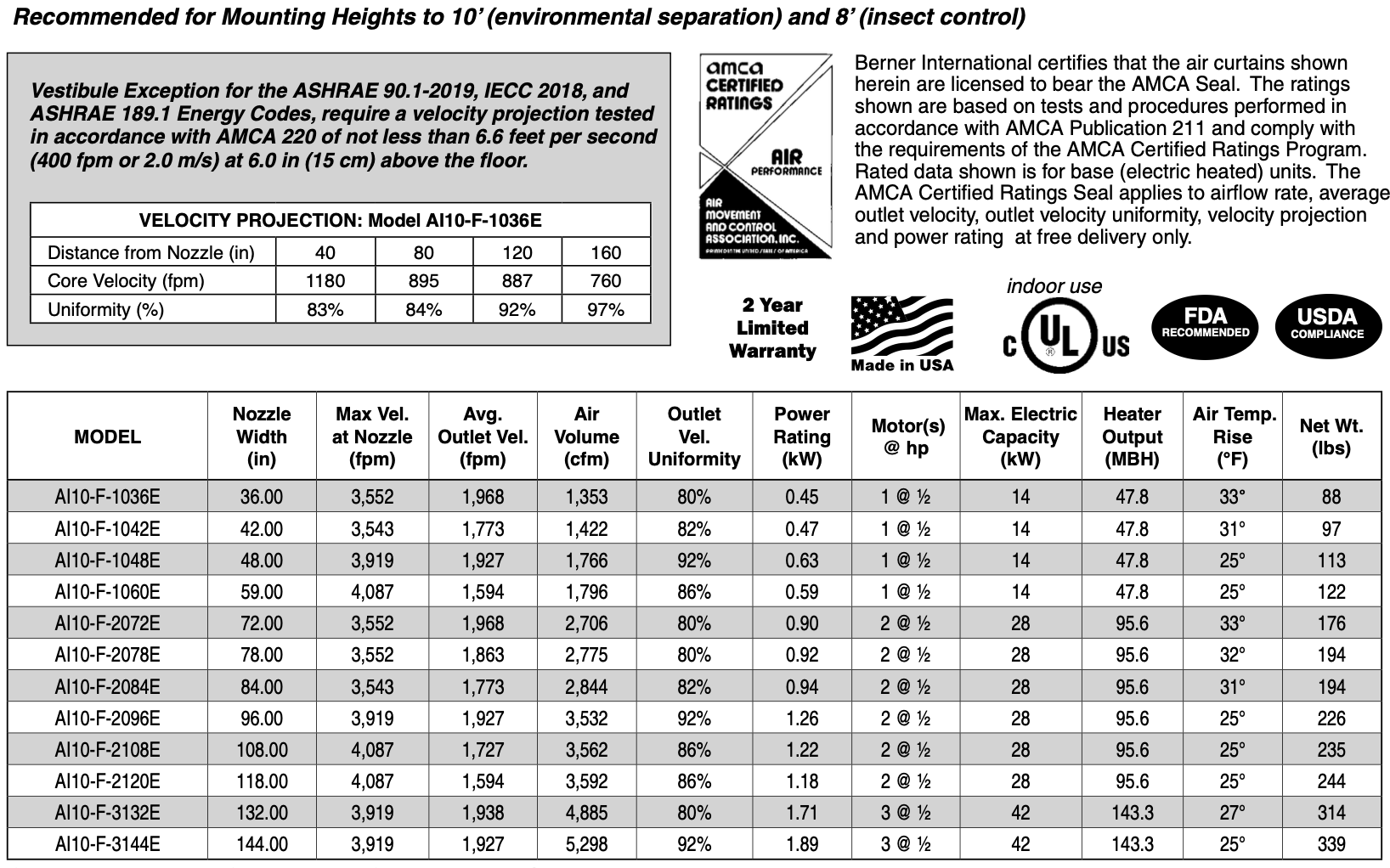

For mounting heights to 10′ (environmental separation) and 8′ (insect control). Includes the ALL NEW BERNER INTELLISWITCH™ and Berner AIR® smart control & app. AMCA certification, meets ASHRAE Standard 90.1-2019 and the IECC building code. New quieter design, simple to install, operate, and maintain. Made in the U.S.A.

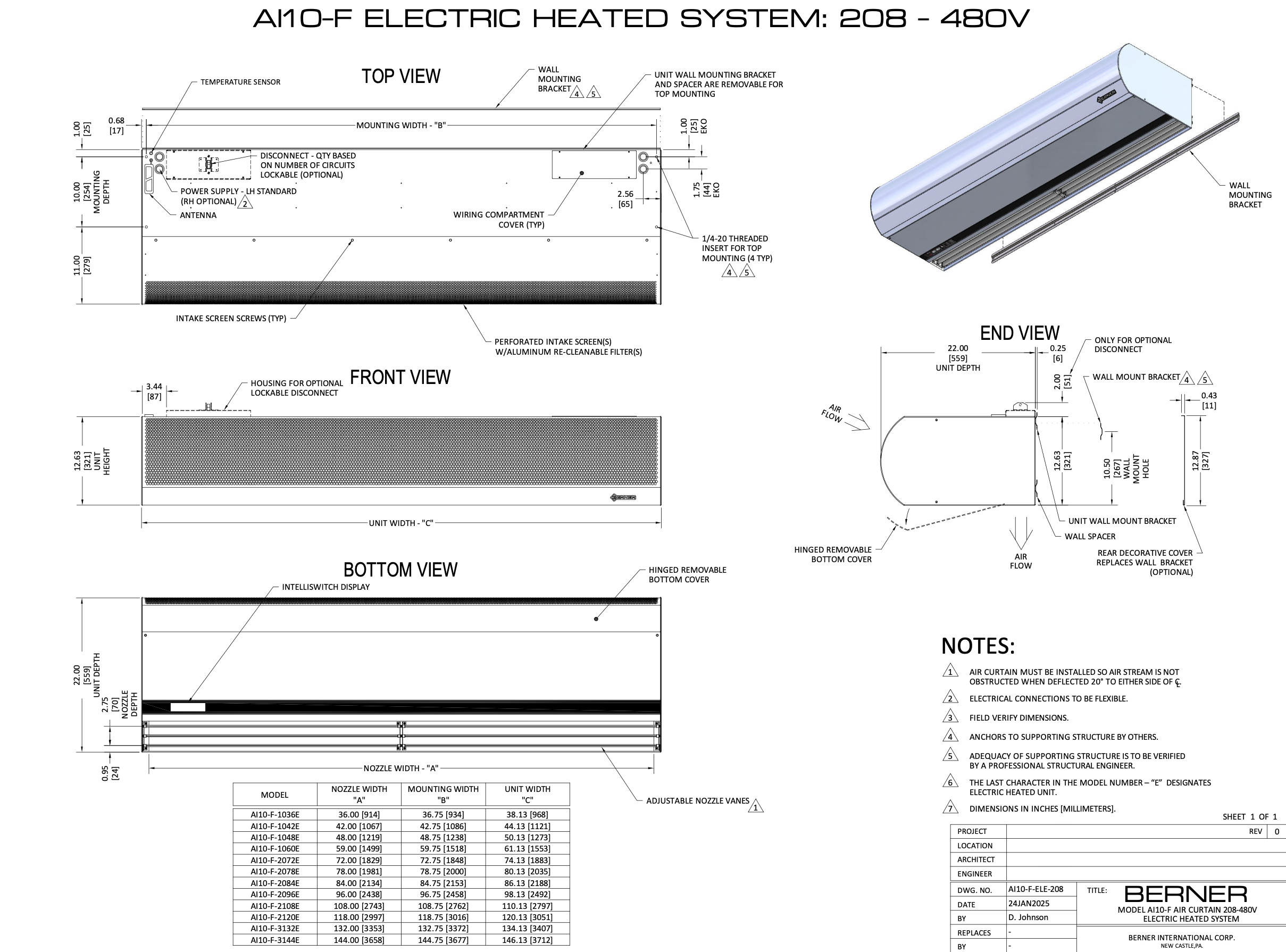

- 12-3/4" high x 22” deep
- 1/2 hp motor(s) – ten speeds
- Includes NEW Intelliswitch™ digital controller – factory mounted or remote display AND Berner AIR® BASIC (Smart Control)
- Clear satin anodized aluminum exterior
- Wall or Top Mounting
- High efficiency, low noise, articulating, three vane, Pro-V Nozzle
- Filter (washable)
AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, SINGLE PHASE):
- 36" --- 120V, 208V, 240V
- 42" --- 120V, 208V, 240V
- 48" --- 120V, 208V, 240V
- 60" --- 120V, 208V, 240V
- 72" --- 120V, 208V, 240V
- 96" --- 120V, 208V, 240V
- 120" --- 120V, 208V, 240V
- 144" --- 120V, 208V, 240V
SUPPORTING DOCUMENTS:
Choose options
