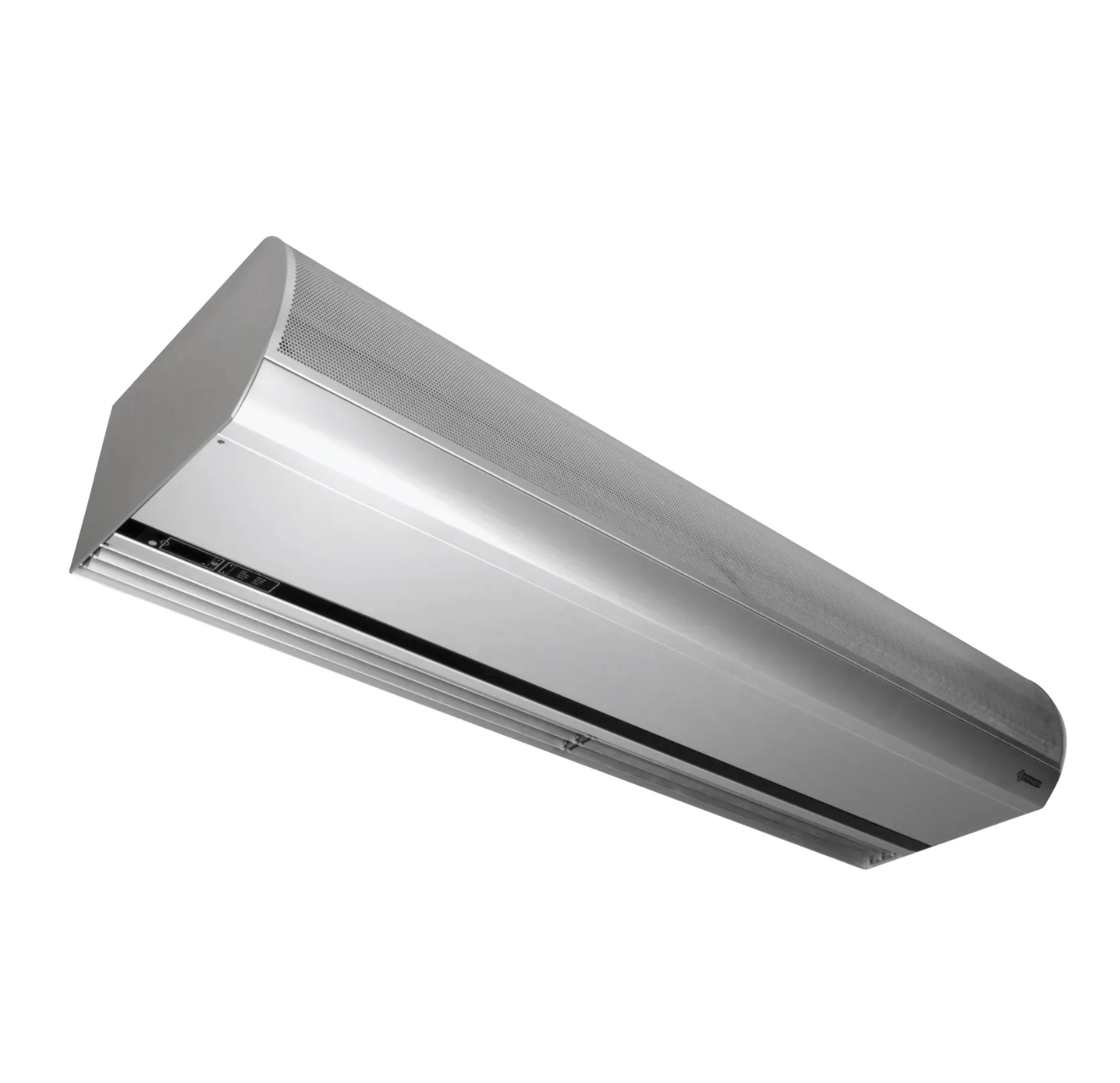

AI10-F-1036EA - 36", Electric Heated, 120V, Single Phase, Aluminum, Berner Architectural Icon 10 Series

AI10 36" Electric Heated, 120V, Single Phase

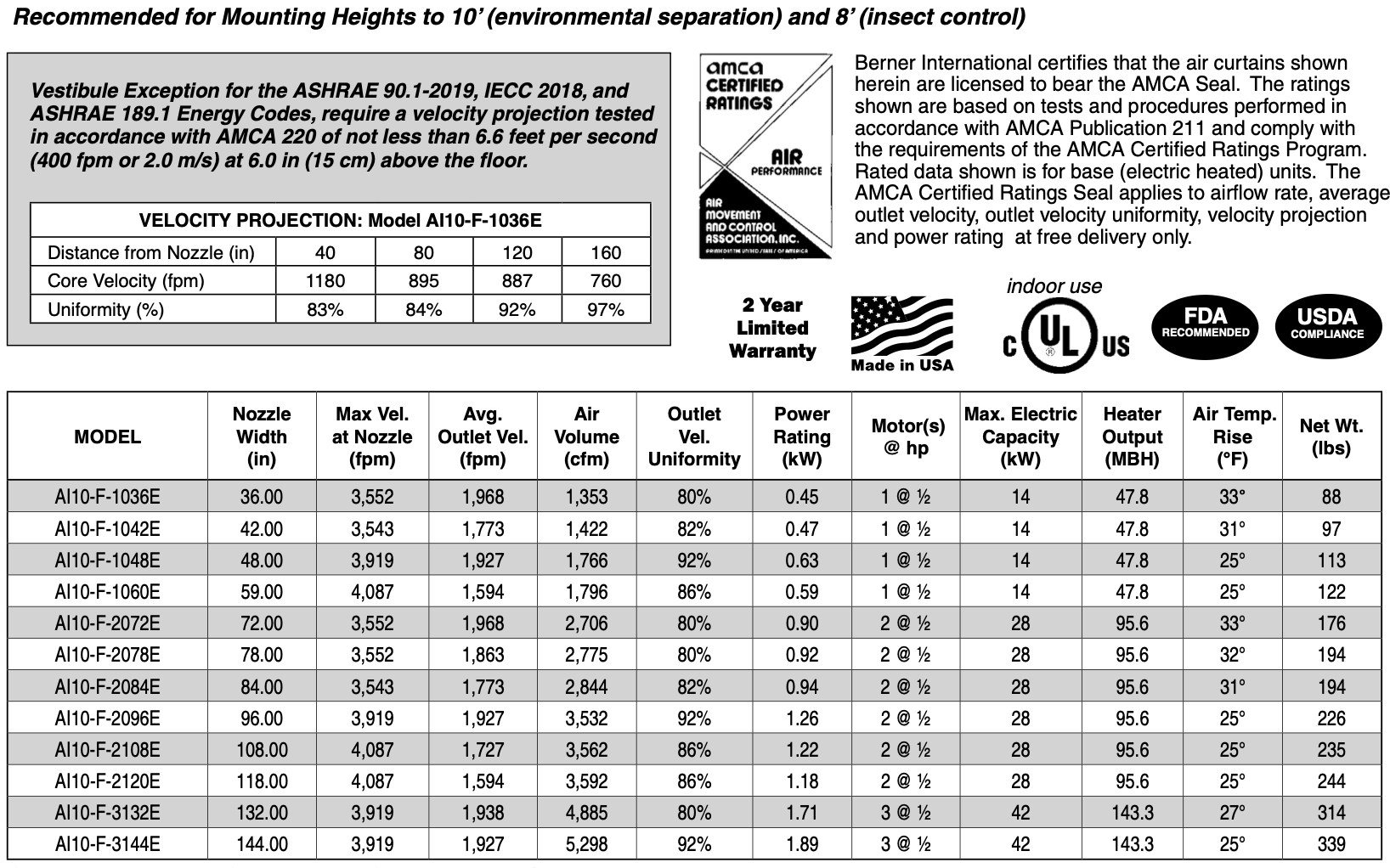

For mounting heights to 10′ (environmental separation) and 8′ (insect control). Includes the ALL NEW BERNER INTELLISWITCH™ and Berner AIR® smart control & app. AMCA certification, meets ASHRAE Standard 90.1-2019 and the IECC building code. New quieter design, simple to install, operate, and maintain. Made in the U.S.A.

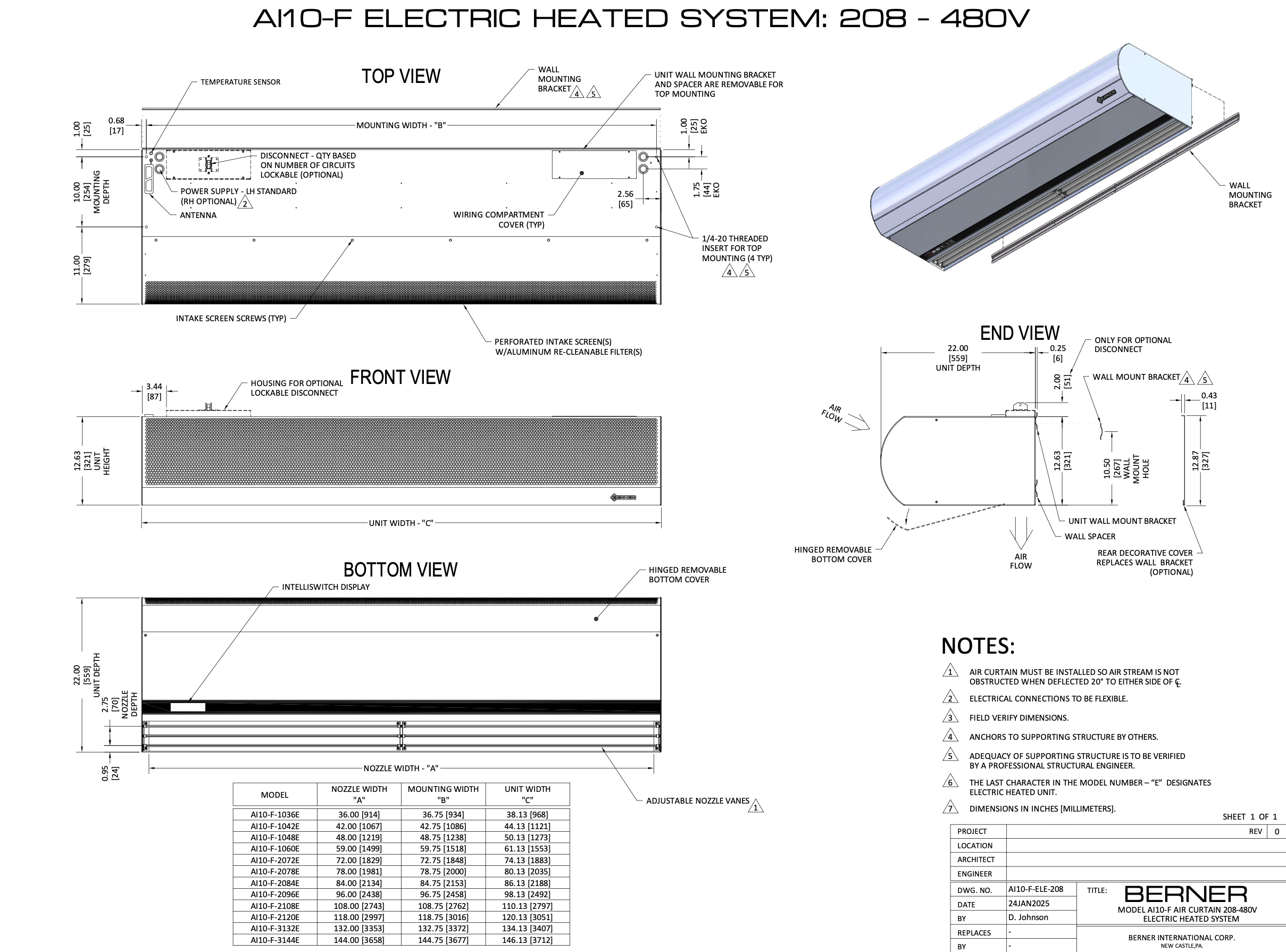

• 12-3/4" high x 22” deep
• 1/2 hp motor(s) – ten speeds
• Includes NEW Intelliswitch™ digital controller – factory mounted or remote display AND Berner AIR® BASIC (Smart Control)
• Clear satin anodized aluminum exterior

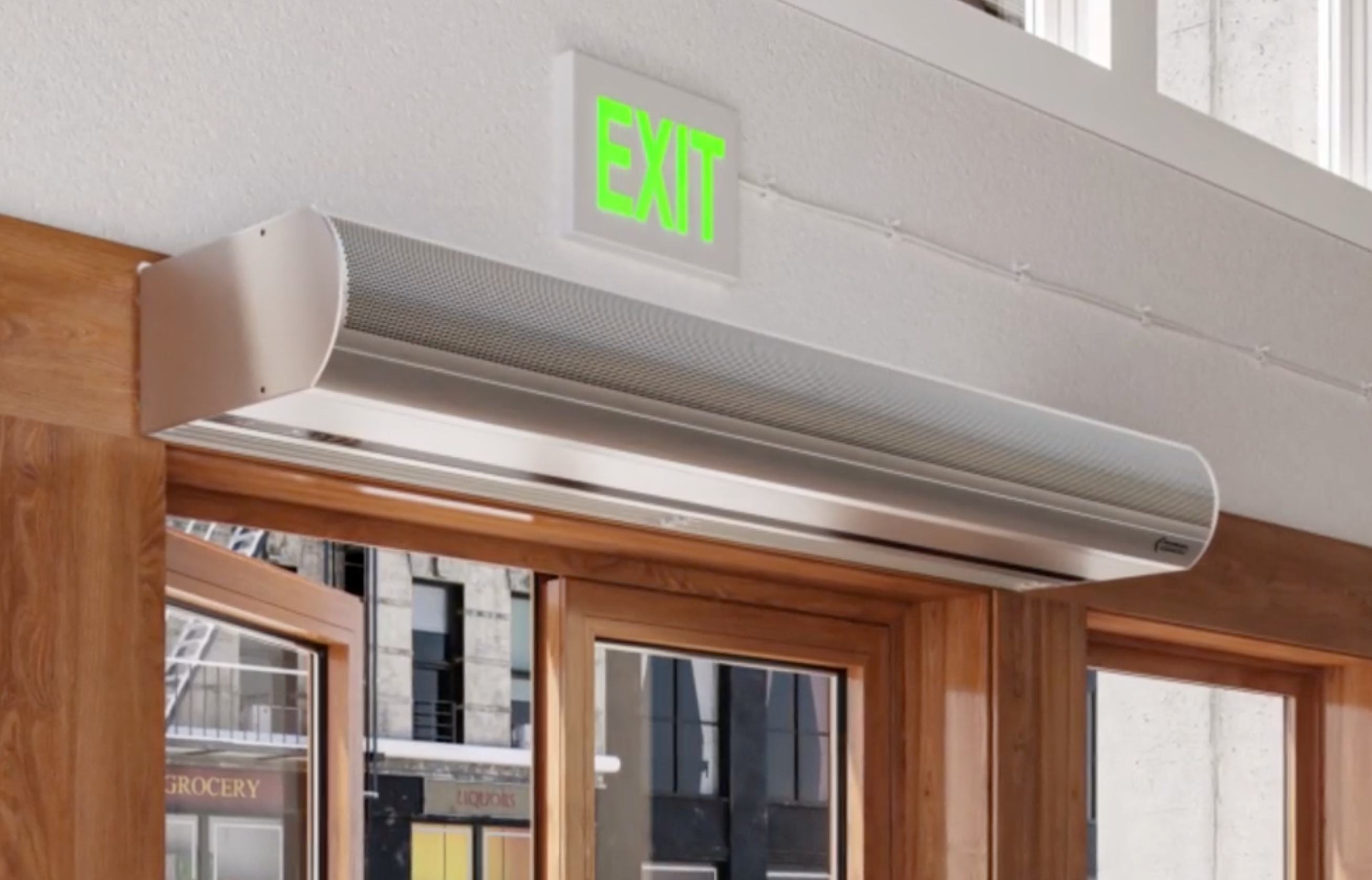

• Wall or Top Mounting
• High efficiency, low noise, articulating, three vane, Pro-V Nozzle
• Filter (washable)

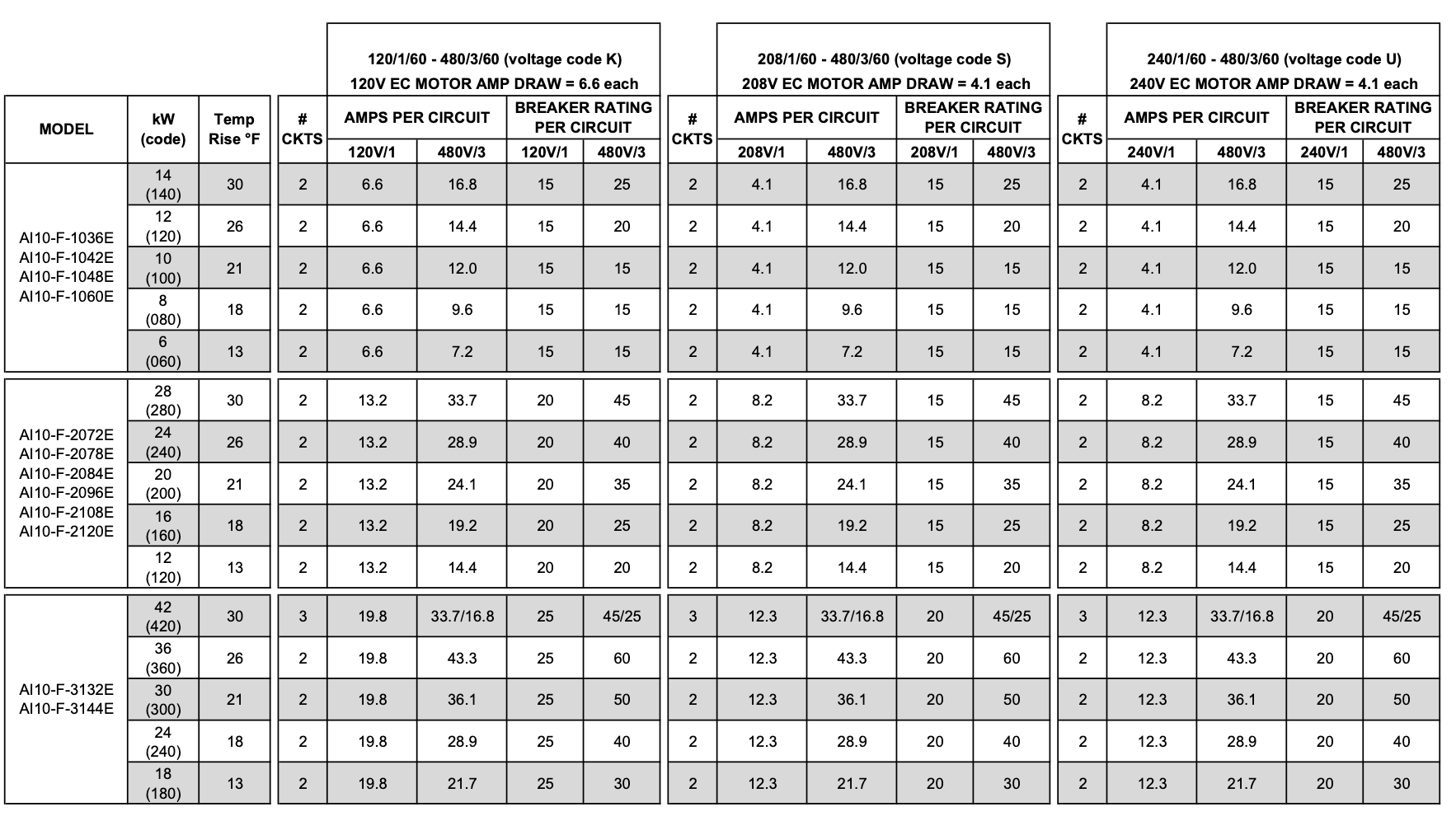

AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, SINGLE PHASE)

• 36"   ---  120V, 208V, 240V
• 42"   ---  120V, 208V, 240V
• 48"   ---  120V, 208V, 240V
• 60"   ---  120V, 208V, 240V
• 72"   ---  120V, 208V, 240V
• 96"   ---  120V, 208V, 240V
• 120" ---  120V, 208V, 240V
• 144" ---  120V, 208V, 240V

SUPPORTING DOCUMENTS

• Installation & Maintenance Instructions (AI08 & AI10)
• Data Sheet Icon 10 Heated
• Brochure - Icon 8 & 10
• Berner Intelliswitch Controller - Flyer
• Intelliswitch Quick Start Guide
• Replacement Parts List/Diagram (AI08 & AI10)

OPTIONAL ADD-ON

• Berner 9503MRS1F2-NC-K Magnetic Reed Door Switch for automatic on/off with the door – wires to the Intelliswitch door-switch input (two for double doors).
