AI08-F-2096EB - 96", Electric Heated, 208V, Single Phase, Aluminum, Berner Architectural Icon 8 Series

AI08 96", Electric Heated, 208V, Single Phase

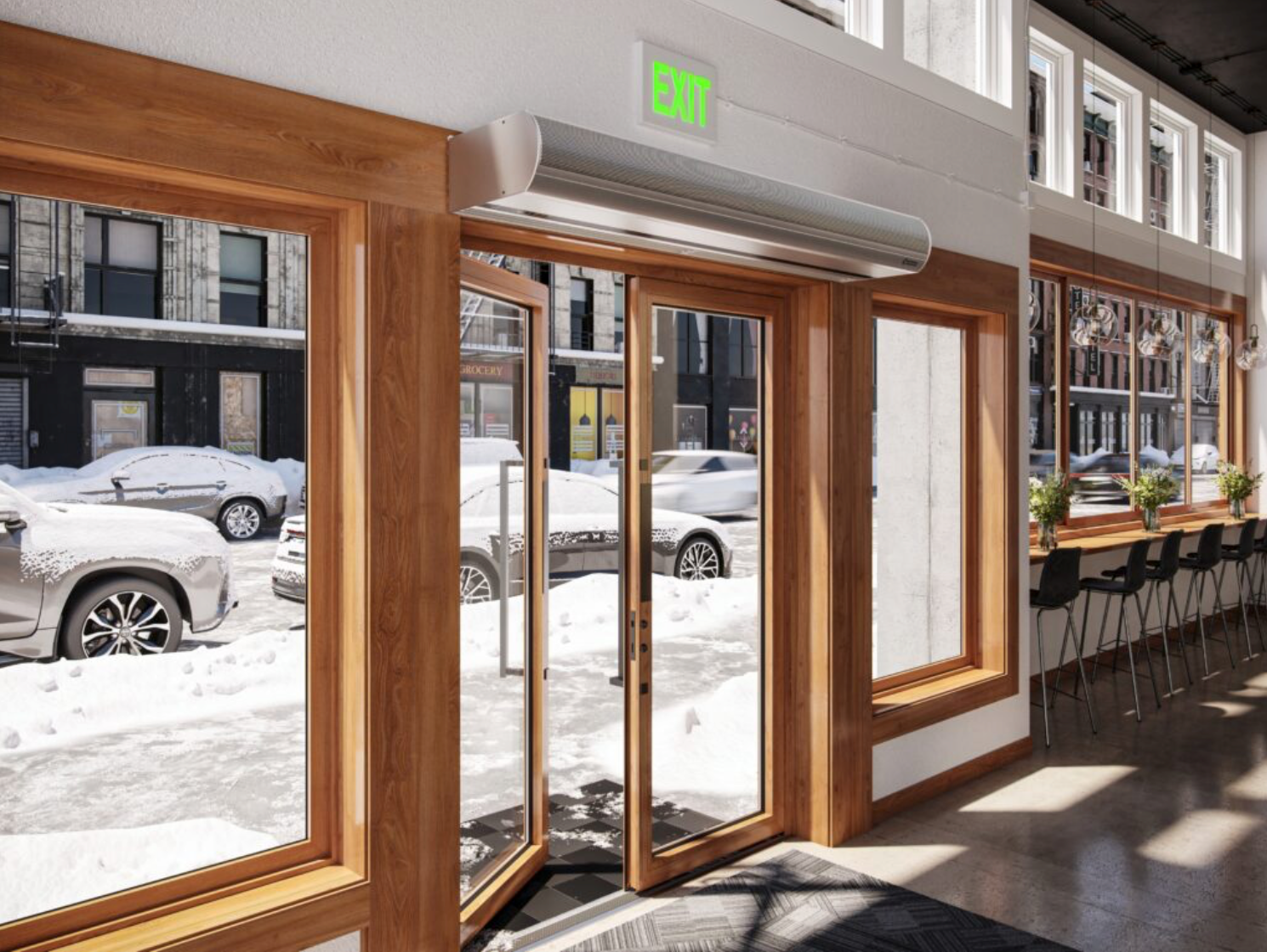

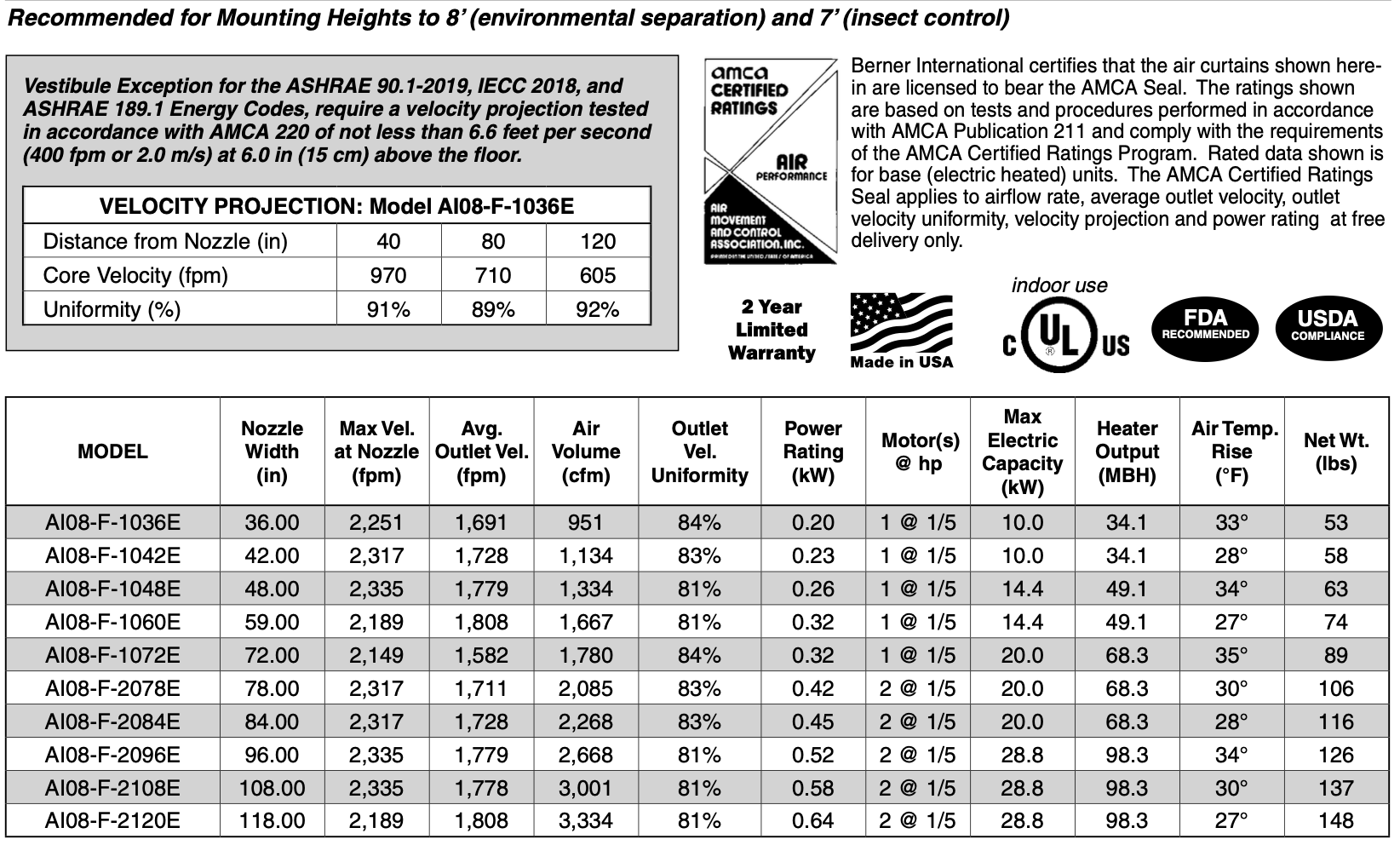

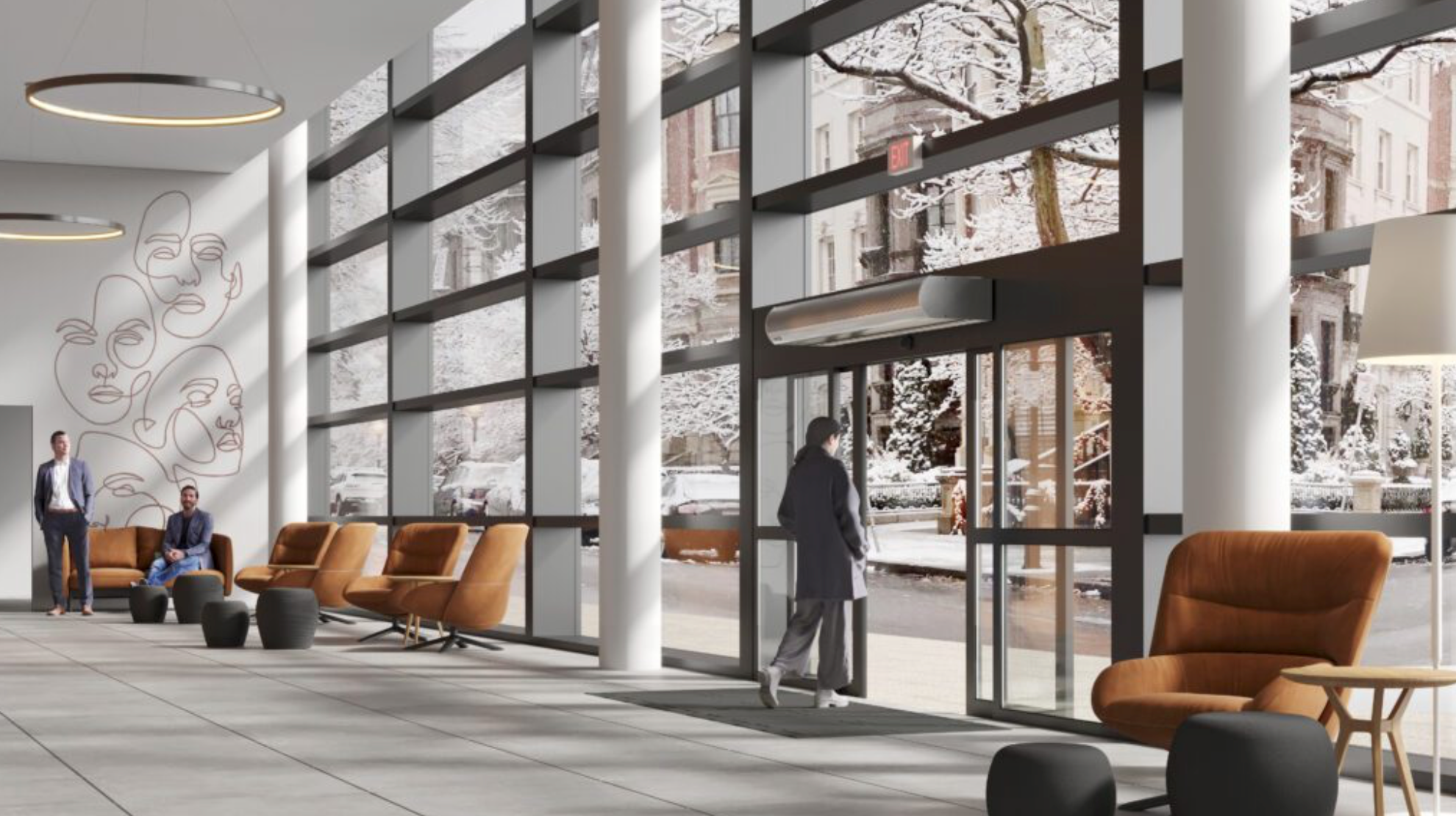

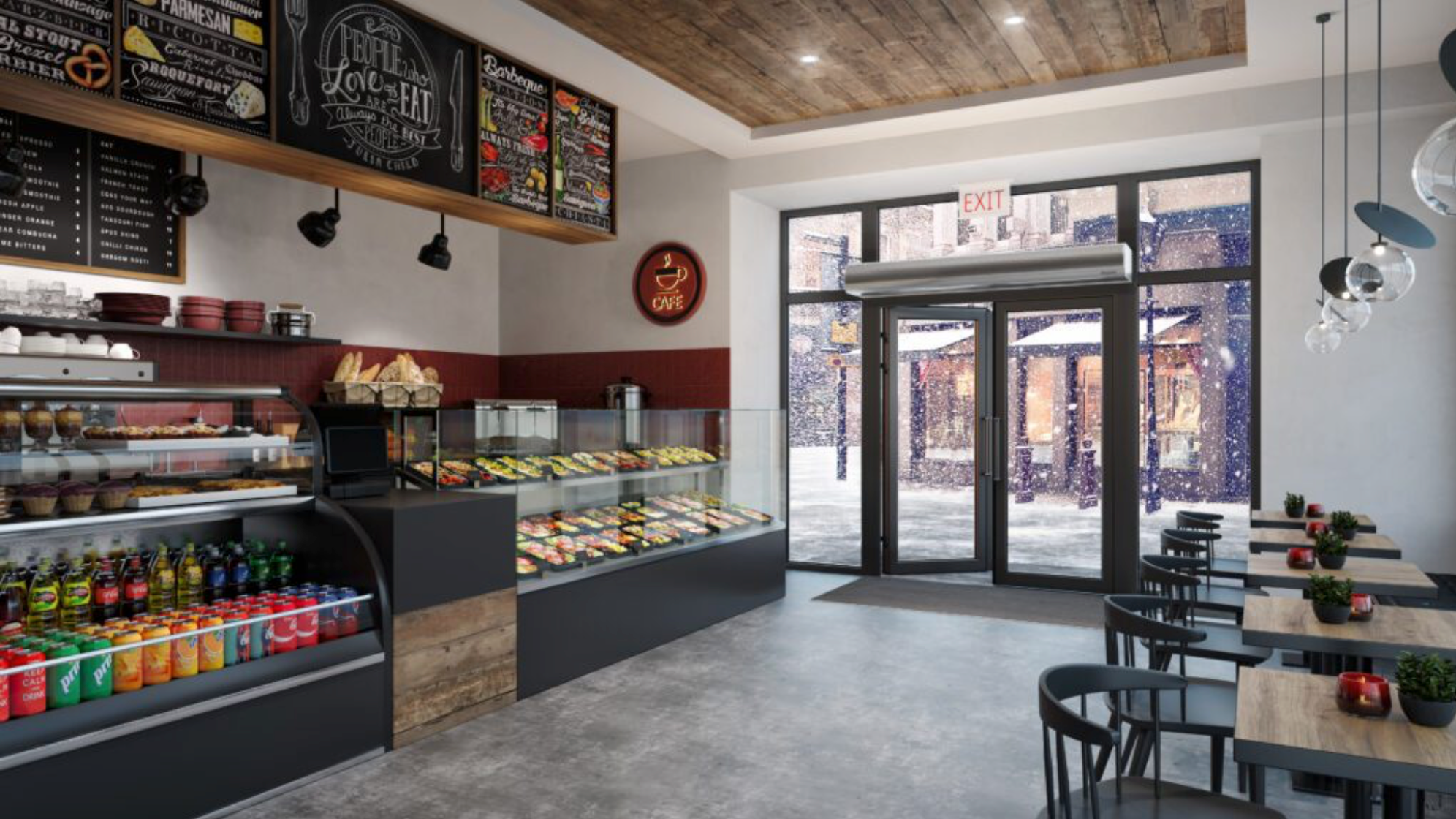

For mounting heights to 8′ (environmental separation) and 7′ (insect control). Includes the all new BERNER INTELLISWITCH™ and Berner AIR® smart control & app. Optional Berner AIR BMS Package available – allows full integration of the air curtain with the Building Management System via: BACnet-IP and BACnet-MS/TP AND Modbus-TCP and Modbus-RTU. Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules. New quieter design, simple to install, operate, and maintain. Made in the U.S.A.

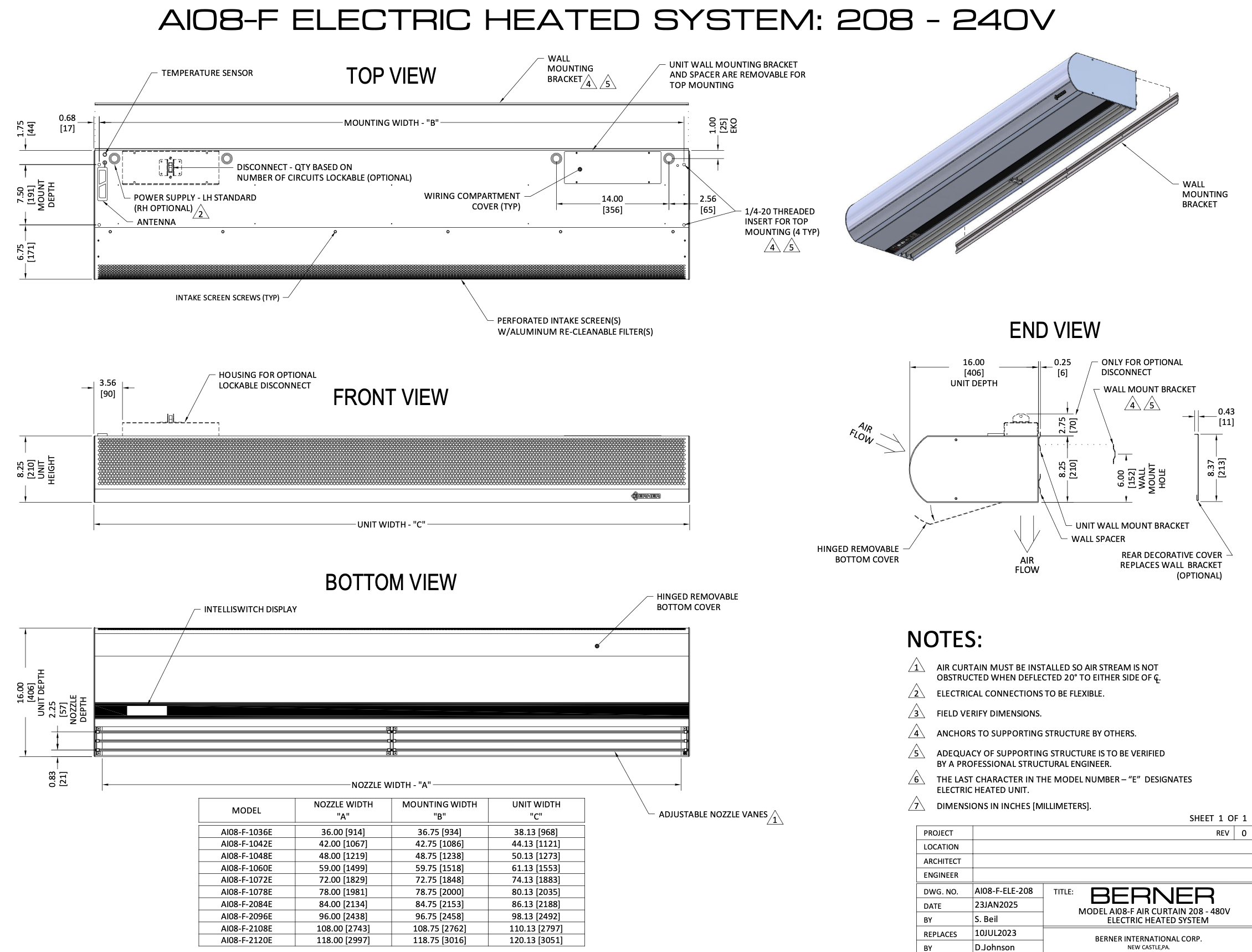

• 8 ¼” high x 16” deep, 1/5 hp motor(s) – ten speeds
• Includes NEW Intelliswitch™ digital controller – factory mounted or remote display, and Berner AIR® BASIC (Smart Control)

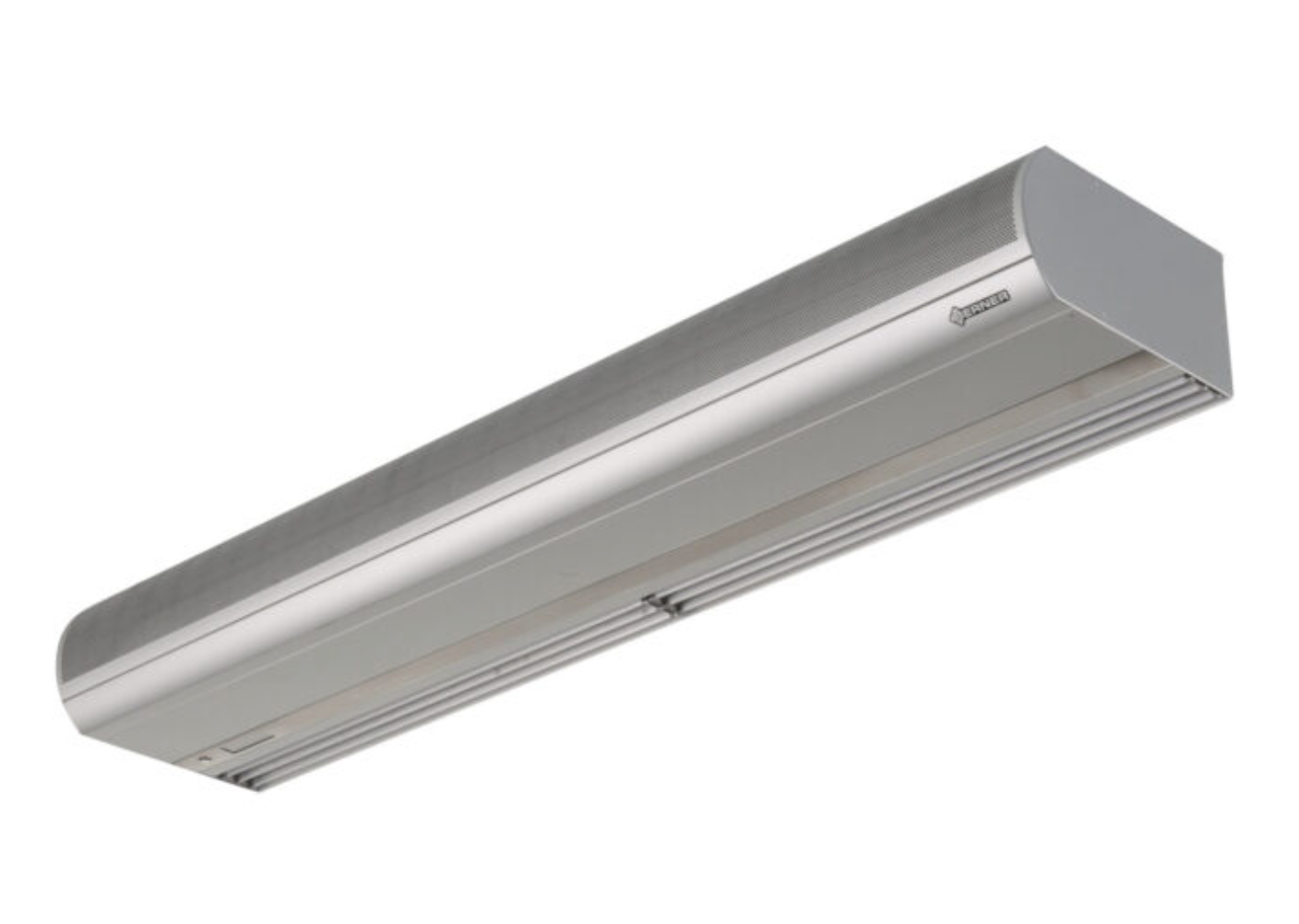

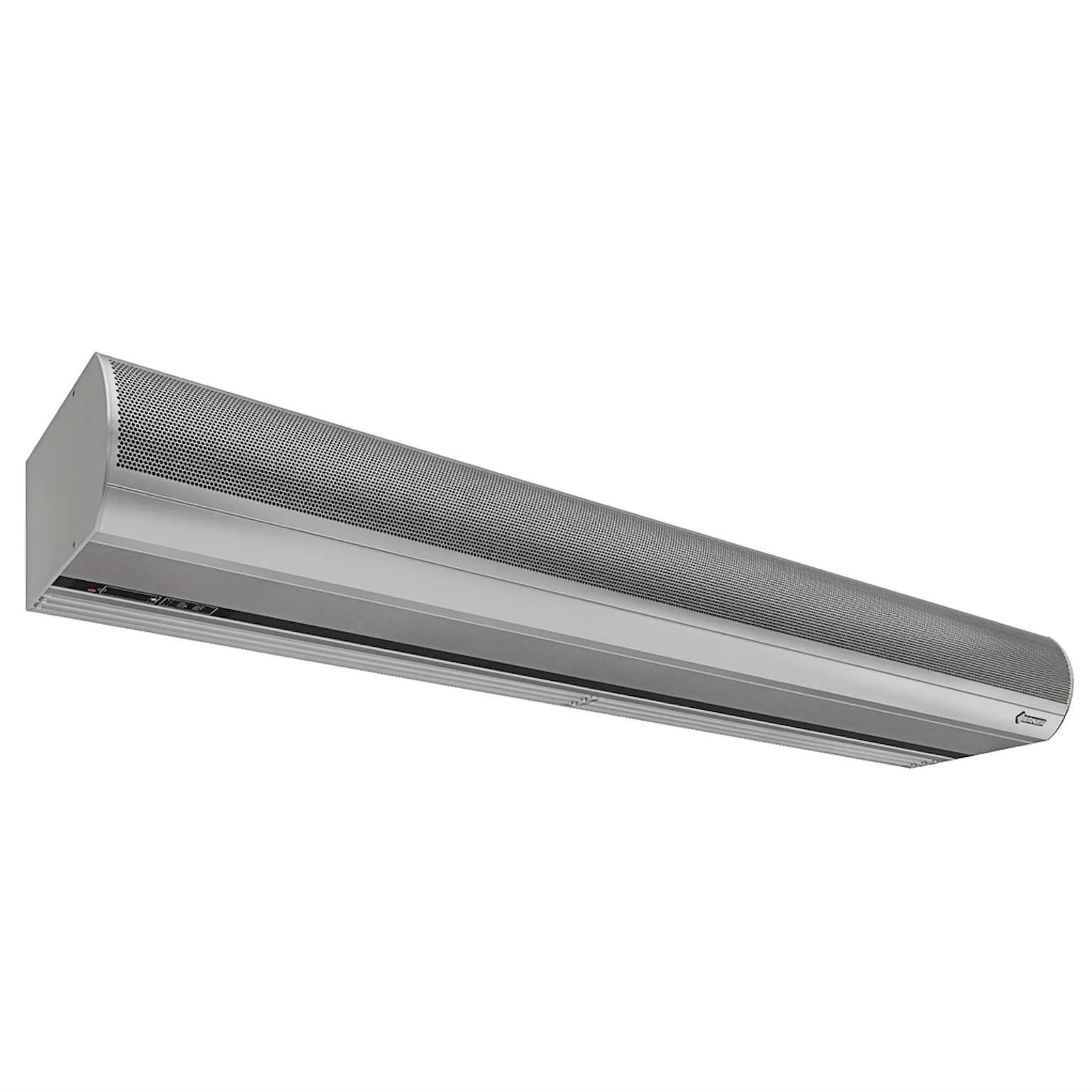

• Clear satin anodized aluminum exterior
• Wall or Top Mounting
• High efficiency, low noise, articulating, three vane, Pro-V Nozzle

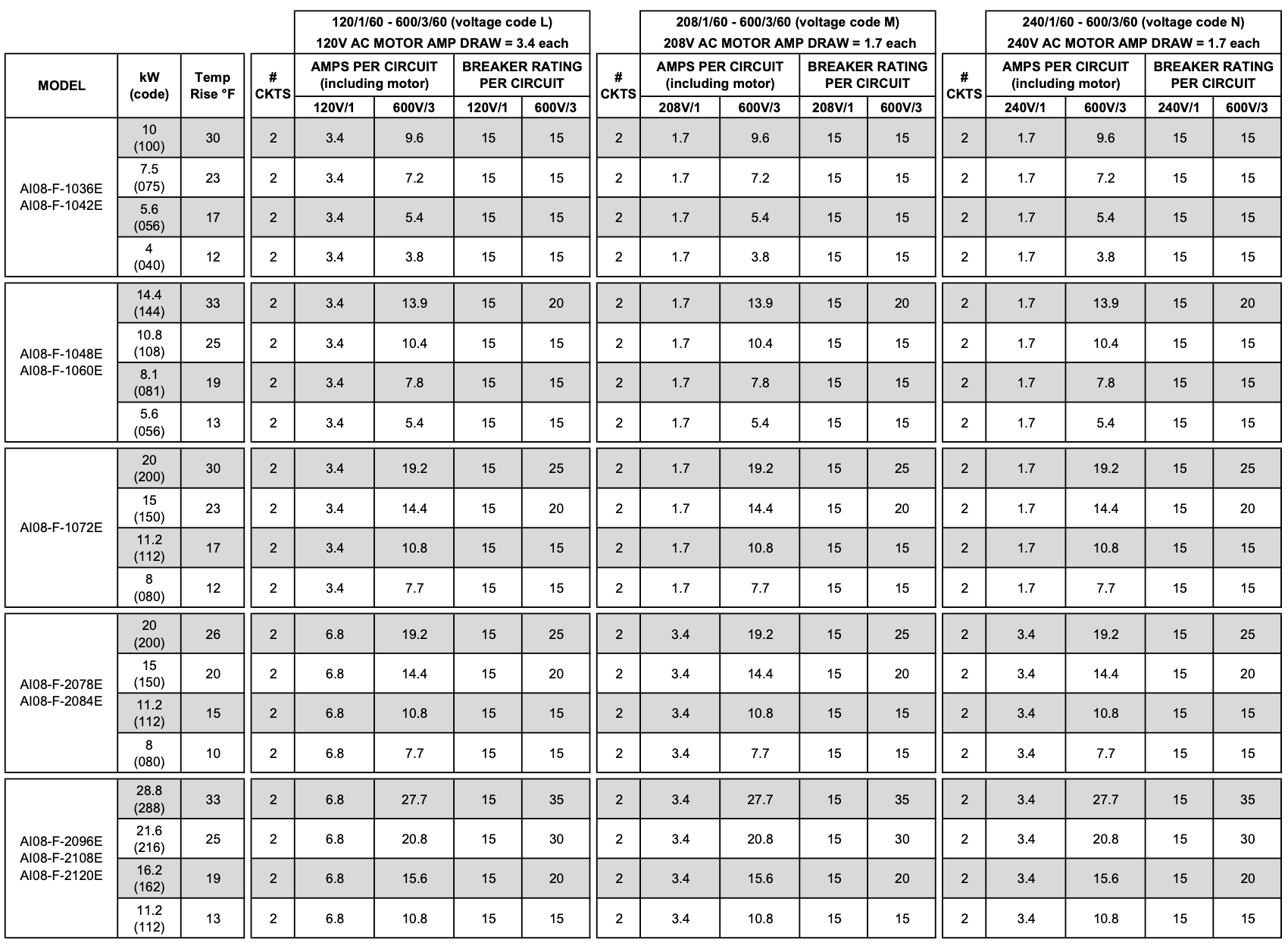

• Single stage electric heater (open element, alternate kW available
• Filter (washable)

AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, SINGLE PHASE)

• 36"   ---  120V, 208V, 240V
• 42"   ---  120V, 208V, 240V
• 48"   ---  120V, 208V, 240V
• 60"   ---  120V, 208V, 240V
• 72"   ---  120V, 208V, 240V
• 96"   ---  120V, 208V, 240V
• 120" ---  120V, 208V, 240V

SUPPORTING DOCUMENTS

• Installation & Maintenance Instructions (AI08 & AI10)
• Data Sheet Icon 8 Heated
• Brochure - Icon 8 & 10
• Intelliswitch Quick Start Guide
• Replacement Parts List/Diagram (AI08 & AI10)

OPTIONAL ADD-ON

• Berner 9503MRS1F2-NC-K Magnetic Reed Door Switch for automatic on/off with the door – wires to the Intelliswitch door-switch input (two for double doors).
