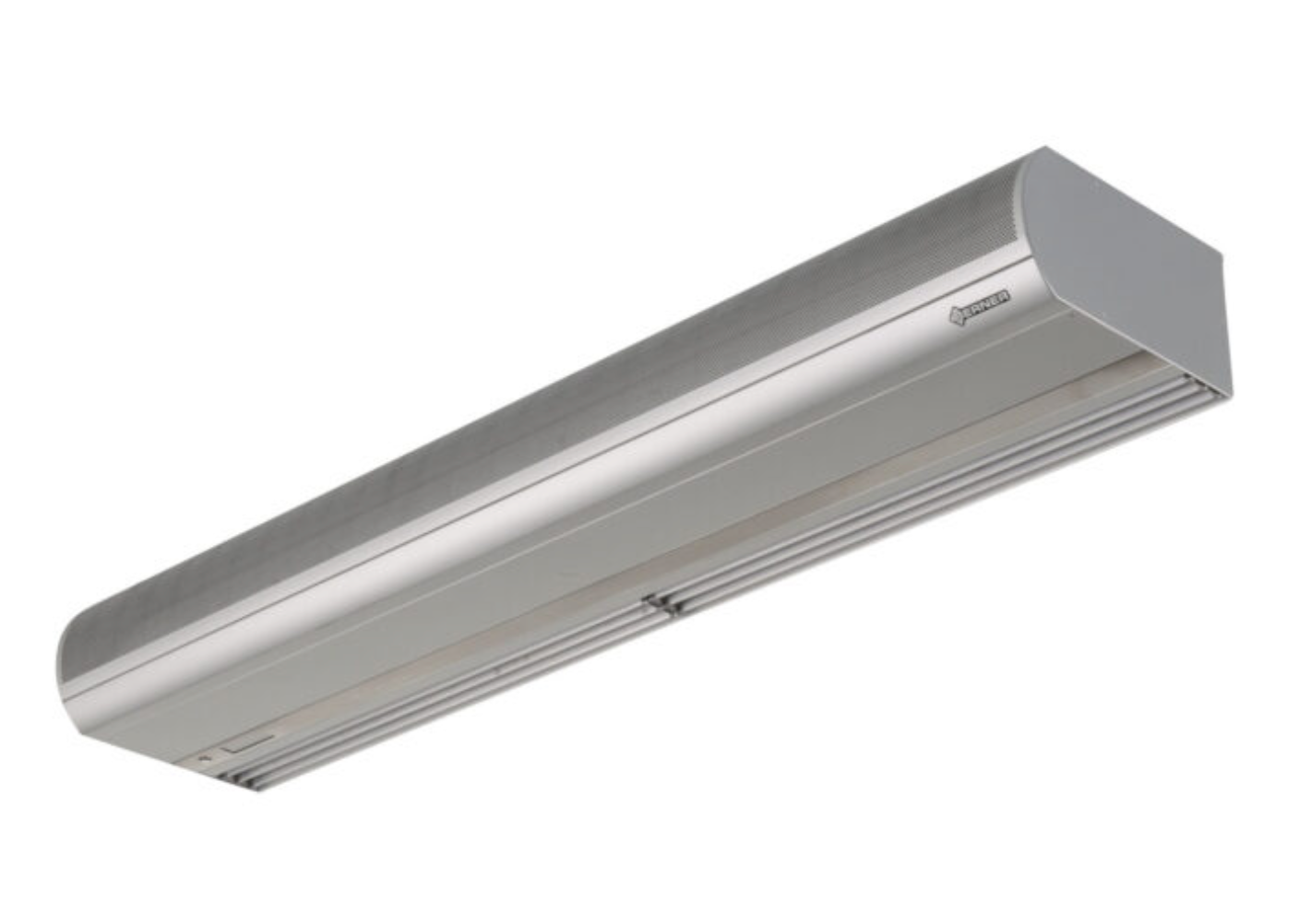

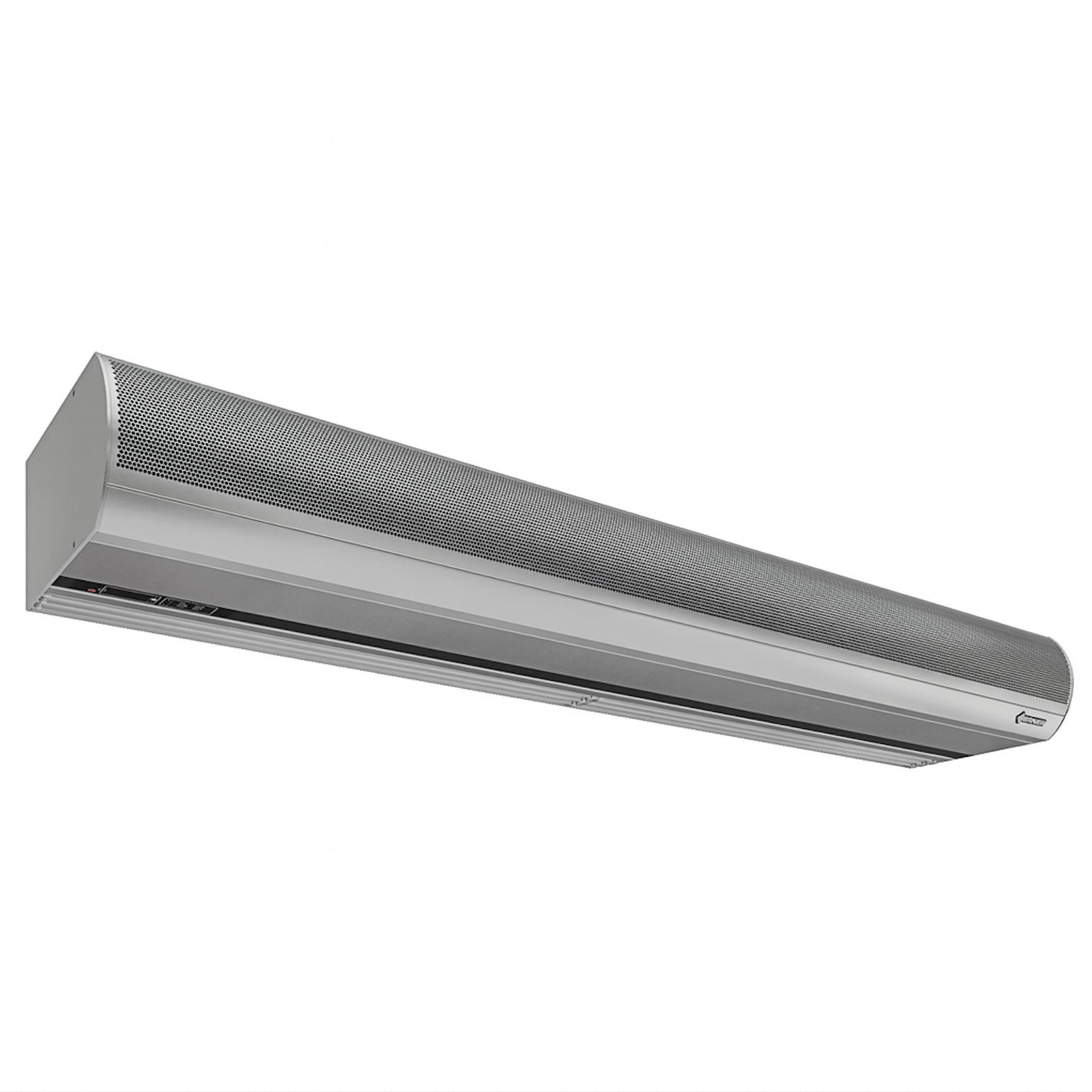

AI08-F-1048EJ - 48", Electric Heated, 240V, Single Phase, Aluminum, Berner Architectural Icon 8 Series
AI08 48", Electric Heated, 240V, Single Phase

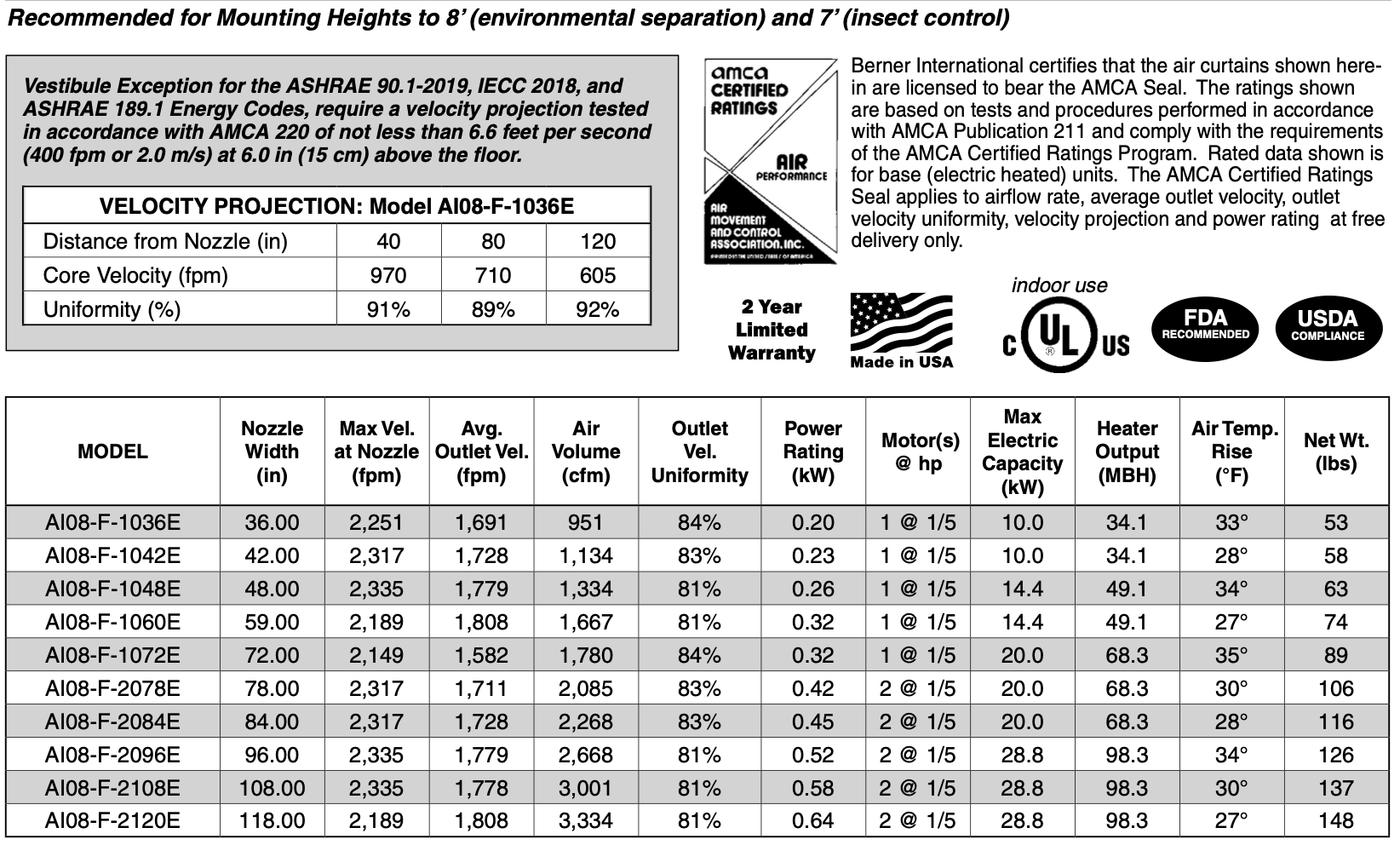

For mounting heights to 8′ (environmental separation) and 7′ (insect control). Includes the all new BERNER INTELLISWITCH™ and Berner AIR® smart control & app. Optional Berner AIR BMS Package available – allows full integration of the air curtain with the Building Management System via: BACnet-IP and BACnet-MS/TP AND Modbus-TCP and Modbus-RTU. Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules. New quieter design, simple to install, operate, and maintain. Made in the U.S.A.

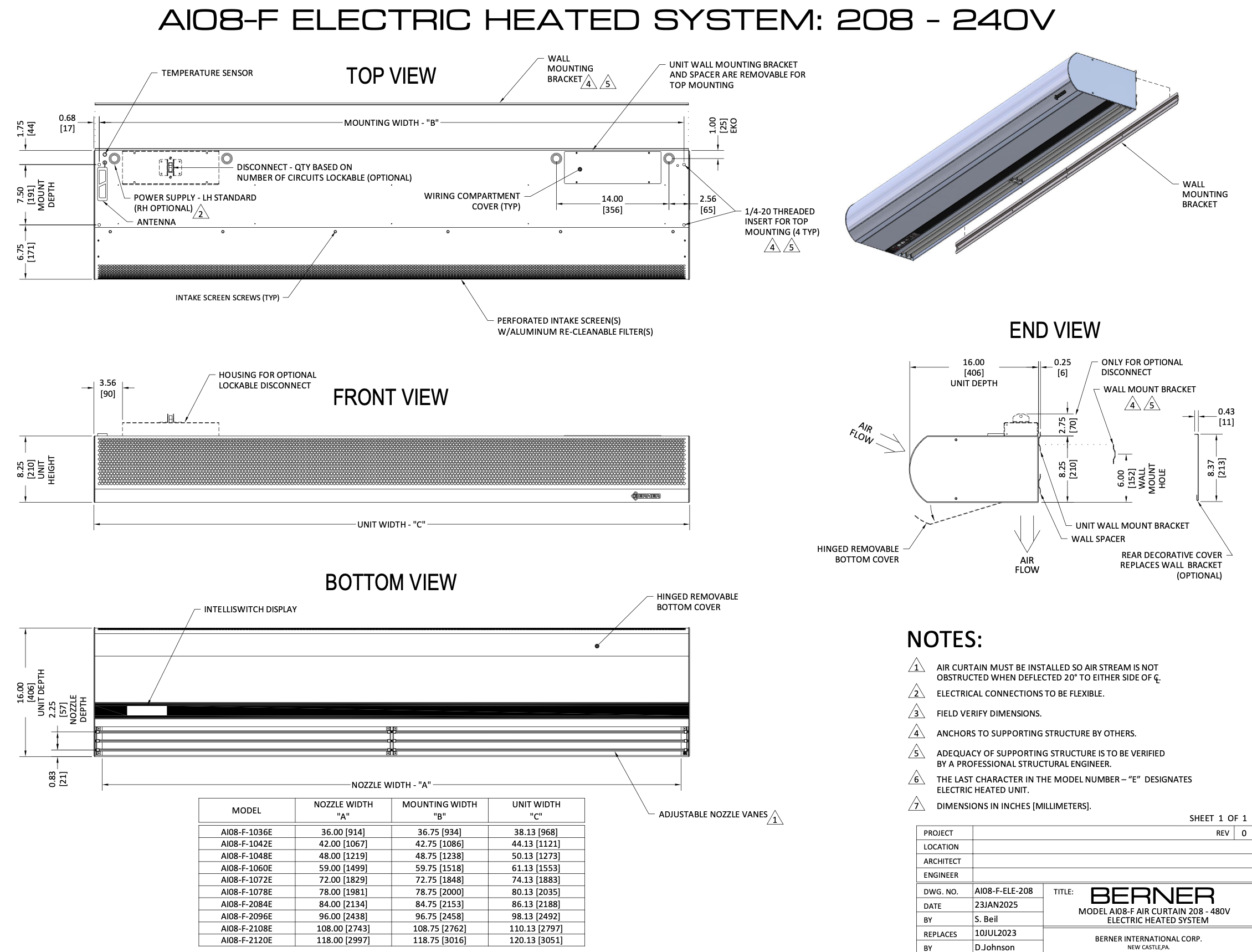

- 8 ¼” high x 16” deep, 1/5 hp motor(s) – ten speeds
- Includes NEW Intelliswitch™ digital controller – factory mounted or remote display, and Berner AIR® BASIC (Smart Control)
- Clear satin anodized aluminum exterior
- Wall or Top Mounting
- High efficiency, low noise, articulating, three vane, Pro-V Nozzle

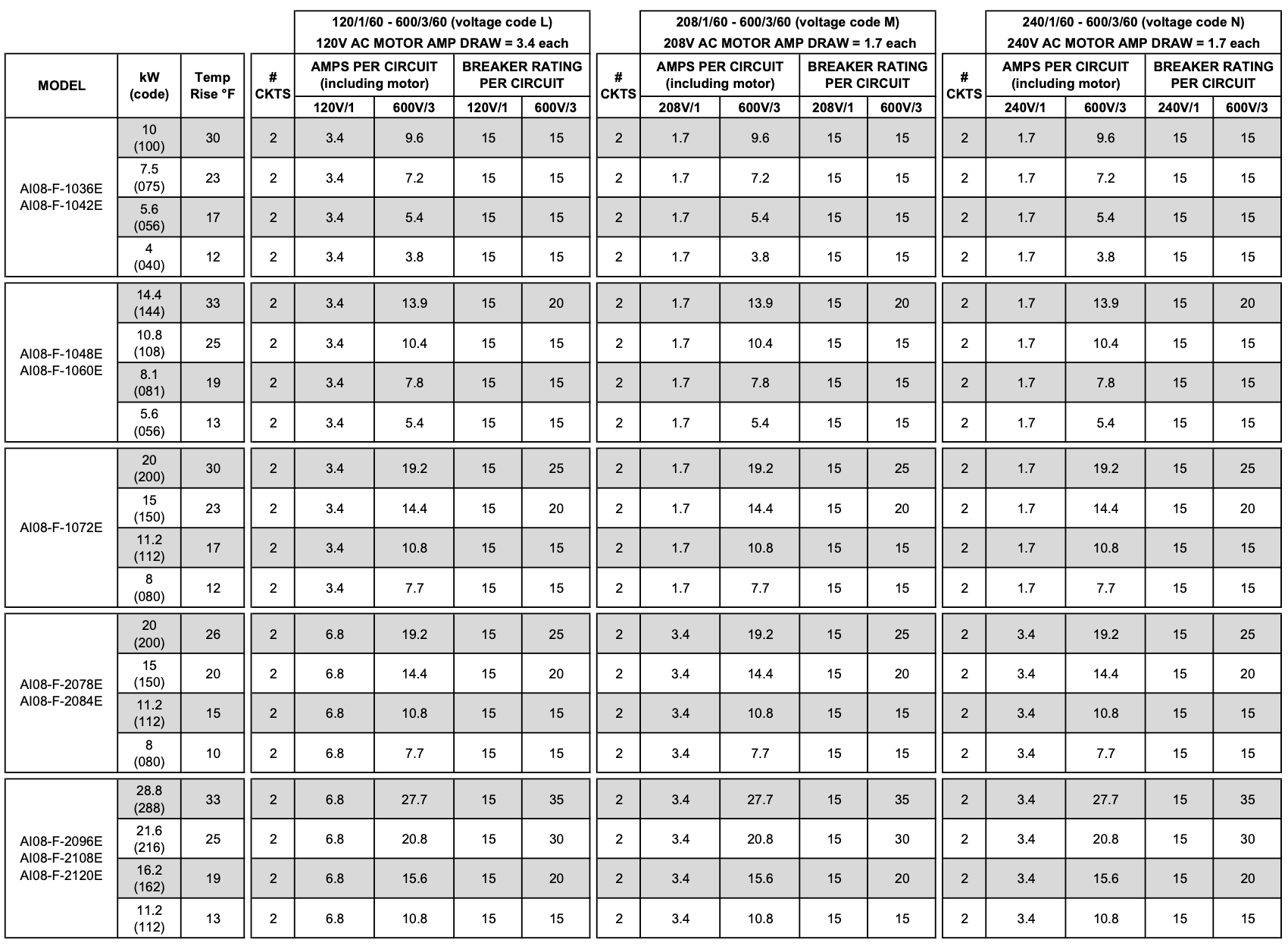

- Single stage electric heater (open element, alternate kW available
- Filter (washable)
AVAILABLE CONFIGURATIONS (ELECTRIC HEATED, SINGLE PHASE):
- 36" --- 120V, 208V, 240V
- 42" --- 120V, 208V, 240V
- 48" --- 120V, 208V, 240V
- 60" --- 120V, 208V, 240V
- 72" --- 120V, 208V, 240V
- 96" --- 120V, 208V, 240V
- 120" --- 120V, 208V, 240V
SUPPORTING DOCUMENTS:
