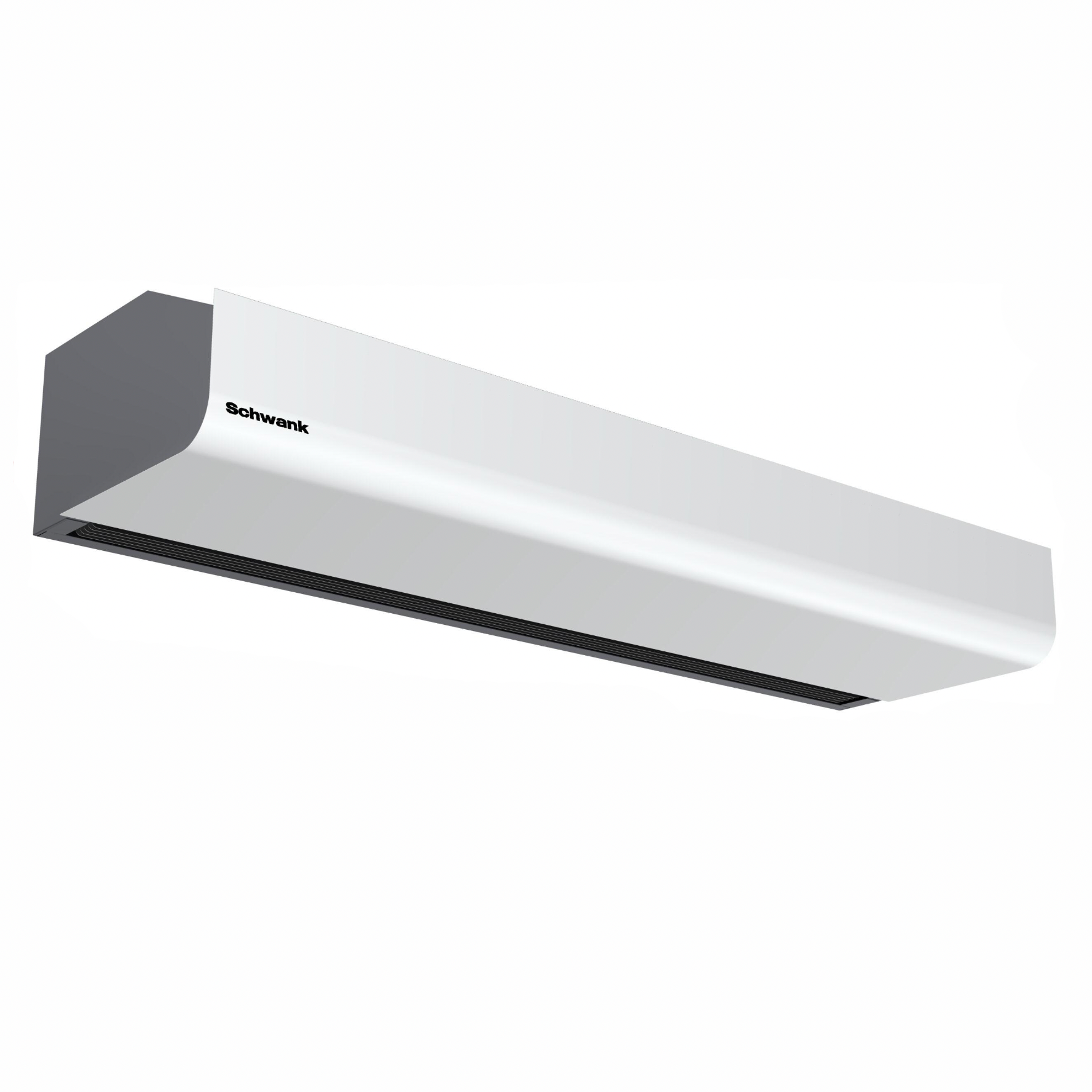

AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'
UPC | Type | Unit Length | Width | Height | Volts |
AC-KE60-20-1 | Electric Heat | 61.4" |
13.6" | 8.3" |
208V |
Phase | Amps (FLA) | Output (Kw) | cfm | dB | Max Height | lbs |
1 | 32 | 3.2/6.5 |
1,592 | 72 |
10' | 57 |

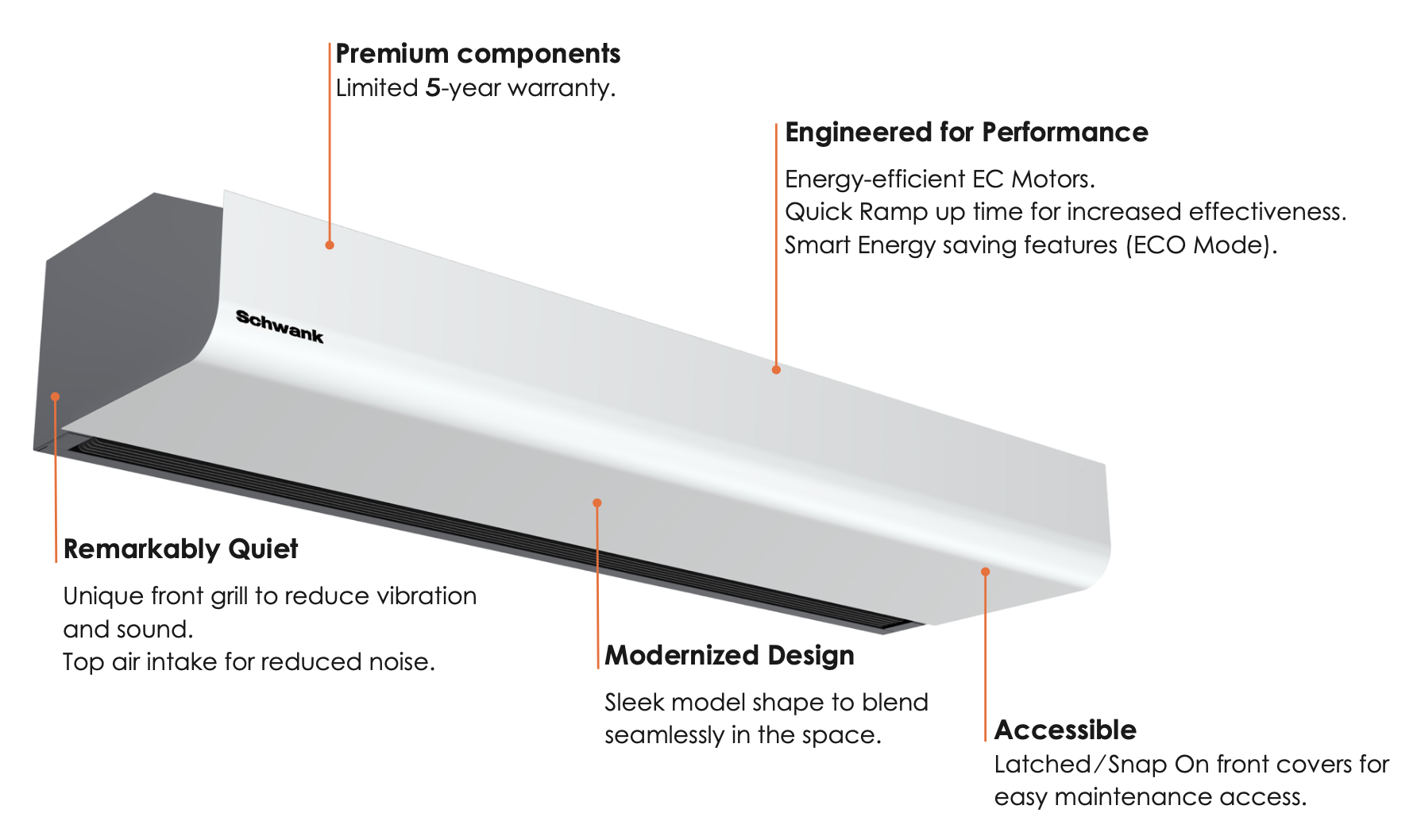

A stylish and efficient option for your entrances. Schwank Swift10 Series offers flexible mounting up to 10' in commercial entranceways with a sleek modern design to blend into your space. A high-efficiency EC Motor powers this air curtain and is available in electric heated and ambient models.
Supporting Documents
All Select10 Series Models
UPC | Type | Unit Length | Volts | Phase | Max Height |
AC-KA36-23 | Ambient | 41.3" | 230V | 1 | 10' |
AC-KE36-20 | Electric Heat | 41.3" | 208V | 3 | 10' |
AC-KE36-20-1 | Electric Heat | 41.3" | 208V | 1 | 10' |
AC-KE36-48 | Electric Heat | 41.3" | 480V | 3 | 10' |
AC-KE36-60 | Electric Heat | 41.3" | 600V | 3 | 10' |
AC-KA60-23 | Ambient | 61.4" | 230V | 1 | 10' |
AC-KE60-20 | Electric Heat | 61.4" | 208V | 3 | 10' |
AC-KE60-20-1 | Electric Heat | 61.4" | 208V | 1 | 10' |
AC-KE60-48 | Electric Heat | 61.4" | 480V | 3 | 10' |
AC-KE60-60 | Electric Heat | 61.4" | 600V | 3 | 10' |
AC-KA72-23 | Ambient | 80.7" | 230V | 1 | 10' |
AC-KE72-20 | Electric Heat | 80.7" | 208V | 3 | 10' |
AC-KE72-48 | Electric Heat | 80.7" | 480V | 3 | 10' |
AC-KE72-60 | Electric Heat | 80.7" | 600V | 3 | 10' |
Choose options
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/AC-KE60-20-60_SchwankSelect10_ElectricHeat_208V_ThreePhase_IP20_MaxHeight10.png?v=1699838272&width=1772)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/AC-KA36-23AirCurtain_3e5492b9-48bc-4bcc-ae8d-025a6ab05473.png?v=1699838272&width=1920)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/SchwankAirCurtainSelect10SerieswheretobuyshoponlinedirectshipUSACanada_7e184461-41c3-42b2-aab3-90ae3554c510.png?v=1699838272&width=1192)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/schwankselect10aircurtainfeatures_23626361-583d-4567-b483-827f7af5d0f4.png?v=1699838272&width=1784)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/SchwankAirCurtainSelect10Dimensionslengthwidthheightsize_26654459-90a7-48b7-b70f-fd67732a2fc0.png?v=1699838272&width=1686)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/SchwankAirCurtainSelect10MinimumDistanceInstallation_8b5f9912-cc28-4b6b-a1da-f71bc59ada9d.png?v=1699838272&width=1780)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/Select10SchwankAirCurtainMountingwithWallBrackets_6195decc-9d88-4fd8-beff-2df2f313d5d4.png?v=1699838272&width=1772)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/Select10SchwankAirCurtainOptionalAccessoriesRodsCeilingMountBarsBrackets_3ab78b09-993f-4a44-bcc5-14af93cd48d7.png?v=1699838272&width=1764)
![AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'](http://aircurtainsdirect.com/cdn/shop/files/SchwankAirCurtainSelect10SeriesWarranty_4869acb5-a6d0-4ad7-ad91-7b53f1fbc5ea.png?v=1699838272&width=1340)
AC-KE60-20-1 - 60" Schwank Select10, Electric Heat, 208V, Single Phase, IP20, Max Height 10'
Sale price$4,694.00 USD
