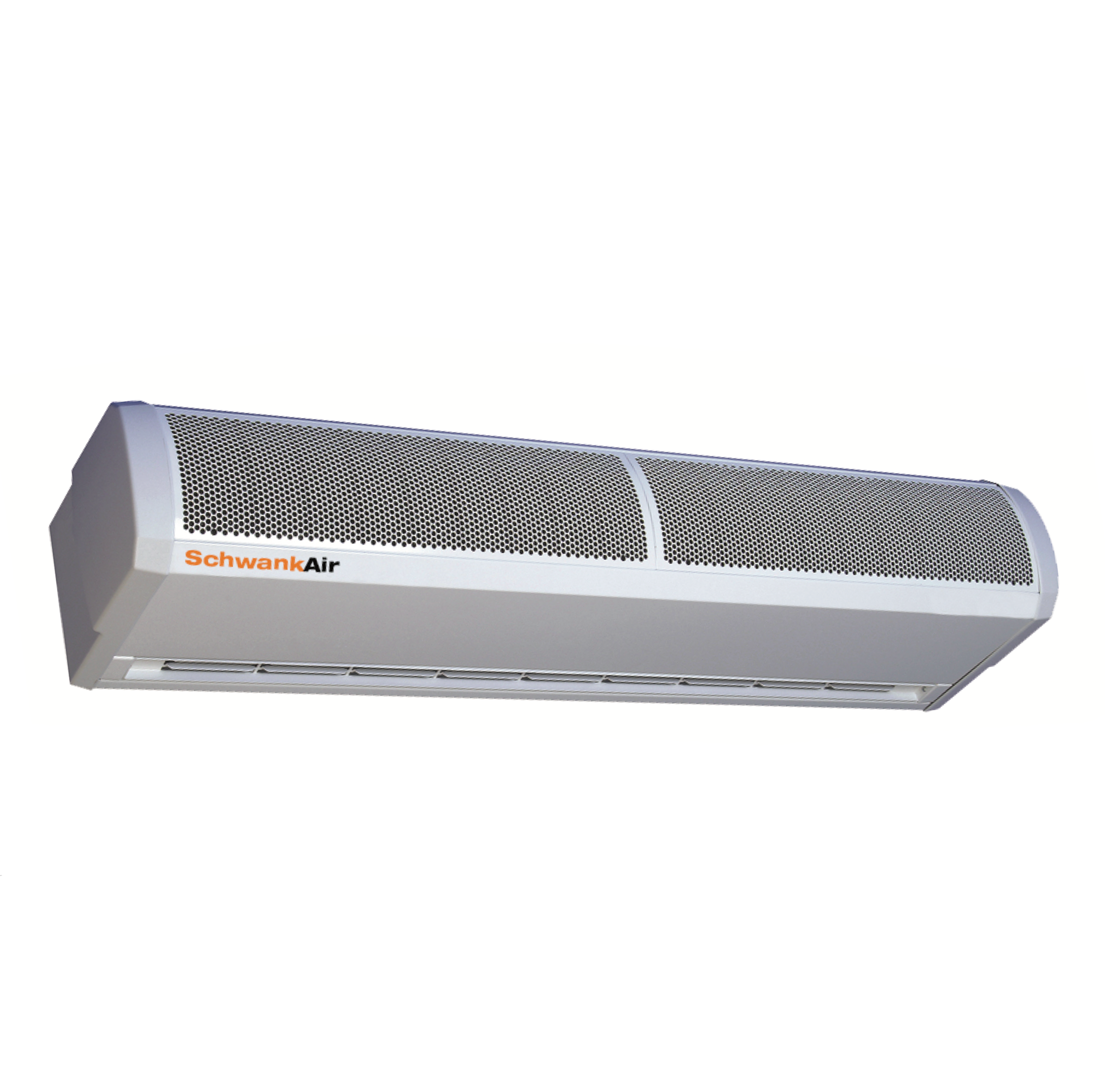

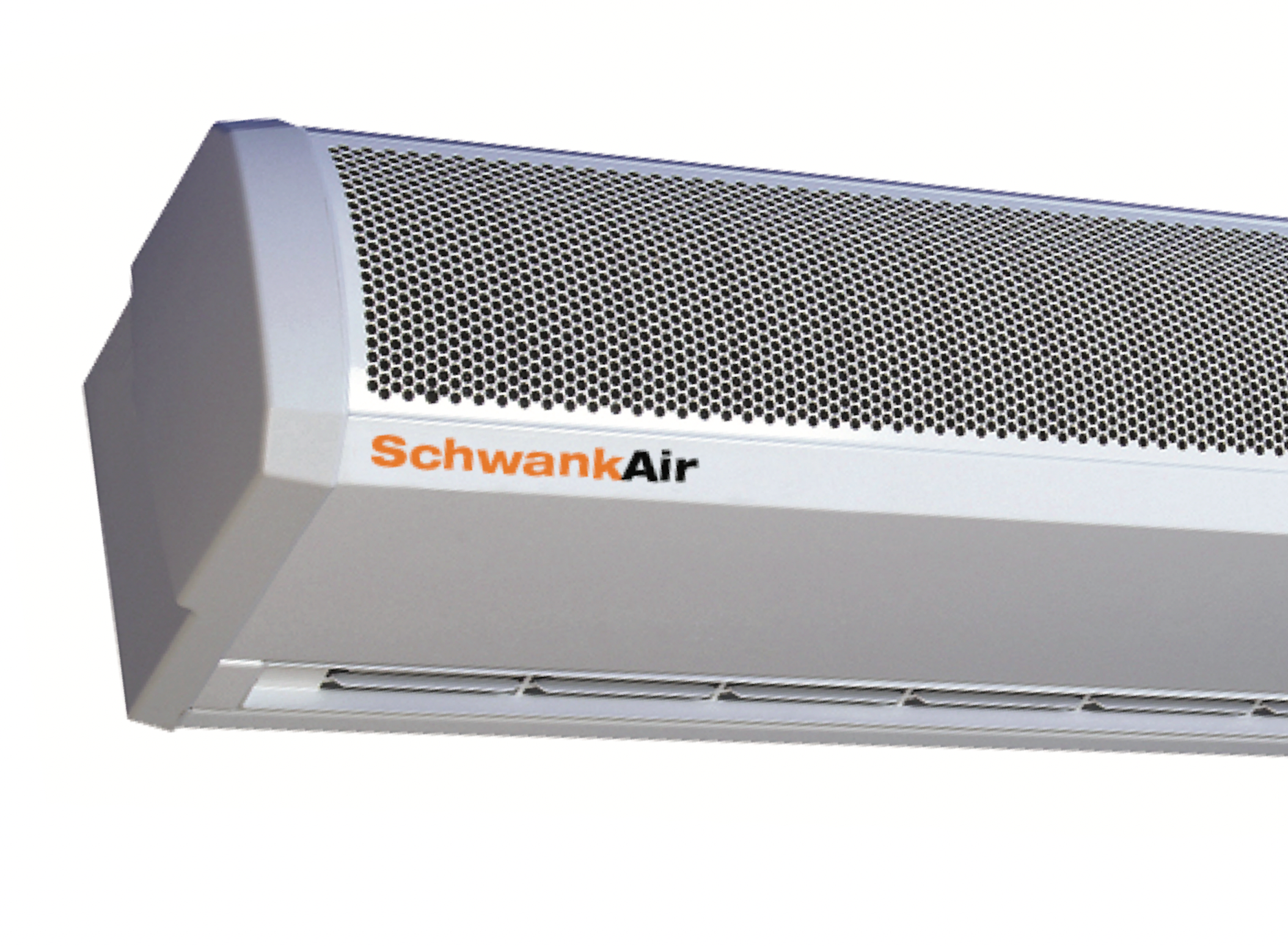

AC-CW45-23 - SchwankAir 2045WH Surface Mount, Hydronic/Water, 45'' Length, 240V, Single Phase

Sale price$4,249.00 USD

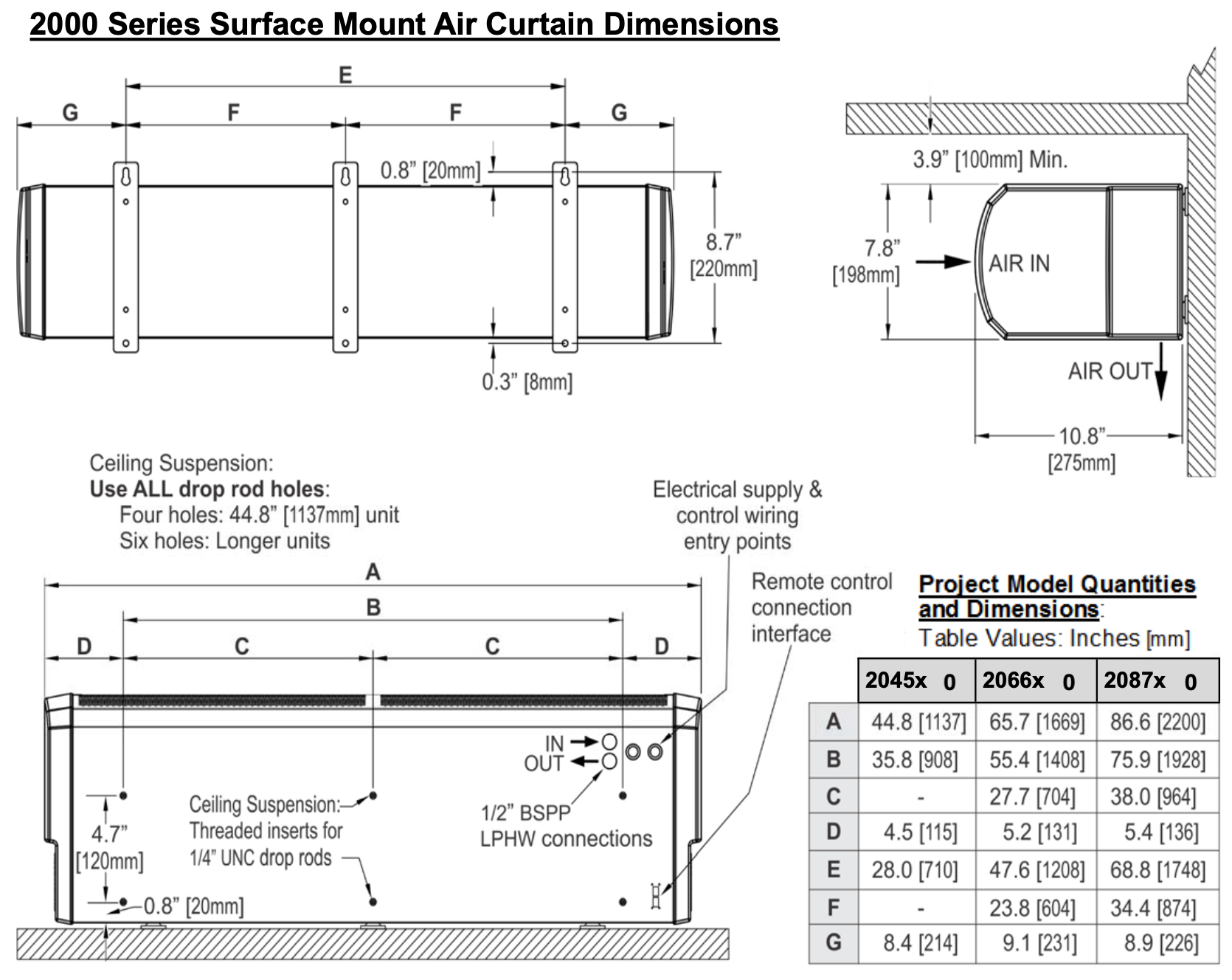

Model UPC Type Length Width Height Volts
2045WH AC-CW45-23 Hydronic 45" 8" 11" 240



Phase Hz Amps Kw btu/h m3/h cfm dB Max Height lbs
1 60 0.5 3 / 6 10.2k/20.5k 1180 700 55 9' 10" 40

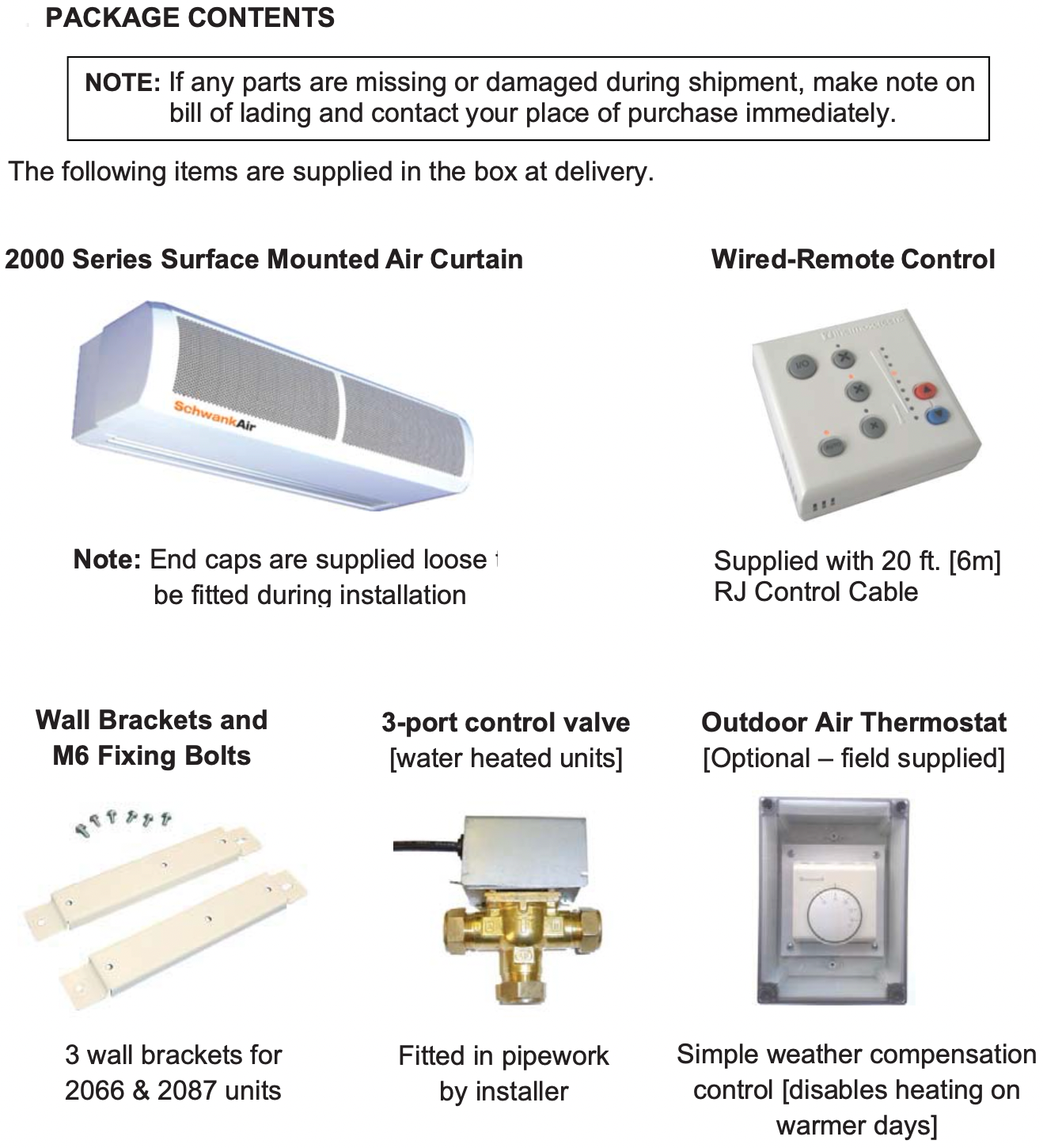

Key Features: Intelligent control with easy integration with BMS. Wired controller and door switch are included. Easy to install, with wall brackets and ceiling mounting points supplied for surface mount units, or choose an optional recessed air curtain model. Available in 208V, 240V, 480V, and 600V; ambient, electric heated, and hydronic/water; and length options include 45″, 66″, 87″ (see all 2000 Series Models in chart below).

Supporting Documents

  • Brochure
  • Manual (Surface Mount Models)
  • Submittal (Surface Mount Models)

      • All Models (2000 Series)

      Model UPC Type Length (") Volts Phase
      2045 AC-CA45-23 Ambient 45 240 1
      2045EH AC-CE45-20 Electric 45 208 3
      2045EH AC-CE45-48 Electric 45 480 3
      2045EH AC-CE45-60 Electric 45 600 3
      2045WH AC-CW45-23 Hydronic 45 240 1
      2047R AC-CA47-23-R Ambient 47 240 1
      2047EHR AC-CE47-20-R Electric 47 208 3
      2047EHR AC-CE47-48-R Electric 47 480 3
      2047EHR AC-CE47-60-R Electric 47 600 3
      2047WHR AC-CW47-23-R Hydronic 47 240 1
      2063R AC-CA63-23-R Ambient 63 240 1
      2063EHR AC-CE63-20-R Electric 63 208 3
      2063EHR AC-CE63-48-R Electric 63 480 3
      2063EHR AC-CE63-60-R Electric 63 600 3
      2063WHR AC-CW63-23-R Hydronic 63 240 1
      2066 AC-CA66-23 Ambient 66 240 1
      2066EH AC-CE66-20 Electric 66 208 3
      2066EH AC-CE66-48 Electric 66 480 3
      2066EH AC-CE66-60 Electric 66 600 3
      2066WH AC-CW66-23 Hydronic 66 240 1
      2083R AC-CA83-23-R Ambient 83 240 1
      2083EHR AC-CE83-20-R Electric 83 208 3
      2083EHR AC-CE83-48-R Electric 83 480 3
      2083EHR AC-CE83-60-R Electric 83 600 3
      2083WHR AC-CW83-23-R Hydronic 83 240 1
      2087 AC-CA87-23 Ambient 87 240 1
      2087EH AC-CE87-20 Electric 87 208 3
      2087EH AC-CE87-48 Electric 87 480 3
      2087EH AC-CE87-60 Electric 87 600 3
      2087WH AC-CW87-23 Hydronic 87 240 1
