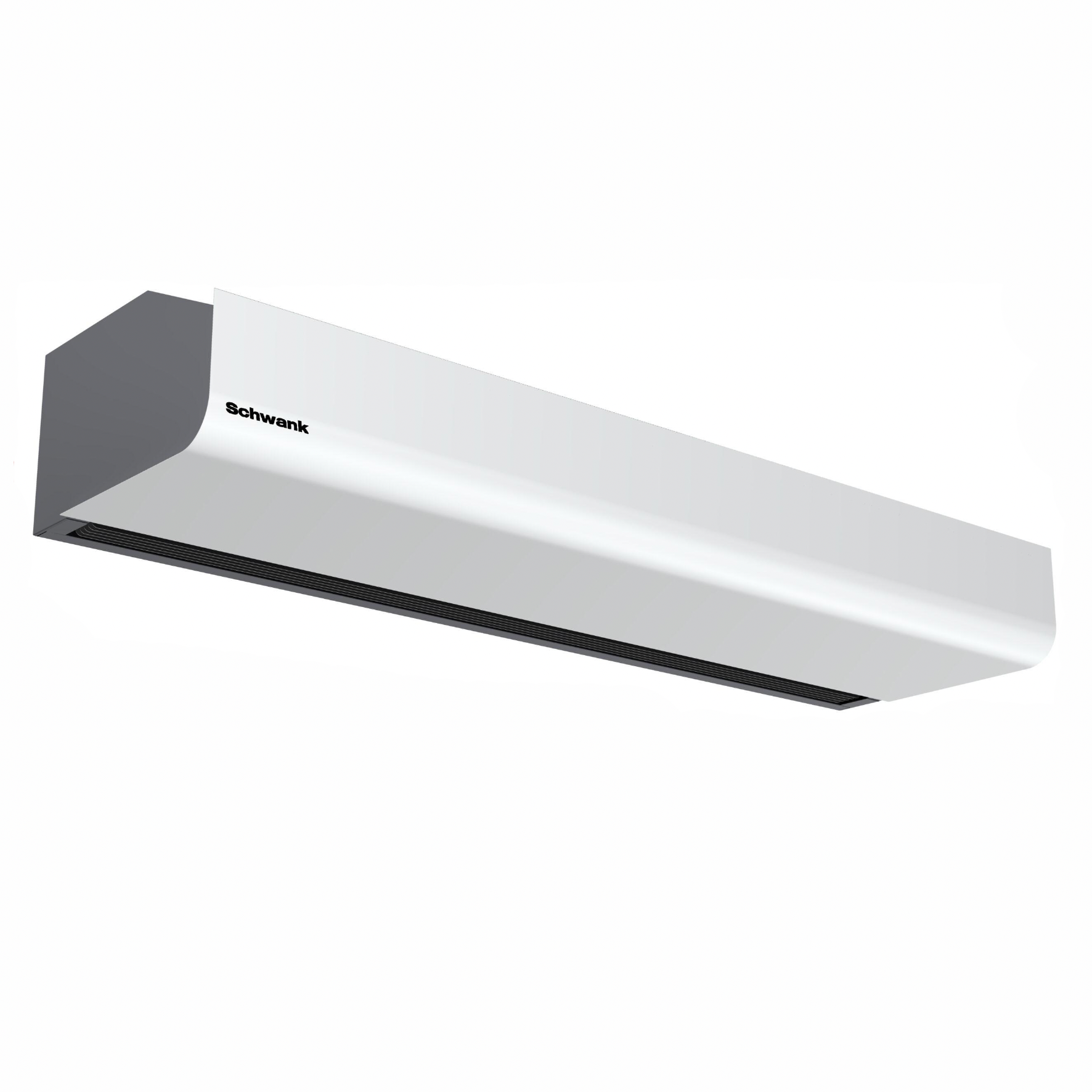

AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'
Schwank

AC-KE72-60 - 72" Schwank Select10, Electric Heat, 600V, Three Phase, IP20, Max Height 10'

Sale price$8,125.00 USD
UPC Type Unit Length Width Height Volts
AC-KE72-60 Electric Heat 80.7" 13.6" 8.3" 600V



Phase Amps (FLA) Output (Kw) cfm dB Max Height lbs
3 10.6 5.0/10.0       1,875 73
 10' 79

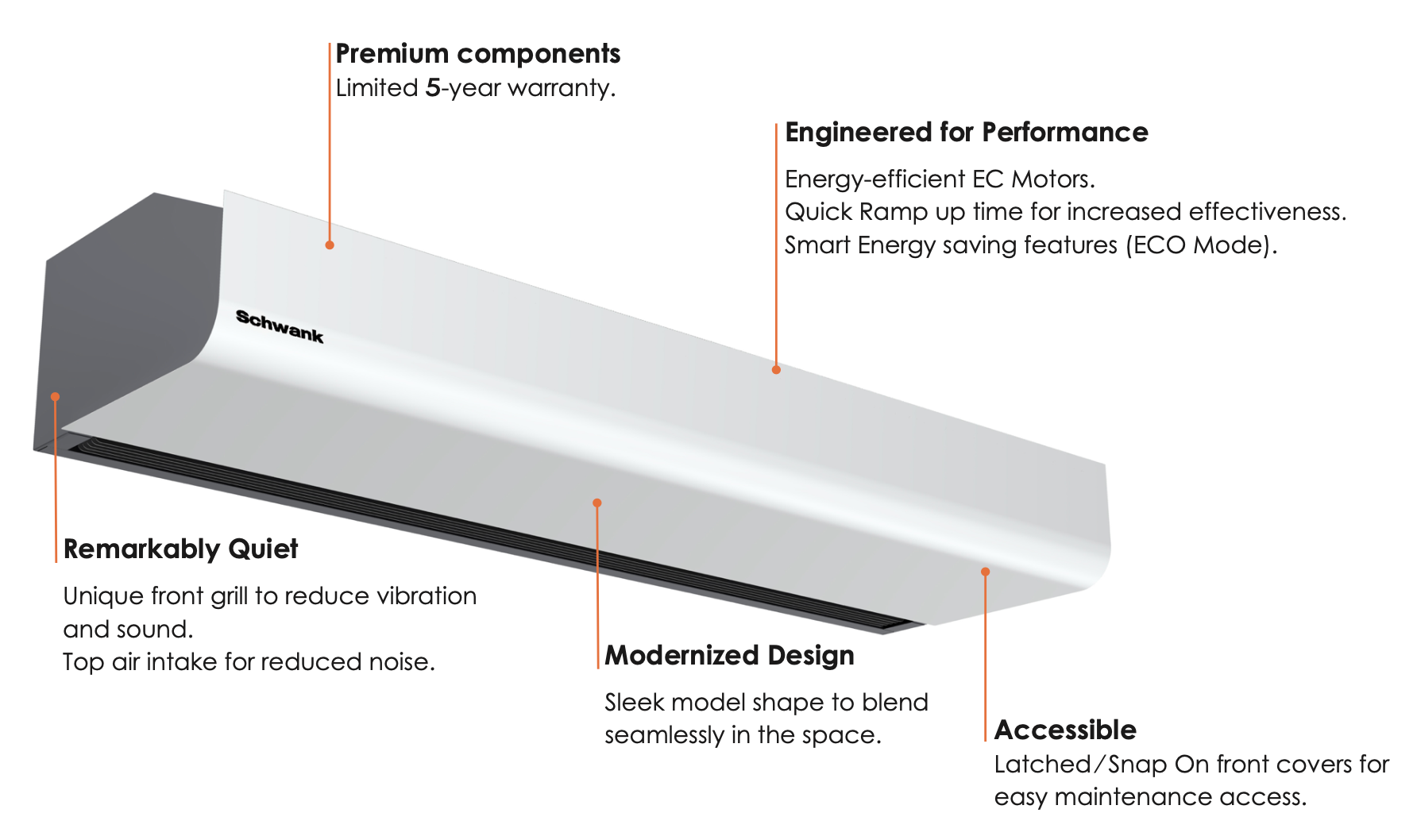

A stylish and efficient option for your entrances. Schwank Swift10 Series offers flexible mounting up to 10' in commercial entranceways with a sleek modern design to blend into your space. A high-efficiency EC Motor powers this air curtain and is available in electric heated and ambient models.

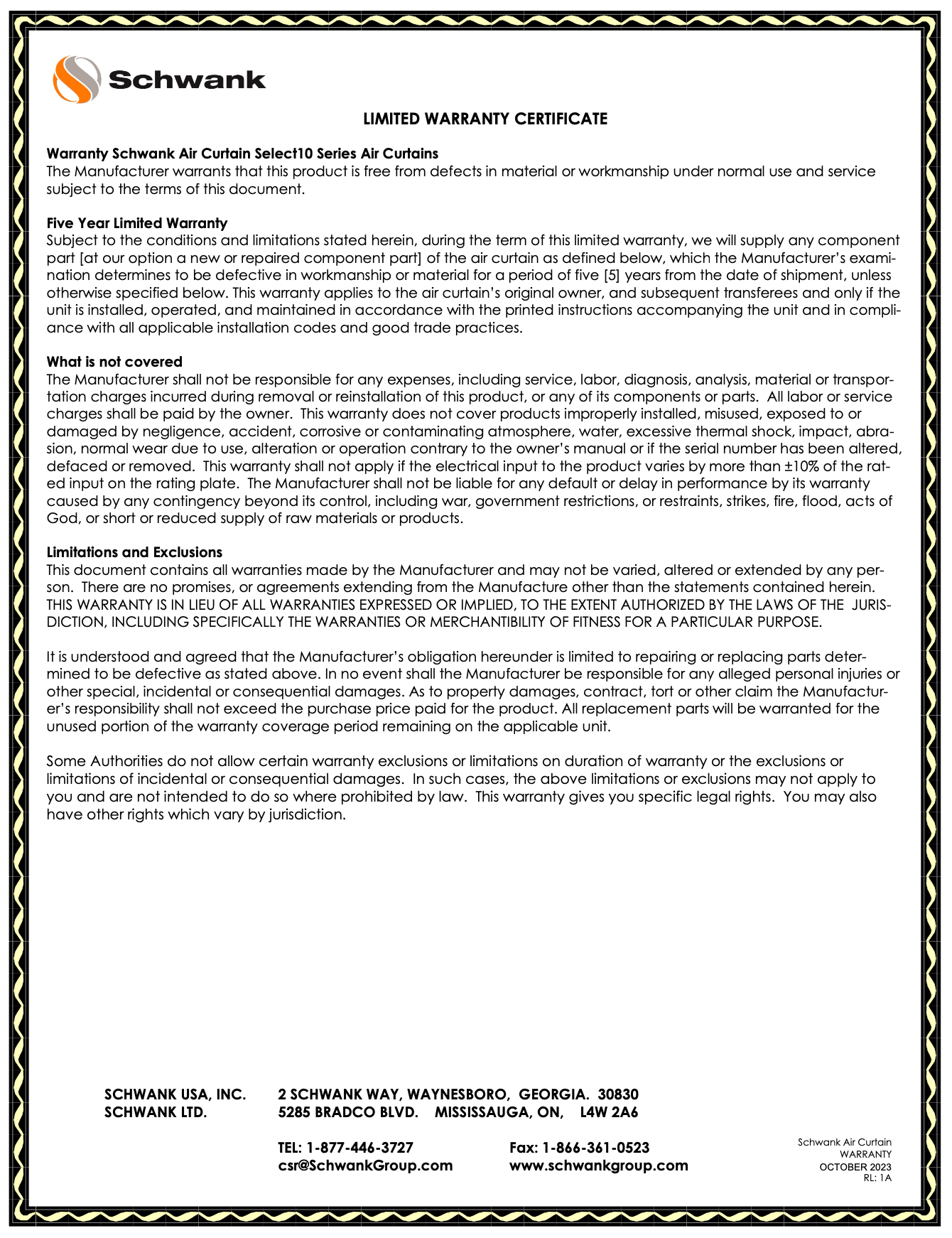

Supporting Documents

    All Select10 Series Models

    UPC Type Unit Length Volts Phase Max Height
    AC-KA36-23 Ambient 41.3" 230V 1 10'
    AC-KE36-20 Electric Heat 41.3" 208V 3 10'
    AC-KE36-20-1 Electric Heat 41.3" 208V 1 10'
    AC-KE36-48 Electric Heat 41.3" 480V 3 10'
    AC-KE36-60 Electric Heat 41.3" 600V 3 10'
    AC-KA60-23 Ambient 61.4" 230V 1 10'
    AC-KE60-20 Electric Heat 61.4" 208V 3 10'
    AC-KE60-20-1 Electric Heat 61.4" 208V 1 10'
    AC-KE60-48 Electric Heat 61.4" 480V 3 10'
    AC-KE60-60 Electric Heat 61.4" 600V 3 10'
    AC-KA72-23 Ambient 80.7" 230V 1 10'
    AC-KE72-20 Electric Heat 80.7" 208V 3 10'
    AC-KE72-48 Electric Heat 80.7" 480V 3 10'
    AC-KE72-60 Electric Heat 80.7" 600V 3 10'
